Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
DPC-20-500 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,262	10.31	- + RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 1A, Series 500mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DPC-28-360 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,695	10.31	- + RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 720mA, Series 360mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DP-241-5-48 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	1,693	10.31	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	48V	250mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms
DP-241-5-56 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,378	10.31	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	56V	220mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms
DPC-10-1000 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,814	10.31	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DPC-120-85 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,937	10.31	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 170mA, Series 85mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DPC-56-180 PWR XFMR LAMINATED 10VA TH Signal Transformer	1,241	10.31	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 360mA, Series 180mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms

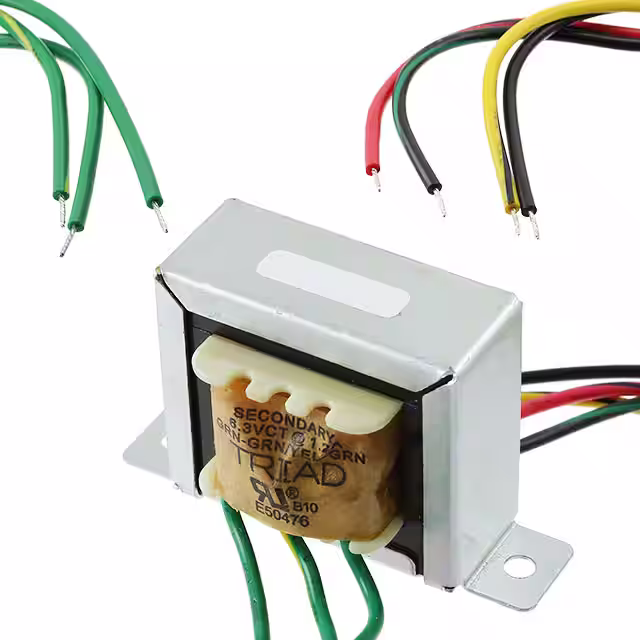

F-314X PWR XFMR LAMINATED 7.56VA CHAS Triad Magnetics	4,396	10.37	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	6.3V	1.2A	Dual	Single	Yes	7.56VA	Chassis Mount	PC Pin	71.45mm L x 41.28mm W	41.28mm	2500Vrms
241-5-10L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	1,259	10.38	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	10V	1.2A	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-120L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	4,107	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	120V	100mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-12L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,758	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-16L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	1,471	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	16V	800mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-20L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,079	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	20V	600mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-24L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	1,983	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	24V	500mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-28L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,679	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	28V	420mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-36L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,446	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	36V	350mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-48L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	1,192	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	250mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-56L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,625	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	220mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
DP-241-4-10L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	4,547	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	10V	600mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-16L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	1,861	10.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	16V	400mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
