Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
PC-40-110 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	6,545	9.00	- + RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 220mA, Series 110mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
DPC-56-20 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	5,022	9.00	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 40mA, Series 20mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
PC-10-440 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	5,476	9.00	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 880mA, Series 440mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
PC-56-80 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	7,314	9.00	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 160mA, Series 80mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
PC-120-85 PWR XFMR LAMINATED 10VA TH Signal Transformer	5,143	9.19	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 170mA, Series 85mA	Single	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
F-3132P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	8,773	9.19	- + RFQ	Datasheet	Box	Dual Primary	Active	Laminated Core	115V, 230V	Parallel 7.5V, Series 15V	Parallel 200mA, Series 100mA	Dual	Dual	No	1.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	28.58mm	1500Vrms
241-4-16L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	8,437	9.26	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	16V	400mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-24L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	5,868	9.26	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	24V	250mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-28L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	9,030	9.26	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	28V	200mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-36L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	7,544	9.26	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	36V	170mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-48L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	5,631	9.26	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	125mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-56L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	5,525	9.26	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	110mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-20 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	5,730	9.31	- + RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	20V	300mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-36 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	7,078	9.31	- + RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	36V	170mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-28 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	8,198	9.31	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	28V	200mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-48 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	9,758	9.31	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	48V	125mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-56 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	9,198	9.31	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	56V	110mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
VPP12-400-B PWR XFMR LAMINATED 5VA TH Triad Magnetics	6,716	9.37	- + RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 800mA, Series 400mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
241-4-10L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	5,987	9.41	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	10V	600mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms

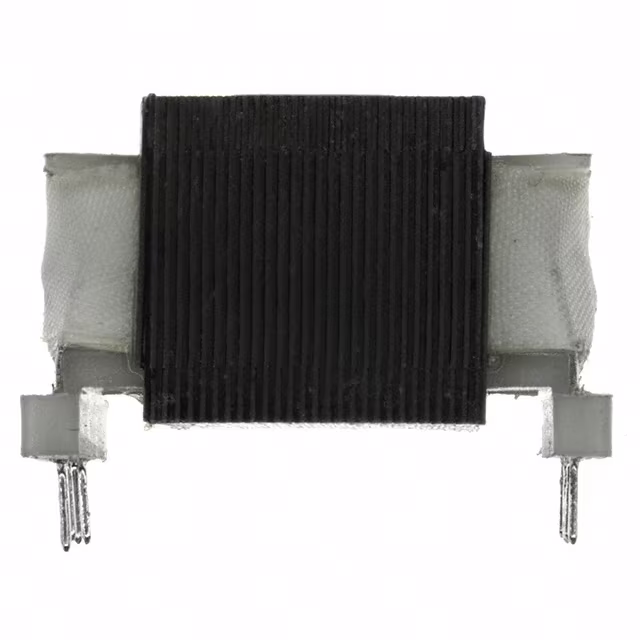

DPC-16-55 PWR XFMR LAMINATED 1VA TH Signal Transformer	9,785	9.42	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 110mA, Series 55mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
