Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FP10-1200-B PWR XFMR LAMINATED 12VA TH Triad Magnetics	4,559	11.12	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP16-750-B PWR XFMR LAMINATED 12VA TH Triad Magnetics	1,572	11.12	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.5A, Series 750mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP34-340-B PWR XFMR LAMINATED 12VA TH Triad Magnetics	1,185	11.12	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 680mA, Series 340mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP56-200-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	4,207	11.12	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 400mA, Series 200mA	Dual	Dual	No	6VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms

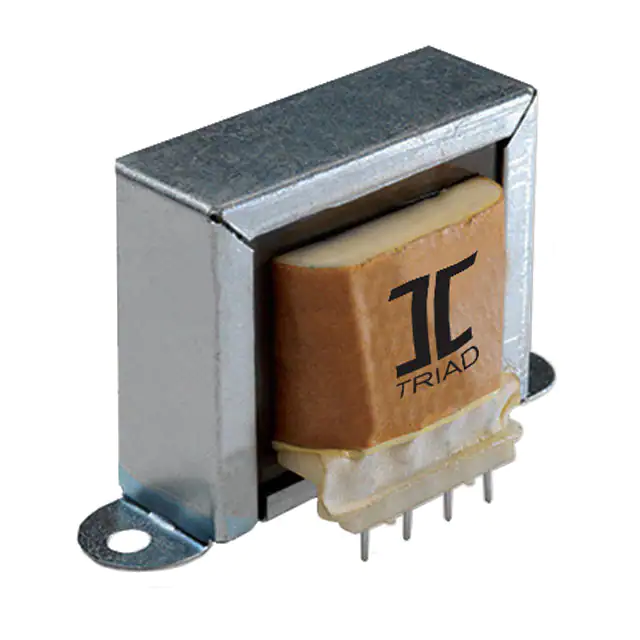

F-168XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	4,483	11.12	- + RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 15V, Series 32V	Parallel 195mA, Series 50mA	Single	Dual	Yes	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.45mm	1500Vrms
FS120-05 PWR XFMR LAMINATED 6VA TH Triad Magnetics	4,794	11.14	- + RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 100mA, Series 50mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS48-125 PWR XFMR LAMINATED 6VA TH Triad Magnetics	1,521	11.14	- + RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 250mA, Series 125mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS56-110 PWR XFMR LAMINATED 6VA TH Triad Magnetics	4,222	11.14	- + RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 220mA, Series 110mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS10-2000-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,549	11.20	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FS16-1250-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	4,079	11.20	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FS28-700-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	4,749	11.20	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.4A, Series 700mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FS36-550-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,510	11.20	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.1A, Series 550mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FS56-350-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	1,300	11.20	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 700mA, Series 350mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms

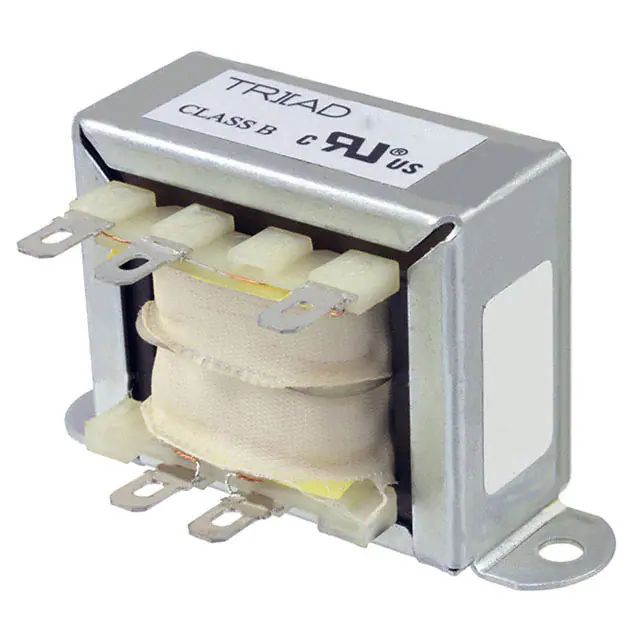

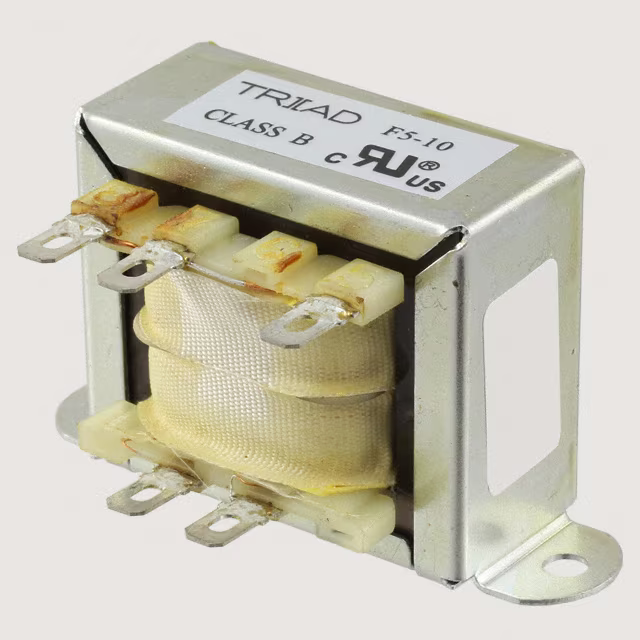

F5-10 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	1,973	11.24	- + RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	10V	1.2A	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

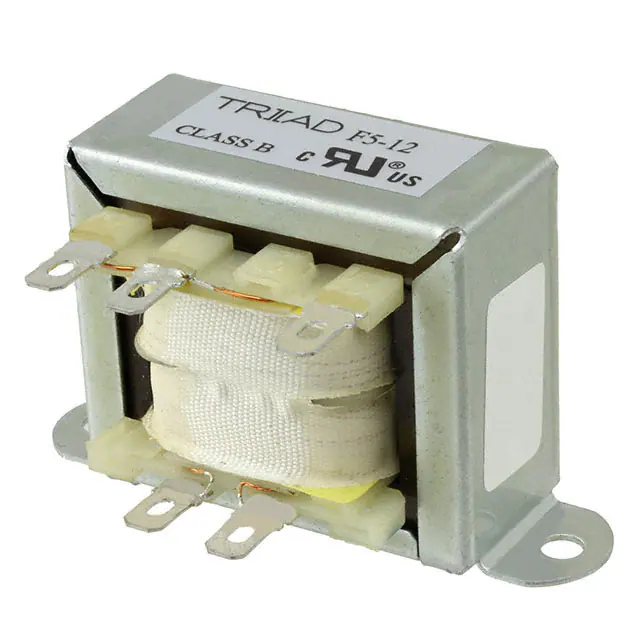

F5-12 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	4,964	11.35	- + RFQ	Datasheet	Bulk,Bulk	Quick Pack	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
F5-120 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	1,901	11.24	- + RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	120V	100mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

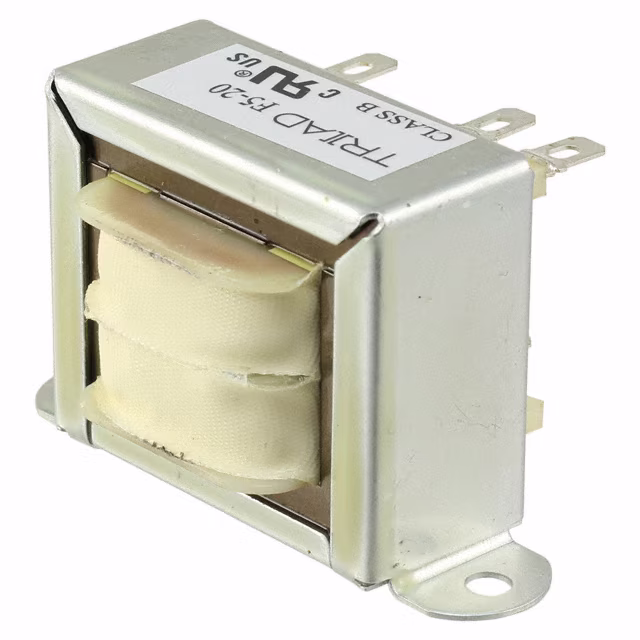

F5-20 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	1,615	11.24	- + RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	20V	600mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

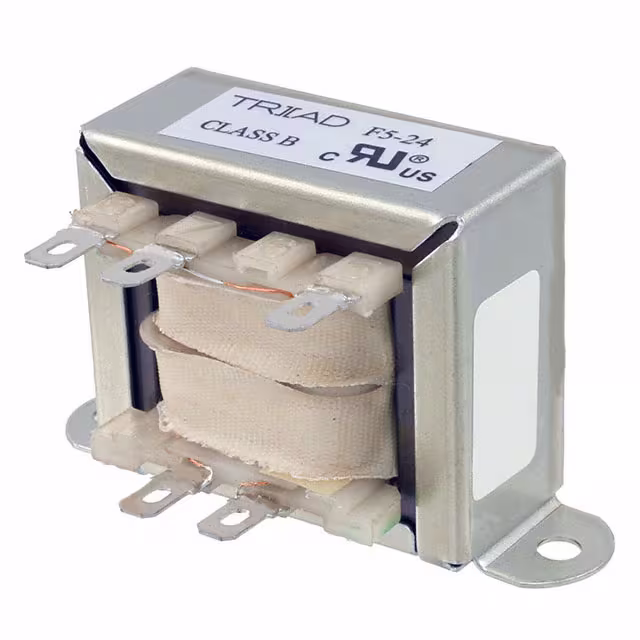

F5-24 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	1,370	11.24	- + RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	24V	500mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
F5-28 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	1,009	11.24	- + RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	28V	420mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

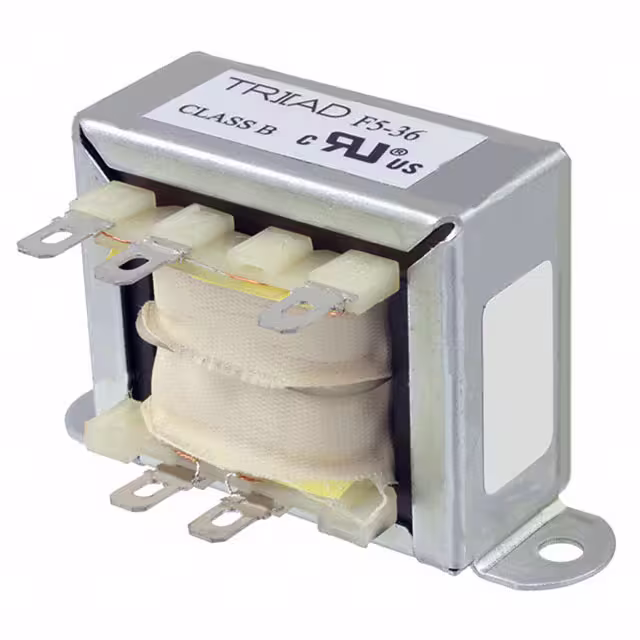

F5-36 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,933	11.24	- + RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	36V	350mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
