Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

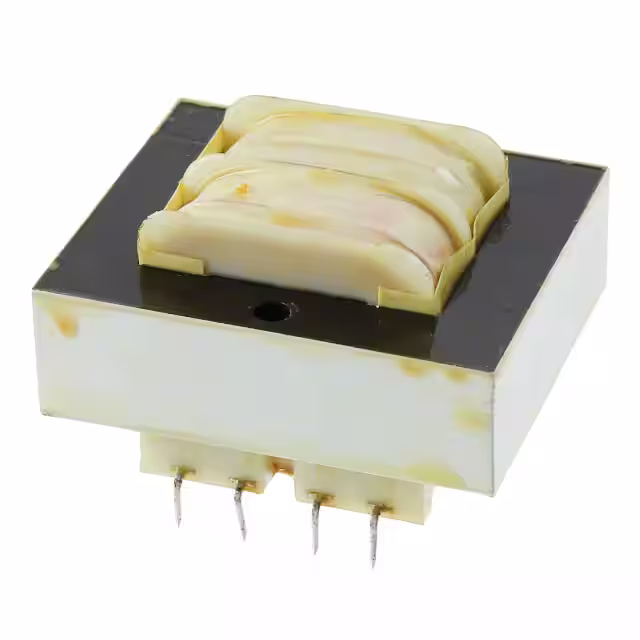

F10-2000 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,691	10.66	- + RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F120-160 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,615	10.66	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 320mA, Series 160mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F12-1600 PWR XFMR LAMINATED 20VA TH Triad Magnetics	1,002	10.66	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 3.2A, Series 1.6A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F16-1250 PWR XFMR LAMINATED 20VA TH Triad Magnetics	4,167	10.66	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F24-800 PWR XFMR LAMINATED 20VA TH Triad Magnetics	4,831	10.66	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 1.6A, Series 800mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F28-700 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,652	10.66	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 1.4A, Series 700mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F56-350 PWR XFMR LAMINATED 20VA TH Triad Magnetics	1,769	10.66	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 700mA, Series 350mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
LP-56-100 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	3,887	10.71	- + RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 200mA, Series 100mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-88-65 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	1,131	10.71	- + RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 44V, Series 88V	Parallel 130mA, Series 65mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-120-50 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	4,996	10.71	- + RFQ	Datasheet	Box	LP	Active	Semi-Toroidal	115V, 230V	Parallel 60V, Series 120V	Parallel 100mA, Series 50mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-230-25 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	4,585	10.71	- + RFQ	Datasheet	Box	LP	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 50mA, Series 25mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
ST-6-36 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,940	10.81	- + RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 1.1A, Series 550mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-10 PWR XFMR LAMINATED 20VA TH Signal Transformer	3,944	10.81	- + RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-48 PWR XFMR LAMINATED 20VA TH Signal Transformer	1,902	10.81	- + RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-56 PWR XFMR LAMINATED 20VA TH Signal Transformer	4,677	10.81	- + RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 700mA, Series 350mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
3FL40-300 PWR XFMR LAMINATED 12VA TH Tamura	4,681	10.88	- + RFQ	Datasheet	Bulk	3FL	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 600mA, Series 300mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.05mm	1500Vrms
ST-6-120 PWR XFMR LAMINATED 20VA TH Signal Transformer	4,376	10.90	- + RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 320mA, Series 160mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
DPC-56-15 PWR XFMR LAMINATED 1VA TH Signal Transformer	2,835	10.93	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 30mA, Series 15mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
F-3112X PWR XFMR LAMINATED 3.5VA CHAS MT Triad Magnetics	4,049	10.95	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	14V	250mA	Dual	Single	Yes	3.5VA	Chassis Mount	Wire Leads	60.33mm L x 38.10mm W	34.93mm	1500Vrms
MPC-X-12 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,741	11.04	- + RFQ	Datasheet	Bulk	MPC	Active	Laminated Core	115V	Parallel 5V, Series 12V	Parallel 360mA, Series 60mA	Single	Dual	Yes	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.70mm	1500Vrms
