Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

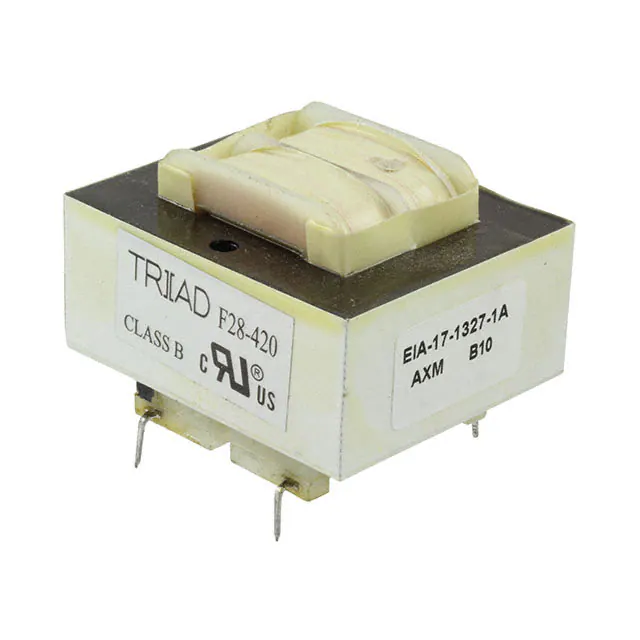

F28-420 PWR XFMR LAMINATED 12VA TH Triad Magnetics	8,611	8.74	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 840mA, Series 420mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms

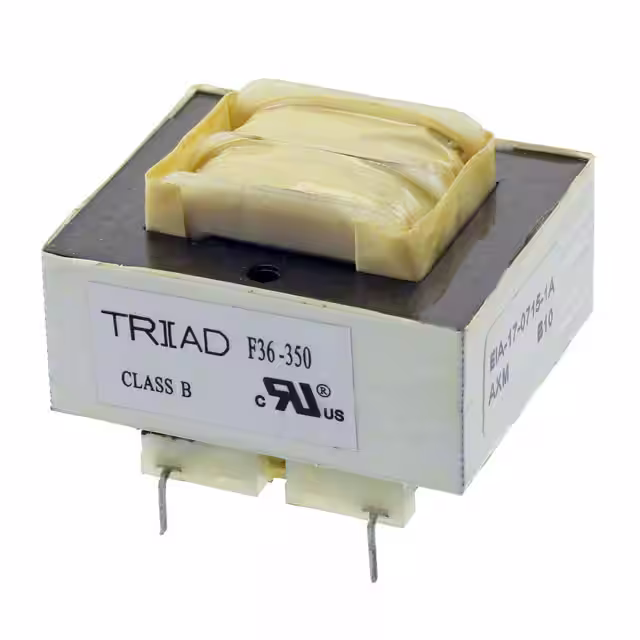

F36-350 PWR XFMR LAMINATED 12VA TH Triad Magnetics	7,503	8.74	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 700mA, Series 350mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms

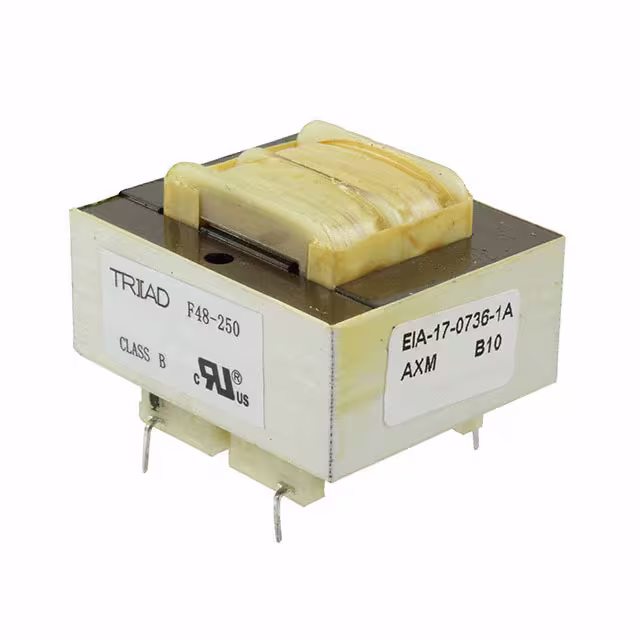

F48-250 PWR XFMR LAMINATED 12VA TH Triad Magnetics	6,682	8.74	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 500mA, Series 250mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms

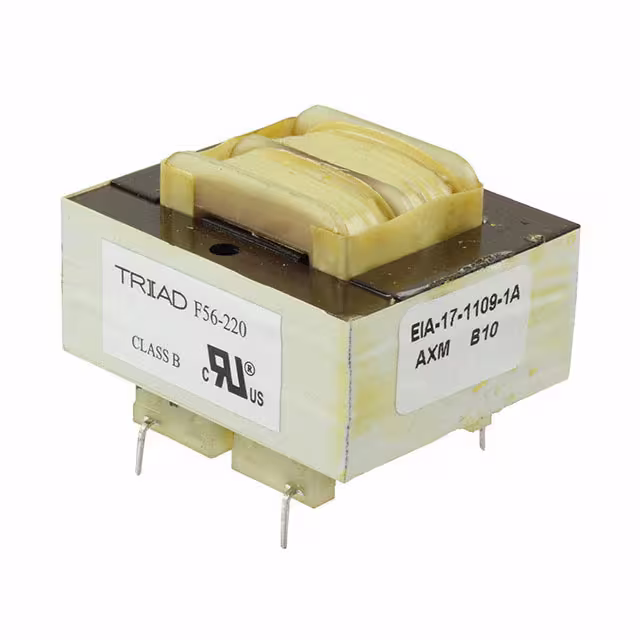

F56-220 PWR XFMR LAMINATED 12VA TH Triad Magnetics	5,903	8.74	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 440mA, Series 220mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
FP16-375-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	9,466	8.76	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 750mA, Series 375mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP20-300-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	9,625	8.76	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP24-250-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	9,725	8.76	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP30-200-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	9,752	8.76	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 400mA, Series 200mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
DPC-20-220 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	9,583	8.77	- + RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 440mA, Series 220mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
DPC-28-160 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	8,661	8.77	- + RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 320mA, Series 160mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
DPC-10-440 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	9,554	8.77	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 880mA, Series 440mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
F-3152XP PWR XFMR LAMINATED 7.5VA CHAS MT Triad Magnetics	6,791	8.82	- + RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 7.5V, Series 15V	Parallel 1A, Series 500mA	Dual	Dual	No	7.5VA	Chassis Mount	PC Pin	71.42mm L x 36.50mm W	41.28mm	1500Vrms
PC-10-1000 PWR XFMR LAMINATED 10VA TH Signal Transformer	5,293	8.83	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Single	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms

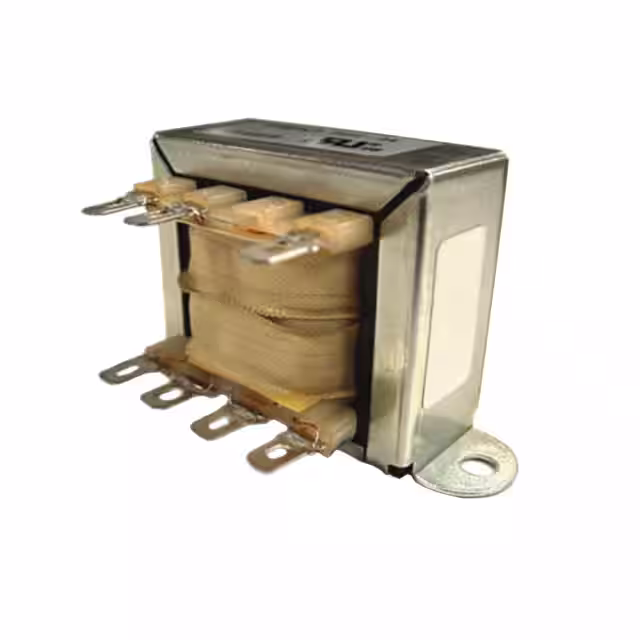

FD5-120-B PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	6,093	8.85	- + RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V, 230V	120V	100mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
241-4-10 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	9,586	8.86	- + RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	10V	600mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms

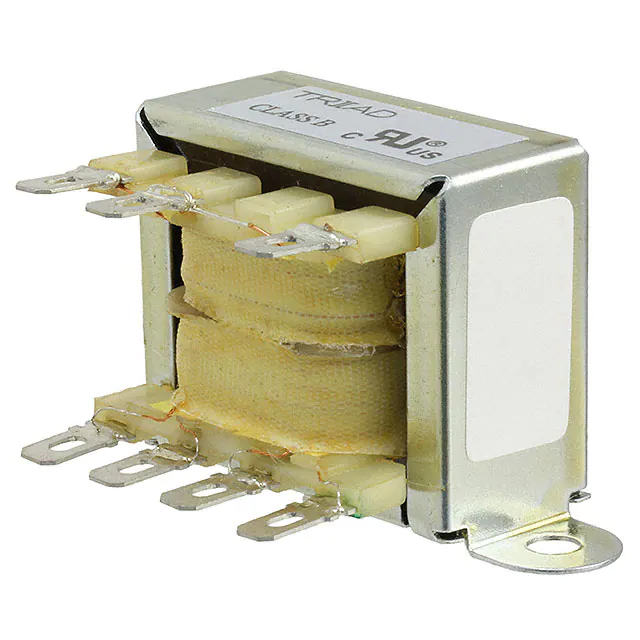

FD4-12 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	9,653	8.89	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	12.6V	500mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	65.07mm L x 31.75mm W	34.93mm	2500VAC
FD4-16 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	9,505	8.89	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	16V	400mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	65.07mm L x 31.75mm W	34.93mm	2500VAC
FD4-56 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	8,567	8.89	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	56V	110mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	65.07mm L x 31.75mm W	34.93mm	2500VAC

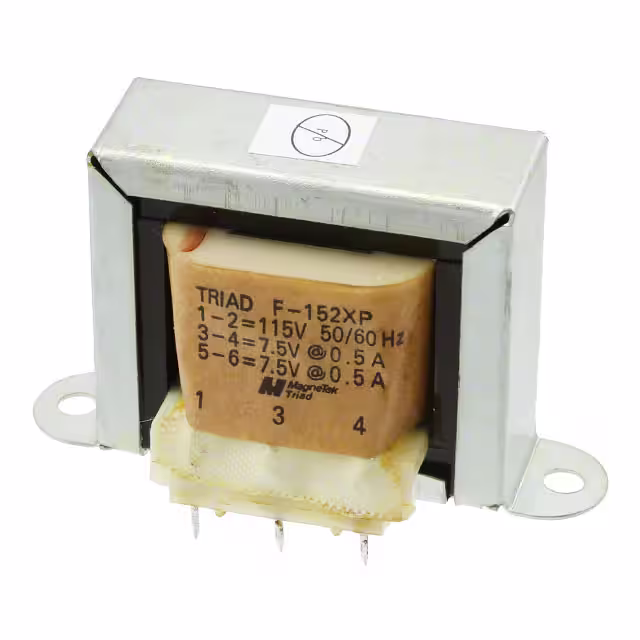

F-152XP PWR XFMR LAMINATED 7.5VA CHAS MT Triad Magnetics	9,320	8.96	- + RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 7.5V, Series 15V	Parallel 1A, Series 500mA	Single	Dual	No	7.5VA	Chassis Mount	PC Pin	71.42mm L x 37.29mm W	41.28mm	1500Vrms
PC-28-160 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	5,901	9.00	- + RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 320mA, Series 160mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
