Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

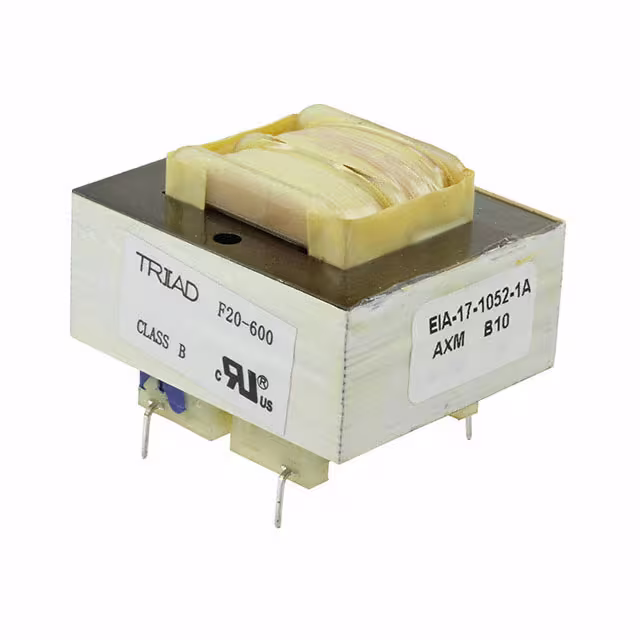

F20-600 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,790	11.95	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
F-3153XP PWR XFMR LAMINATED 7.5VA TH Triad Magnetics	3,609	11.95	- + RFQ	Datasheet	Box	Dual Primary	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 500mA, Series 250mA	Dual	Dual	No	7.5VA	Through Hole	PC Pin	71.42mm L x 36.50mm W	41.28mm	1500Vrms
MPL-6-15 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	4,675	11.97	- + RFQ	Datasheet	Bulk	MPL	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 15V	Parallel 135mA, Series 35mA	Dual	Dual	Yes	6VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	21.60mm	1500Vrms

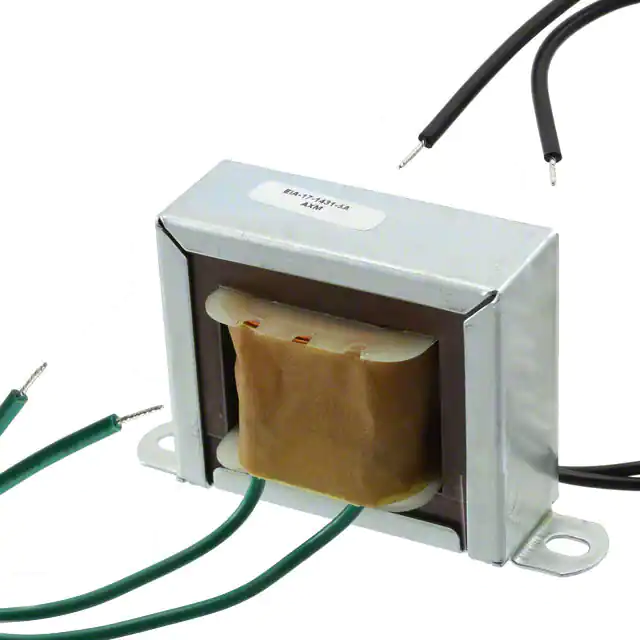

F-217X PWR XFMR LAMINATED 14.4VA CHAS Triad Magnetics	3,549	12.01	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12V	1.2A	Single	Single	No	14.4VA	Chassis Mount	Wire Leads	82.55mm L x 41.28mm W	50.80mm	1500Vrms

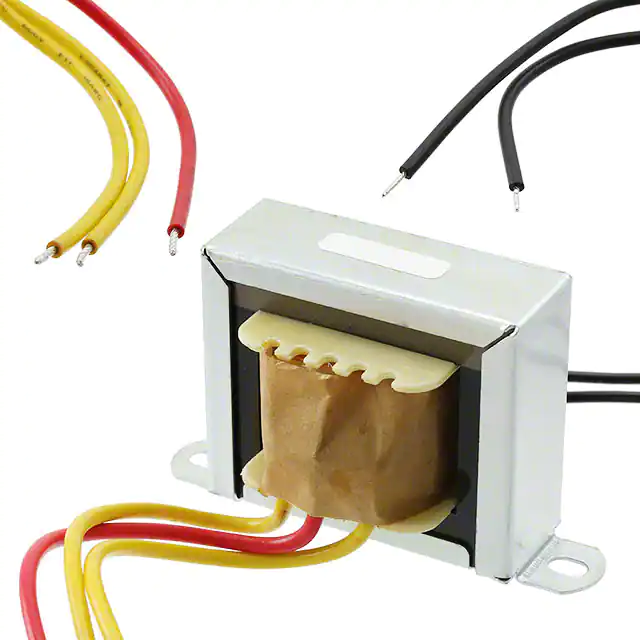

F-6X PWR XFMR LAMINATED 15VA CHAS MT Triad Magnetics	2,722	12.01	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	2.5V	6A	Single	Single	Yes	15VA	Chassis Mount	Wire Leads	84.12mm L x 44.45mm W	49.20mm	2500Vrms
PC-16-1500 PWR XFMR LAMINATED 24VA TH Signal Transformer	1,961	12.09	- + RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 3A, Series 1.5A	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-20-1200 PWR XFMR LAMINATED 24VA TH Signal Transformer	4,638	12.09	- + RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 2.4A, Series 1.2A	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-28-800 PWR XFMR LAMINATED 24VA TH Signal Transformer	4,311	12.09	- + RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 1.6A, Series 800mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-40-600 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,639	12.09	- + RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 1.2A, Series 600mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-120-200 PWR XFMR LAMINATED 24VA TH Signal Transformer	3,261	12.09	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 400mA, Series 200mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-56-420 PWR XFMR LAMINATED 24VA TH Signal Transformer	3,392	12.09	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 840mA, Series 420mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms

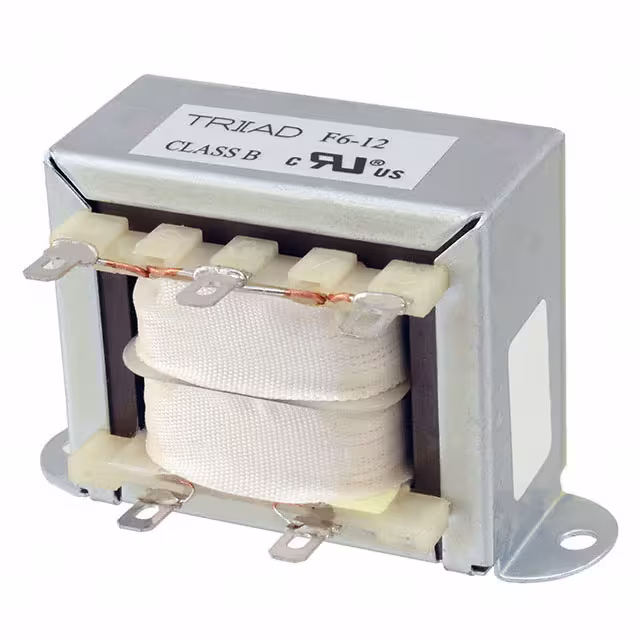

F6-12 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,175	12.16	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	12.6V	2.5A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
PC-12-2000 PWR XFMR LAMINATED 24VA TH Signal Transformer	3,700	12.31	- + RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 4A, Series 2A	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms

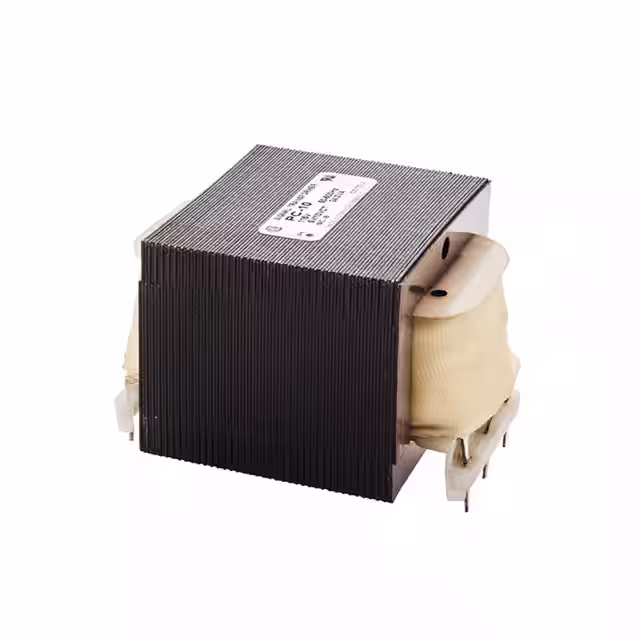

PC-10-2400 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,977	12.31	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 4.8A, Series 2.4A	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
VPS12-2000-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,786	12.40	- + RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 4A, Series 2A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS16-1600-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,998	12.40	- + RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 3.2A, Series 1.6A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 33.27mm W	58.67mm	4000Vrms
VPS24-1000-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,633	12.40	- + RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 2A, Series 1A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS36-700-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	4,171	12.40	- + RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.4A, Series 700mA	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	71.37mm	4000Vrms
FP10-1200 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,957	12.48	- + RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
DST-6-10 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,272	12.53	- + RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
