Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
F56-110 PWR XFMR LAMINATED 6VA TH Triad Magnetics	8,244	8.21	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 220mA, Series 110mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS48-250-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	7,159	8.22	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 500mA, Series 250mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	4200Vrms
FS56-220-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	6,065	8.22	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 440mA, Series 220mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	4200Vrms
FS10-1200-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	8,849	8.22	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	4200Vrms
FS16-800-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	6,049	8.22	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.6A, Series 800mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	4200Vrms

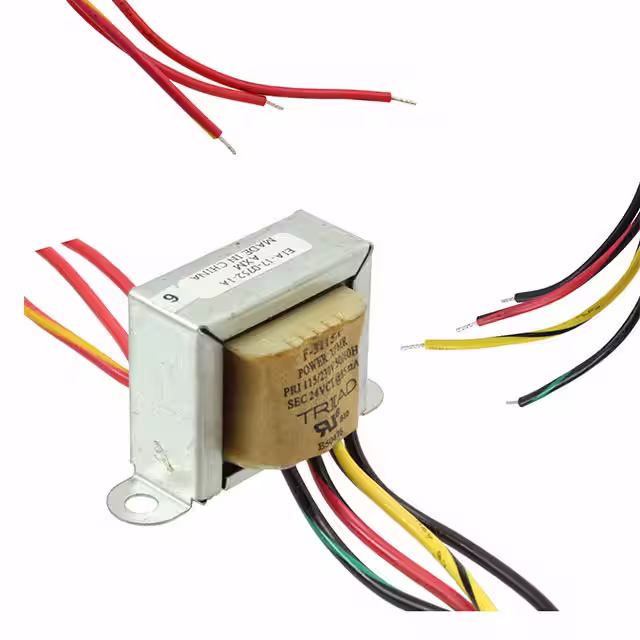

F-3115X PWR XFMR LAMINATED 2VA CHAS MT Triad Magnetics	8,698	8.25	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	24V	85mA	Dual	Single	Yes	2VA	Chassis Mount	Wire Leads	52.37mm L x 34.93mm W	30.15mm	1500Vrms
F20-055 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	5,345	8.26	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 110mA, Series 55mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F10-110 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	5,633	8.26	- + RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 220mA, Series 110mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
241-3-56 PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	7,129	8.30	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	45mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-3-12L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	8,748	8.30	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	12.6V	200mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-3-16L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	7,351	8.30	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	16V	150mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-3-20L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	5,512	8.30	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	20V	120mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-3-24L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	5,509	8.30	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	24V	100mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-3-48L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	6,008	8.30	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	50mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms

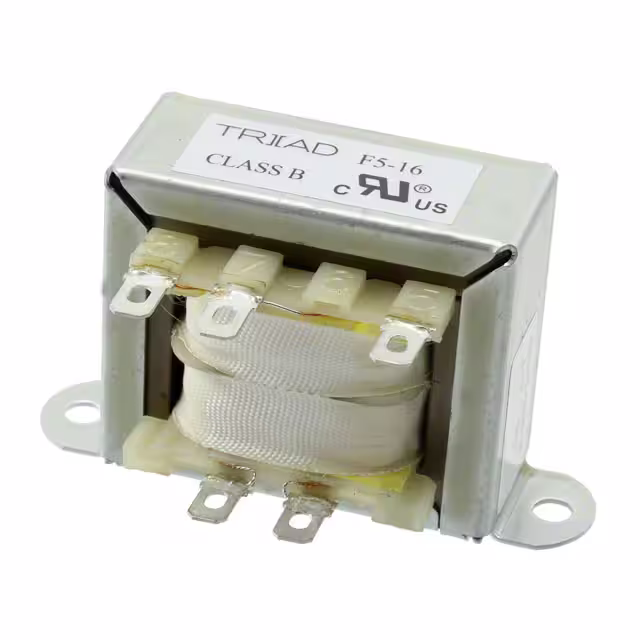

F5-16 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	8,515	8.30	- + RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	16V	800mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
PC-40-20 PWR XFMR LAMINATED 1VA TH Signal Transformer	9,550	8.36	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 40mA, Series 20mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
PC-120-10 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	7,205	8.43	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 20mA, Series 10mA	Single	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
241-3-120L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	7,378	8.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	120V	20mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-3-56L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	5,273	8.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	45mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms
FP10-600-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	9,231	8.52	- + RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 1.2A, Series 600mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
