Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
DST-3-56 PWR XFMR LAMINATED 2.4VA TH Signal Transformer	5,279	7.88	- + RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.80mm	2500Vrms

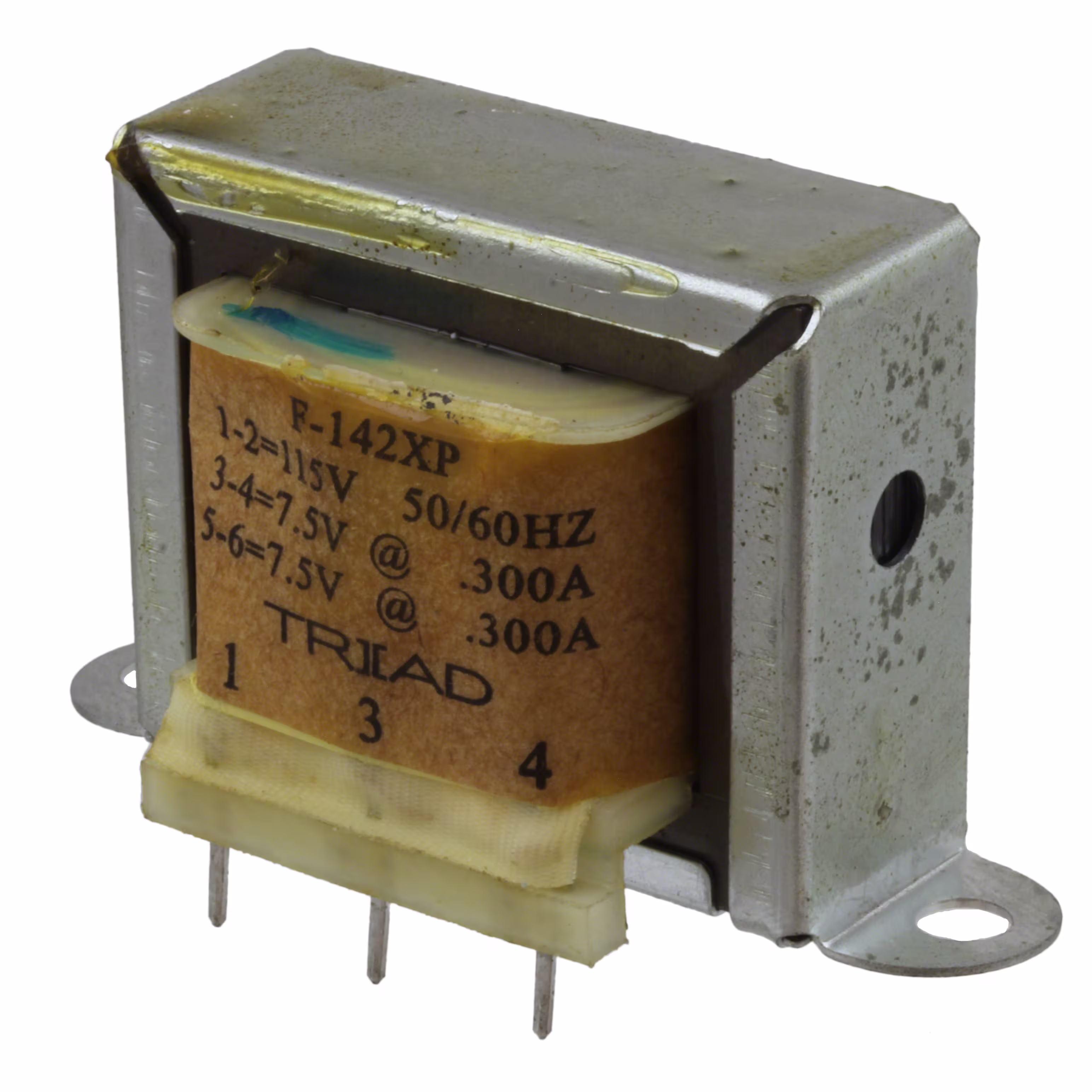

F-142XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	8,742	8.03	- + RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 7.5V, Series 15V	Parallel 600mA, Series 300mA	Single	Dual	No	4.5VA	Chassis Mount	Wire Leads	60.32mm L x 31.75mm W	36.50mm	1500Vrms
F-144XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	7,872	8.03	- + RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 27V, Series 54V	Parallel 168mA, Series 84mA	Single	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms

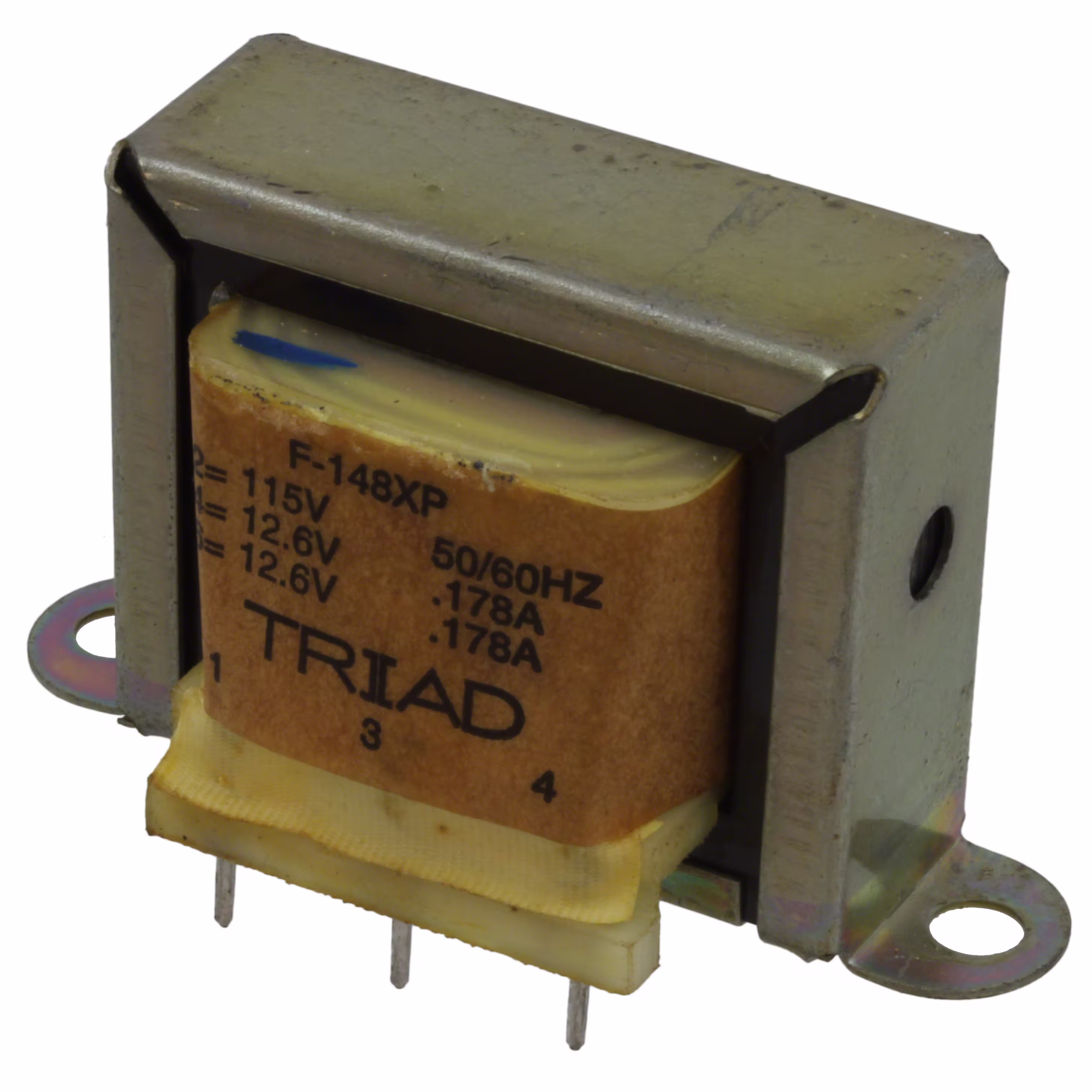

F-148XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	8,137	8.03	- + RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 12.6V, Series 25.2V	Parallel 356mA, Series 178mA	Single	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms
PC-12-70 PWR XFMR LAMINATED 1VA TH Signal Transformer	7,071	8.07	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 140mA, Series 70mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
PC-16-55 PWR XFMR LAMINATED 1VA TH Signal Transformer	5,943	8.07	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 110mA, Series 55mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
PC-20-45 PWR XFMR LAMINATED 1VA TH Signal Transformer	8,502	8.07	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 90mA, Series 45mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
PC-24-35 PWR XFMR LAMINATED 1VA TH Signal Transformer	9,681	8.07	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 70mA, Series 35mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
PC-28-30 PWR XFMR LAMINATED 1VA TH Signal Transformer	7,901	8.07	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 60mA, Series 30mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
PC-34-25 PWR XFMR LAMINATED 1VA TH Signal Transformer	5,462	8.07	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 17V, Series 34V	Parallel 50mA, Series 25mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
PC-56-15 PWR XFMR LAMINATED 1VA TH Signal Transformer	8,607	8.07	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 30mA, Series 15mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms

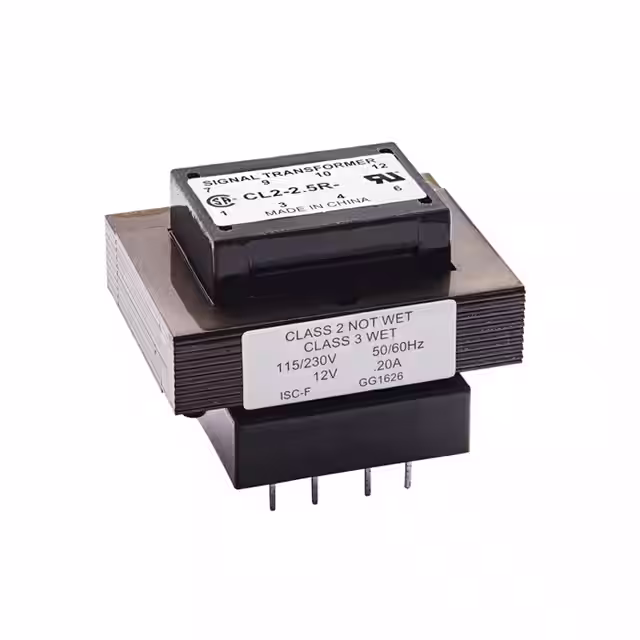

CL2-2.5R-24 PWR XFMR LAMINATED 2.5VA TH Signal Transformer	6,648	8.11	- + RFQ	Datasheet	Box	CL2	Active	Laminated Core	115V, 230V	24V	100mA	Dual	Single	No	2.5VA	Through Hole	PC Pin	41.30mm L x 36.50mm W	28.60mm	4000Vrms
PC-120-8 PWR XFMR LAMINATED 1VA TH Signal Transformer	7,421	8.14	- + RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 16mA, Series 8mA	Single	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
DPC-120-10 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	7,159	8.19	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 20mA, Series 10mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms

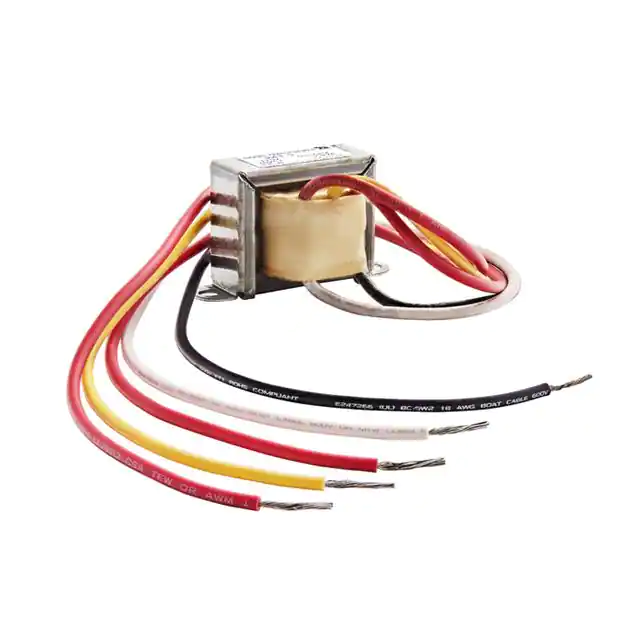

241-3-28L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	8,535	8.19	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	28V	85mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms
F10-600 PWR XFMR LAMINATED 6VA TH Triad Magnetics	6,199	8.21	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 1.2A, Series 600mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F24-250 PWR XFMR LAMINATED 6VA TH Triad Magnetics	5,391	8.21	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F28-200 PWR XFMR LAMINATED 6VA TH Triad Magnetics	8,358	8.21	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 400mA, Series 200mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms

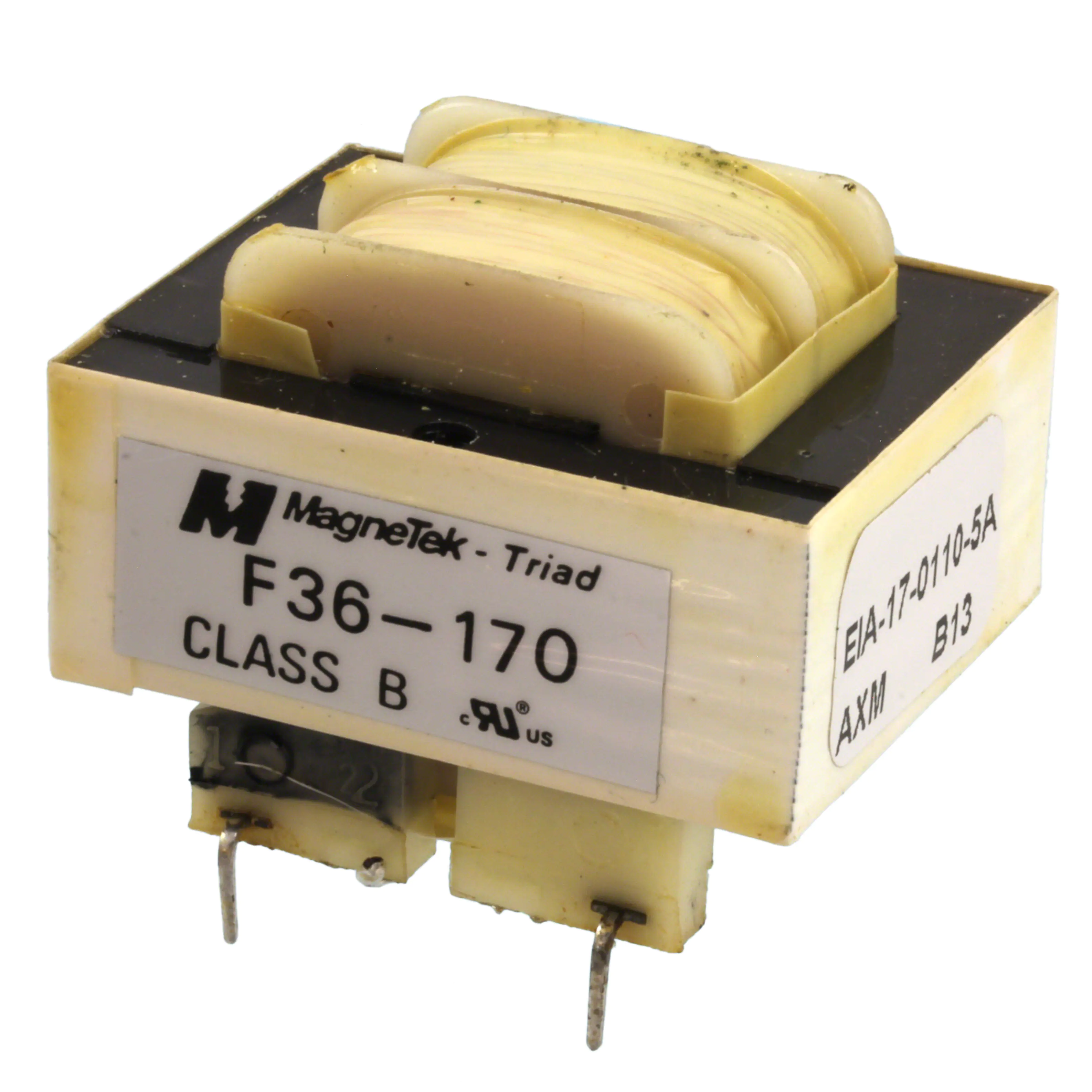

F36-170 PWR XFMR LAMINATED 6VA TH Triad Magnetics	5,619	8.21	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 340mA, Series 170mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F48-125 PWR XFMR LAMINATED 6VA TH Triad Magnetics	8,020	8.21	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 250mA, Series 125mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
