Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

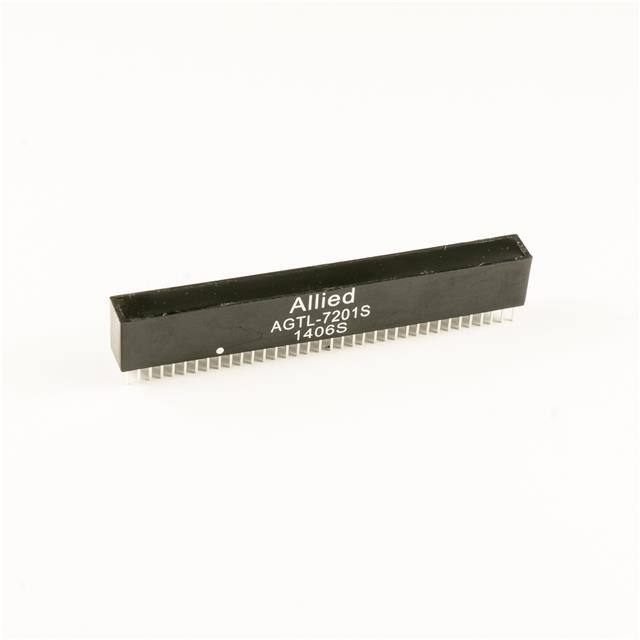

AGTL-7201S 0.5H 100/1000 BASE T GIG 4-PORT Allied Components International	6,737	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1CT	Through Hole	2.566 L x 0.260 W (65.18mm x 6.60mm)	0.472 (12.00mm)
PL1170T XFMR TOROID CS SLIC T&RCOM PBC iNRCORE, LLC	7,186	6.65	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	1:1:100	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
H2019FNL H2019FNL Pulse Electronics Network	11,178	0.00	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-
KTFZ-DMS2401CA1-HA1 TRANSFORMER LAN SINGLE 24PIN STD KinnexA	5,720	6.73	- + RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.600 L x 0.539 W (15.24mm x 13.70mm)	0.334 (8.48mm)
KTFZ-DMS2401CB1-HA1 TRANSFORMER LAN SINGLE 24PIN STD KinnexA	7,043	6.73	- + RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.600 L x 0.591 W (15.24mm x 15.00mm)	0.334 (8.48mm)
PL1241NLT XFMR TOROID CS SLIC COM NPB iNRCORE, LLC	8,057	6.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	760µH	-	-	Surface Mount	0.670 L x 0.770 W (17.02mm x 19.56mm)	0.400 (10.16mm)

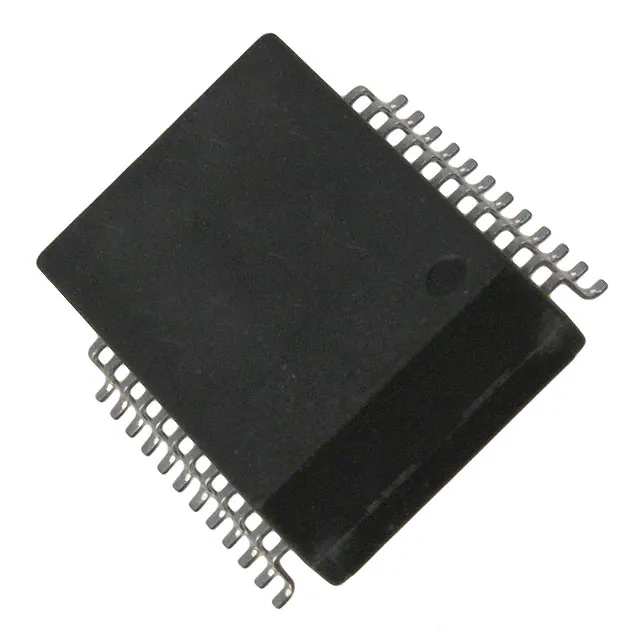

1000B-5001 TRANSFORMER MODULE SMD iNRCORE, LLC	1,371	18.62	- + RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	-	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.235 (5.97mm)
1000B-5001F XFMR CHOKE SHUNT QUAD 100 PBC iNRCORE, LLC	2,800	18.63	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)

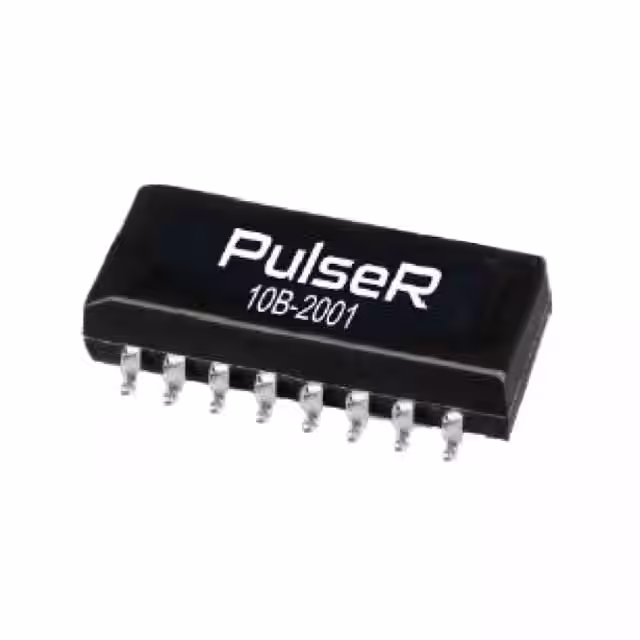

10B-2001 XFMR MODULE 10BT SMT EX-TEMP iNRCORE, LLC	4,886	18.67	- + RFQ	Datasheet	Bulk	-	Active	LAN 10 Base-T	-	-	1:1	Surface Mount	0.920 L x 0.500 W (23.37mm x 12.70mm)	0.235 (5.97mm)
1000B-5002FXT MDL SIN 1GD 1:1 SMT TR PBC iNRCORE, LLC	3,034	18.71	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)
1000B-5001FNLT XFMR CHOKE SHUNT QUAD 100 RPB iNRCORE, LLC	3,510	18.72	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)
PL1374T EXTMP XFMR SGL T1 LS ET T& PBC iNRCORE, LLC	9,156	6.82	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	1.2µH	-	1CT:1CT	Surface Mount	0.300 L x 0.276 W (7.62mm x 7.00mm)	0.260 (6.60mm)
PL1170NLT XFMR TOROID CS SLIC COM PBC iNRCORE, LLC	6,607	6.83	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	1:1:100	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
AGSC-5003S 10/100/1000 BASE-T GIGABIT DUAL Allied Components International	5,569	6.95	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100 L x 0.300 W (27.94mm x 7.62mm)	0.340 (8.64mm)

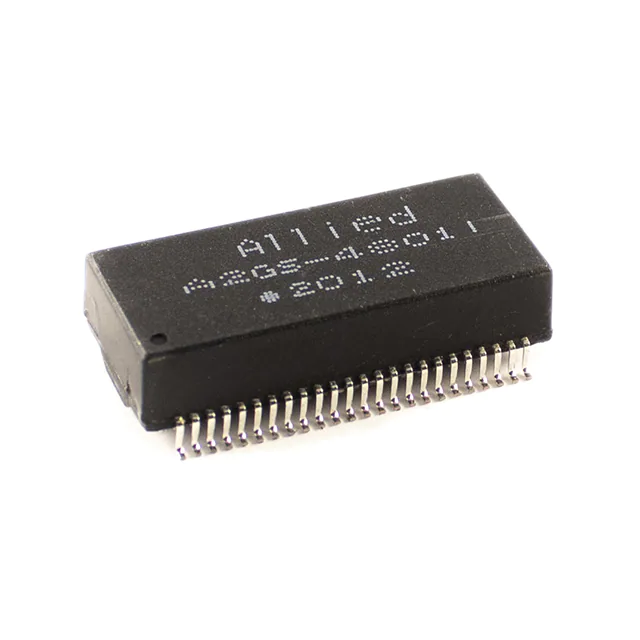

A2GS-4801I 2.5G DUAL PORT Allied Components International	8,025	6.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5G Base-T	180µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)

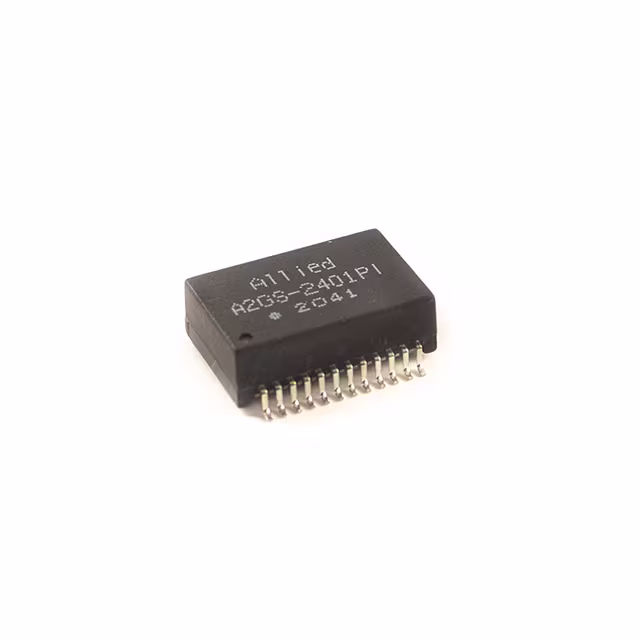

A2GS-2401PI 2.5 GIGABIT SINGLE PORT POE+ LAN Allied Components International	8,419	6.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	350µH	-	1:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

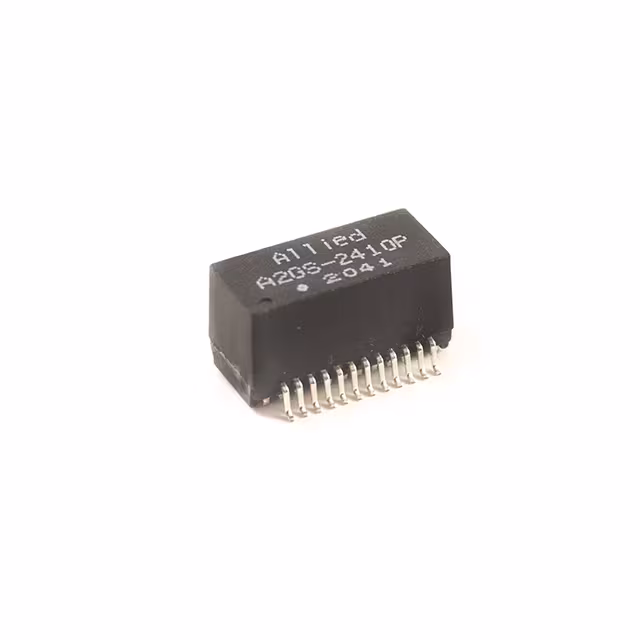

A2GS-2410P 2.5 GIGABIT SINGLE PORT POE+ LAN Allied Components International	8,020	6.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	160µH	-	1:1CT	Surface Mount	0.594 L x 0.394 W (15.10mm x 10.00mm)	0.323 (8.20mm)

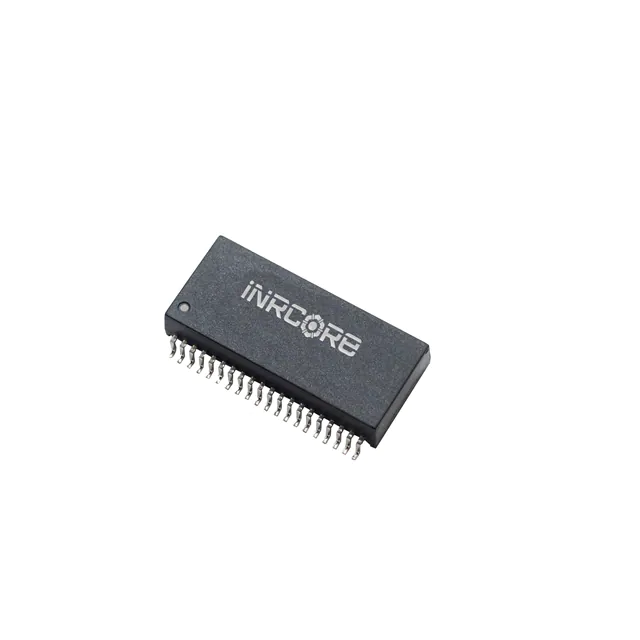

R4009NLT XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	9,843	7.10	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	1.080 L x 0.480 W (27.43mm x 12.19mm)	0.226 (5.74mm)
KTFZ-DMS2402CB1-HA1 TRANSFORMER LAN SINGLE 24PIN STD KinnexA	5,156	7.31	- + RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.600 L x 0.591 W (15.24mm x 15.00mm)	0.334 (8.48mm)
KTFZ-DMS2402CA2-XXX TRANSFORMER LAN SINGLE 24PIN STD KinnexA	6,251	7.31	- + RFQ	Datasheet	Bulk	KTFZ	Active	LAN 10G Base-T	160µH	-	1:1	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.236 (6.00mm)
