Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

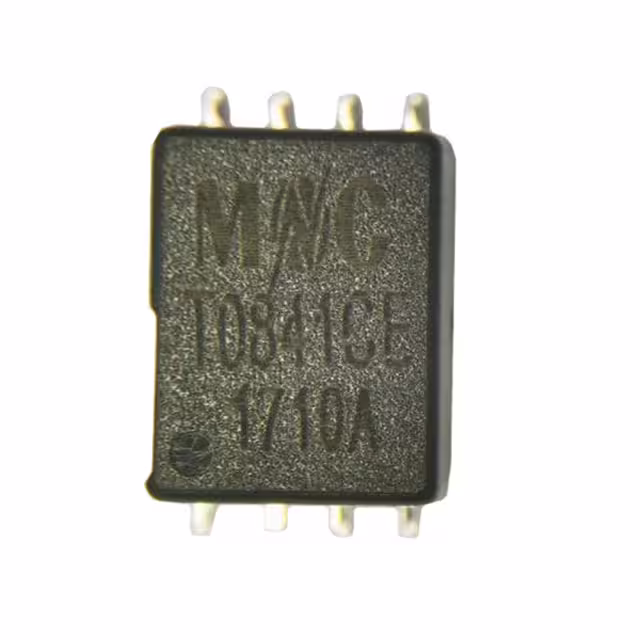

T0841CE PLC XFMR,1:1:1:2,28UH,FUNC.1500V Mentech Technology USA Inc.	10,908	0.00	- + RFQ		Tape & Reel (TR)	-	Active	-	28µH	-	1:1:1:2	Surface Mount	-	-
ISRF-0235-D101 ISRF PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	7,844	4.99	- + RFQ	Datasheet	Tape & Reel (TR)	IS	Active	SCR and Triac Trigger (Encapsulated)	1.1mH	150VµS	1:1:1	Surface Mount	0.512 L x 0.598 W (13.00mm x 15.20mm)	0.433 (11.00mm)
KTFZ-DGS2401CAG-XXX TRANSFORMER LAN SINGLE 24PIN STD KinnexA	5,943	4.97	- + RFQ	Datasheet	Bulk	KTFZ	Active	-	350µH	-	1:1	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.157 (4.00mm)

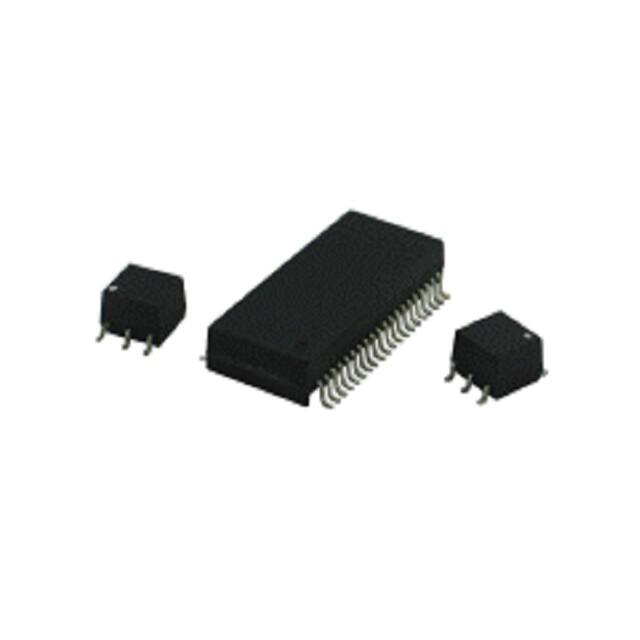

YLTP0016T PULSE TRANSFORMER LAN ETHERNET Trigon Components	14,315	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	YLTP	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	-	-
CTLF24P1GF-002 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	6,184	5.36	- + RFQ	Datasheet	Tape & Reel (TR)	CTLF24P1GF	Active	LAN 10/100/1000 Base-T	-	-	-	Surface Mount	0.705 L x 0.484 W (17.90mm x 12.30mm)	0.110 (2.80mm)
CTLF24S1GF-001 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	8,093	5.36	- + RFQ	Datasheet	Tape & Reel (TR)	CTLF24S1GF	Active	LAN 10/100/1000 Base-T	-	-	-	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
CTLF24S1GF-002 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	13,850	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLF24S1GF	Active	LAN 10/100/1000 Base-T	-	-	-	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
CTLF24P1GF-001 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	11,307	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLF24P1GF	Active	LAN 10/100/1000 Base-T	-	-	-	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)

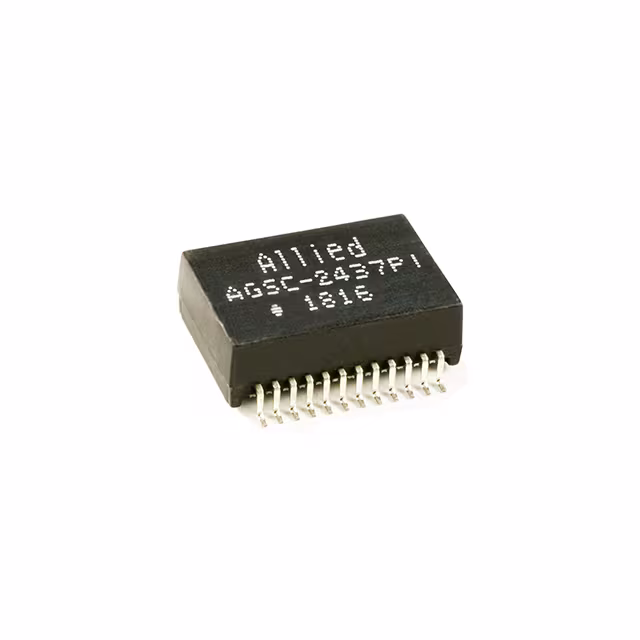

AGSC-2437PI 100/1000 BASE T POE PLUS LAN FIL Allied Components International	6,911	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

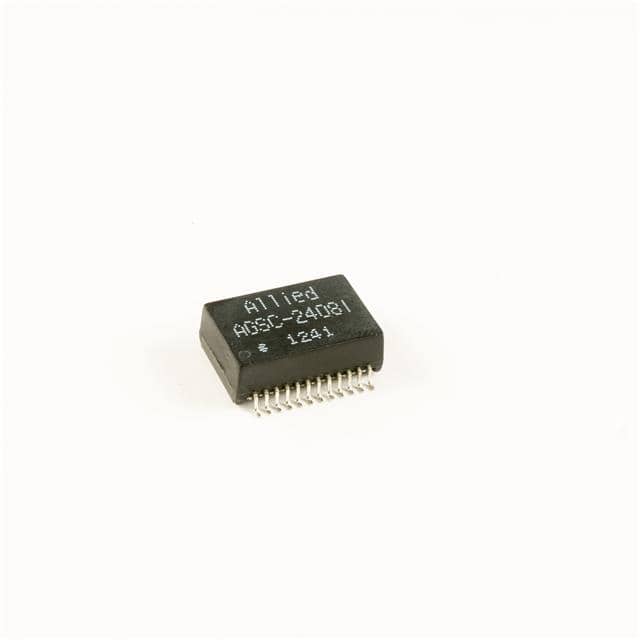

AGSC-2408I 100/1000 Base-T Gig Single Port Allied Components International	5,277	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

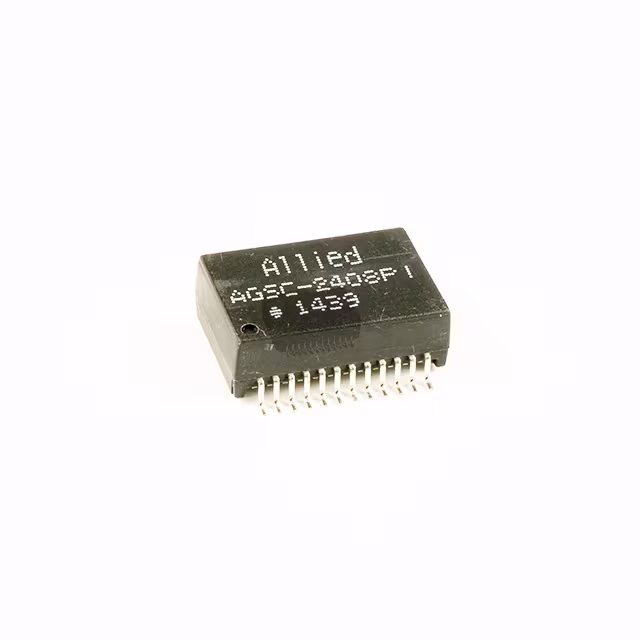

AGSC-2408PI 100/1000 BASE T GIGABIT DUAL POR Allied Components International	5,653	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.268 (6.80mm)

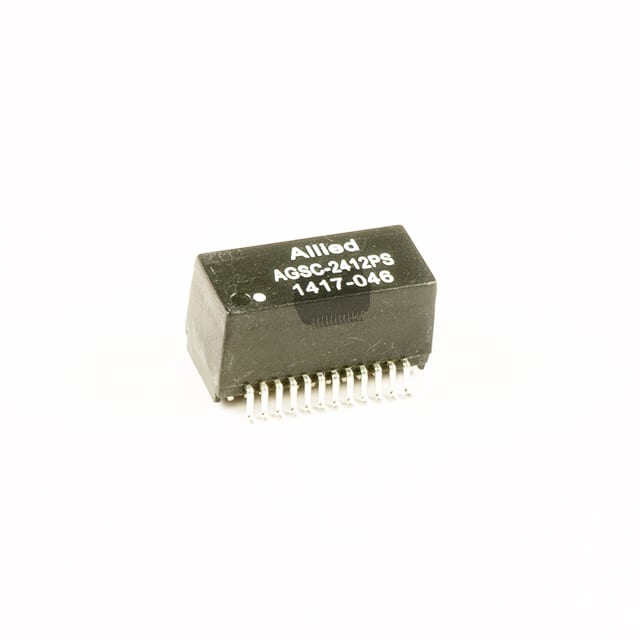

AGSC-2412PS 100/1000 BASE T SINGLE PORT POE Allied Components International	7,433	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.323 (8.20mm)

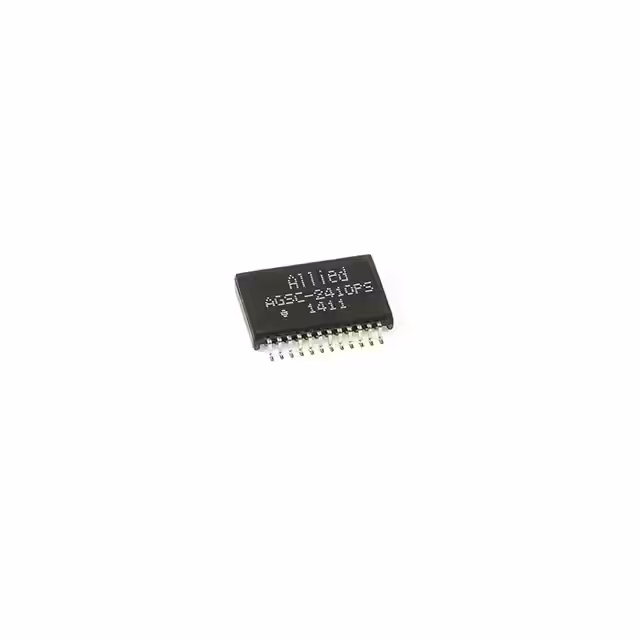

AGSC-2410PS 100/1000 BASE-T SINGLE PORT POE Allied Components International	5,207	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.701 L x 0.480 W (17.80mm x 12.20mm)	0.118 (3.00mm)
R2002NLT XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	8,738	5.59	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	0.595 L x 0.518 W (15.11mm x 13.16mm)	0.241 (6.12mm)
R5001NLT XFRMR ETHERNET MOD IND 1000B-T iNRCORE, LLC	8,068	5.67	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	0.700 L x 0.490 W (17.78mm x 12.45mm)	0.235 (5.97mm)

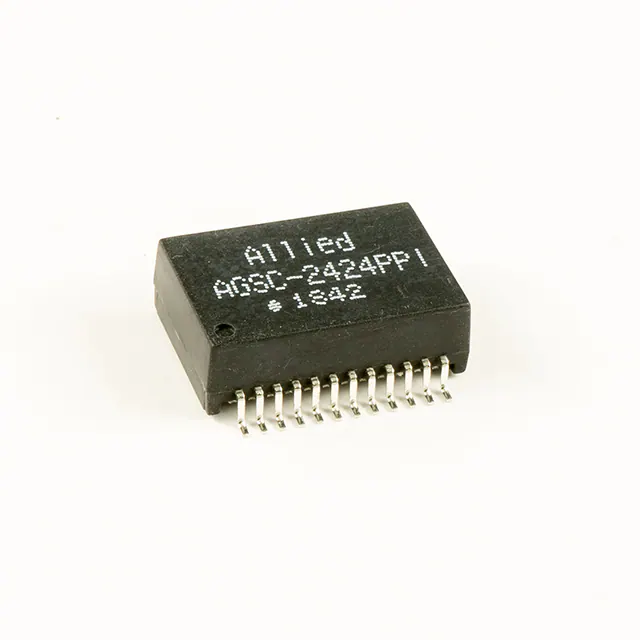

AGSC-2424PPI 10/100/1000 SINGLE PORT POE++ FI Allied Components International	9,127	5.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

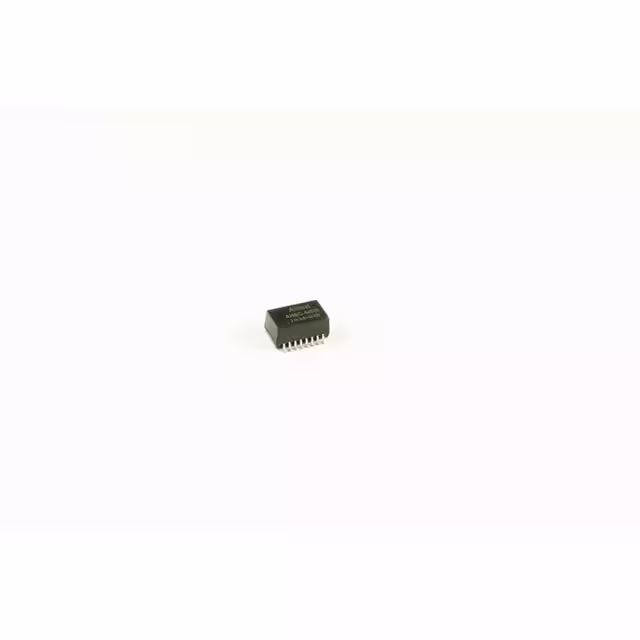

AHSC-4400I 10/100 Base T LAN Filter Module Allied Components International	6,433	5.75	- + RFQ		Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)
AHSC-4196I 10/100 LAN Module Allied Components International	9,785	5.75	- + RFQ		Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.504 L x 0.268 W (12.80mm x 6.80mm)	0.244 (6.20mm)

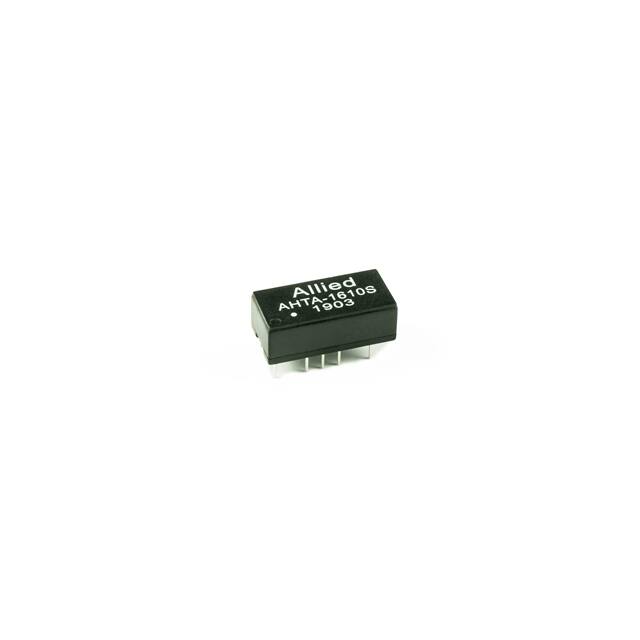

AHTA-1610S 10/100 Base T LAN Filter Module Allied Components International	9,626	5.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Through Hole	0.803 L x 0.386 W (20.40mm x 9.80mm)	0.240 (6.10mm)

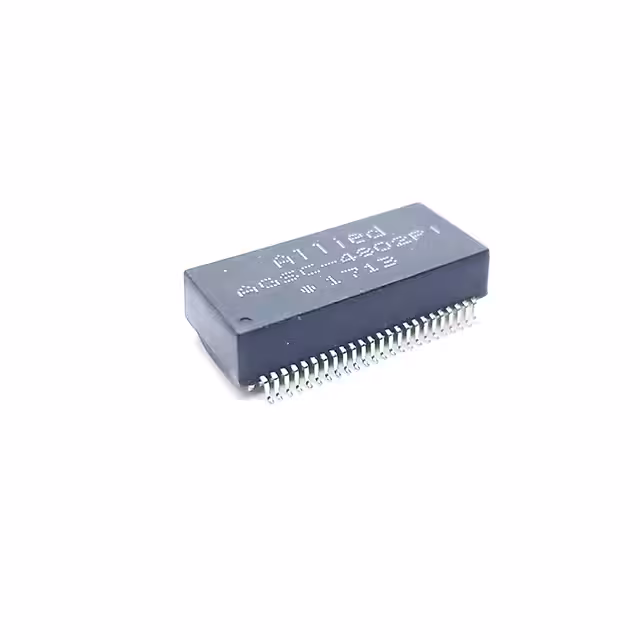

AGSC-4802PI 100/1000 BASE-T DULA PORT POE+ L Allied Components International	8,777	5.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)
