Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
AHTA-1202S 10/100 Base T LAN Filter Module Allied Components International	5,007	5.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Through Hole	0.551 L x 0.307 W (14.00mm x 7.80mm)	0.283 (7.20mm)
AGSC-2477PI 100/1000 BASE-T GIGABIT SINGLE P Allied Components International	8,703	5.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	120µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.693 L x 0.480 W (17.60mm x 12.20mm)	0.236 (6.00mm)

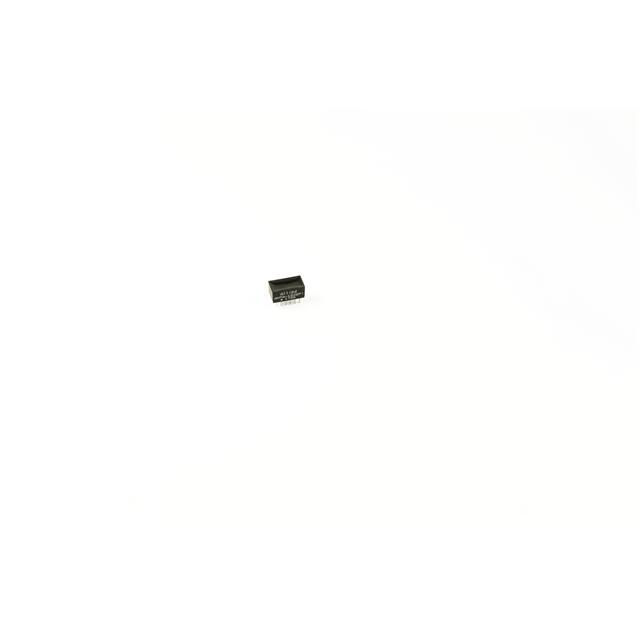

AHTA-1202PI 10/100 Base T PoE LAN Module Allied Components International	8,493	5.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Through Hole	0.551 L x 0.307 W (14.00mm x 7.80mm)	0.283 (7.20mm)

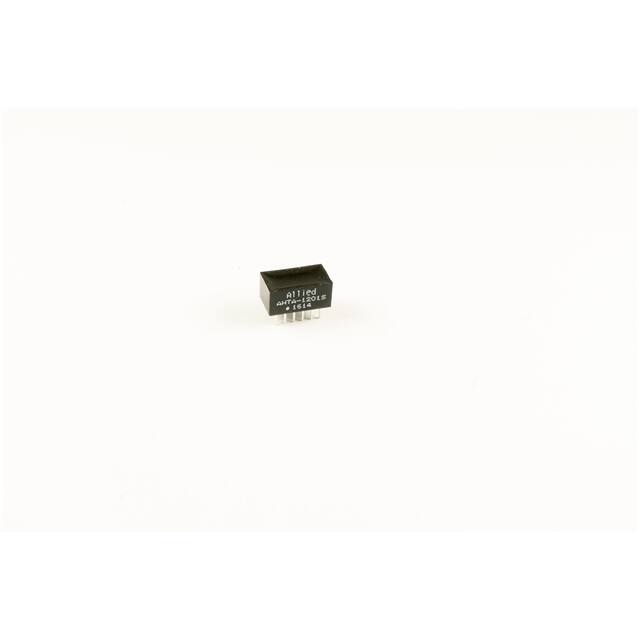

AHTA-1201S 10/100 Base T LAN Filter Module Allied Components International	6,360	5.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Through Hole	0.551 L x 0.307 W (14.00mm x 7.80mm)	0.283 (7.20mm)

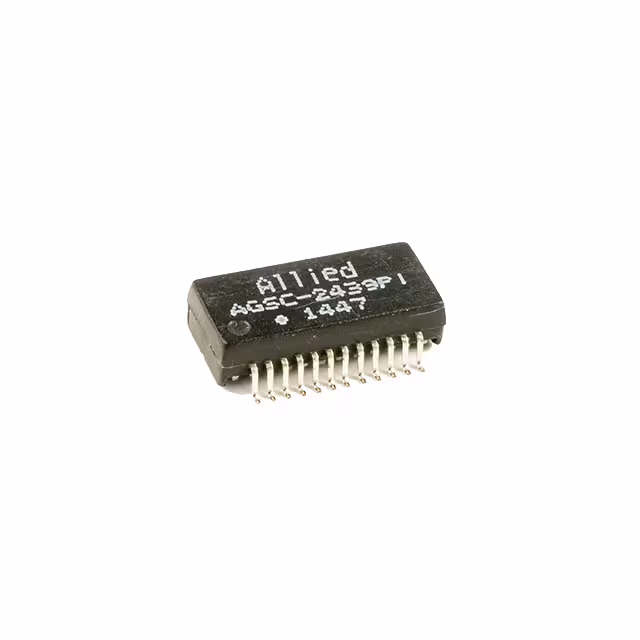

AGSC-2439PI 100/1000 BASE T POE LAN FILTER M Allied Components International	6,320	6.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.157 (4.00mm)
AGSC-2459I 100/1000 Gig Single Port LAN Allied Components International	7,523	5.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1CT	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.323 (8.20mm)

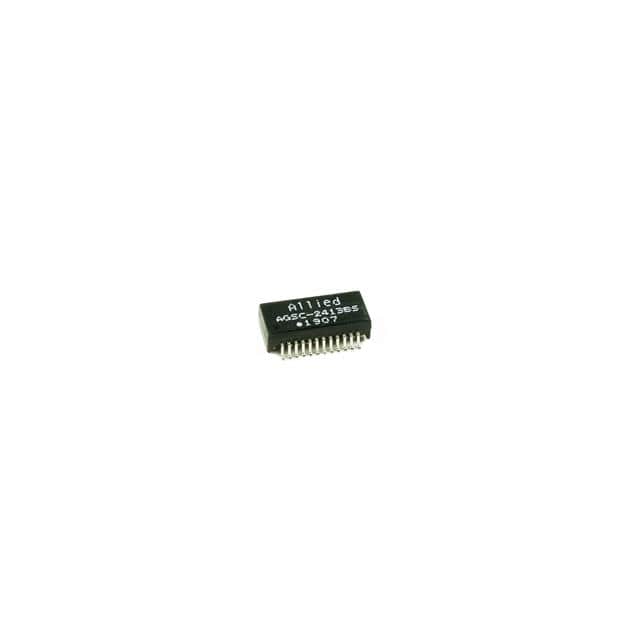

AGSC-2413BS 100/1000 Base T Gigabit XFMR Allied Components International	8,652	5.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.157 (4.00mm)

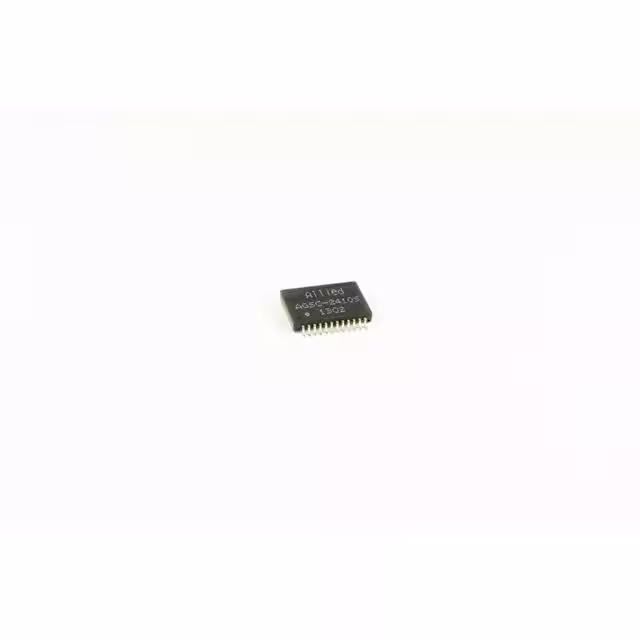

AGSC-2410S 100/1000 Base T Gigabit LAN XFMR Allied Components International	5,692	5.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.701 L x 0.480 W (17.80mm x 12.20mm)	0.118 (3.00mm)
YLTH24P01T PULSE TRANSFORMER LAN 10G Trigon Components	14,986	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	YLTH24P0S	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.244 (6.20mm)
YLTH24P03-2PT PULSE TRANSFORMER LAN 10G Trigon Components	11,007	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	YLTH24P0S	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.244 (6.20mm)
YLTH24P02T PULSE TRANSFORMER LAN 10G Trigon Components	10,080	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	YLTH24P0S	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.244 (6.20mm)
YLTH24P03PT PULSE TRANSFORMER LAN 10G Trigon Components	12,380	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	YLTH24P0S	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.244 (6.20mm)
YLTH24P05PT PULSE TRANSFORMER LAN 10G Trigon Components	11,661	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	YLTH24P0S	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.244 (6.20mm)

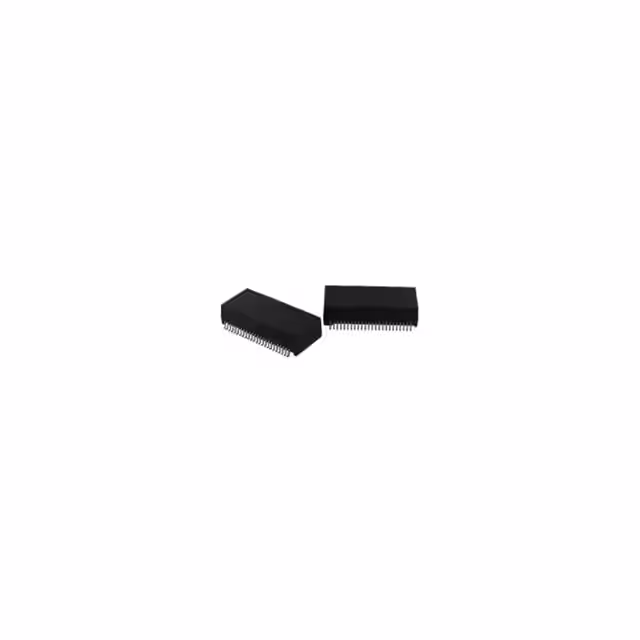

YLTH48702T TRANSFORMER ETHERNET LAN 10G Trigon Components	11,167	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	YLTH4870	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	1.291 L x 0.543 W (32.80mm x 13.80mm)	0.400 (10.16mm)
YLTH48701T TRANSFORMER ETHERNET LAN 10G Trigon Components	10,849	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	YLTH4870	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	1.291 L x 0.543 W (32.80mm x 13.80mm)	0.400 (10.16mm)

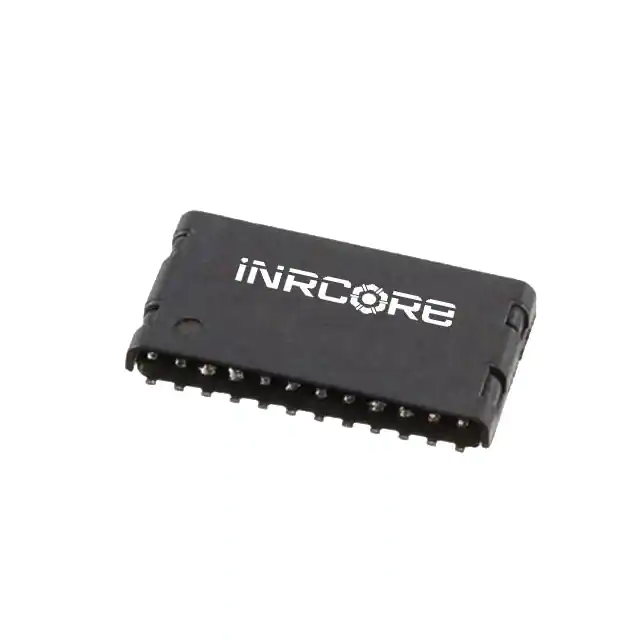

R5032NLT XFRMR ETHERNET MOD IND 1000B-T iNRCORE, LLC	7,503	6.07	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	0.650 L x 0.370 W (16.51mm x 9.41mm)	0.088 (2.24mm)

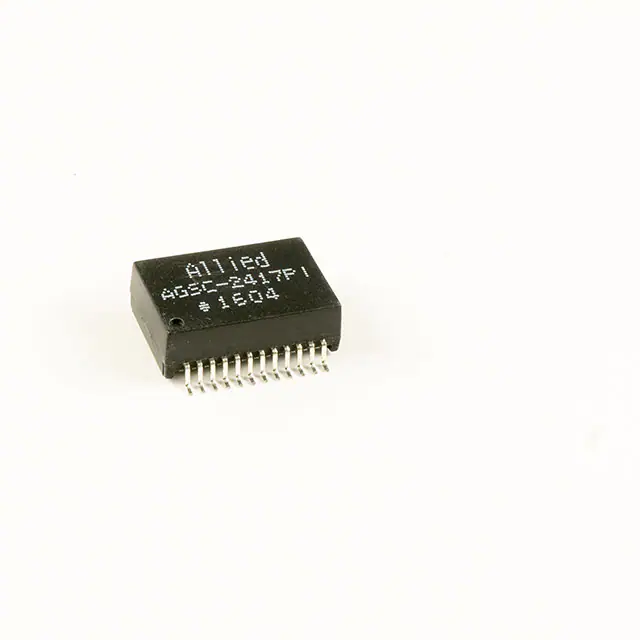

AGSC-2417PI 100/1000 Base T Gigabit PoE Plus Allied Components International	10,745	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

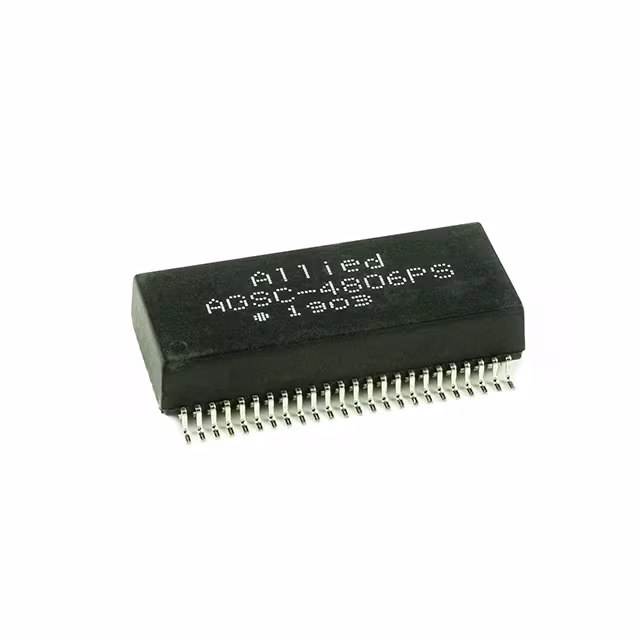

AGSC-4806PS 100/1000 BASE T GIGABIT DUAL POR Allied Components International	5,441	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.291 L x 0.528 W (32.80mm x 13.40mm)	0.287 (7.30mm)

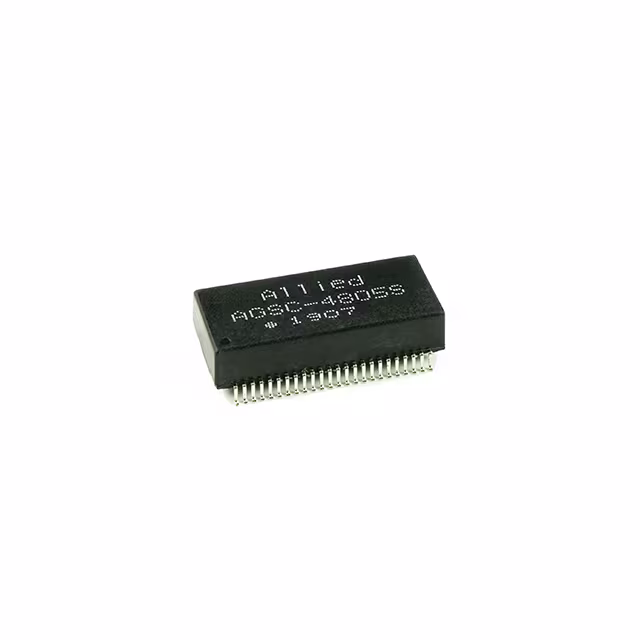

AGSC-4805S 100/1000 BASE-T GIGABIT DUAL POR Allied Components International	9,698	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)

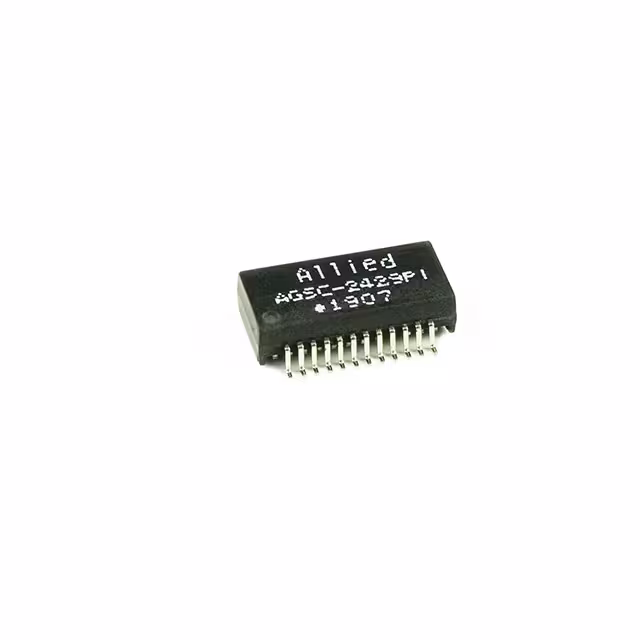

AGSC-2429PI 100/1000 Base-T Single Port PoE+ Allied Components International	7,166	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1CT	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.157 (4.00mm)
