| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P2TC0603D1001LNTAP2TC0603 2PPM/C 1K 0,01% N TA |
1,925 | 18.77 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | P2TC | Active | 1 kOhms | ±0.01% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Moisture Resistant | ±2ppm/°C | -55°C ~ 155°C | - | 0.060 L x 0.033 W (1.52mm x 0.85mm) | 0.025 (0.63mm) | |
|
|
P2TC0402D1001LNTAP2TC0402 2PPM/C 1K 0,01% N TA |
4,607 | 18.77 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | P2TC | Active | 1 kOhms | ±0.01% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Moisture Resistant | ±2ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.024 W (1.00mm x 0.60mm) | 0.025 (0.63mm) | |
|
Y11692K00000T9RRES SMD 2K OHM 0.01% 0.6W J LEAD |
4,260 | 19.01 |
RFQ |
Datasheet |
3017 J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMR3D | Active | 2 kOhms | ±0.01% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive, Pulse Withstanding | ±2ppm/°C | -55°C ~ 175°C | - | 0.287 L x 0.170 W (7.29mm x 4.32mm) | 0.122 (3.10mm) | |
|
Y4022350R000T9RRES SMD 350 OHM 0.01% 1/5W 0805 |
2,480 | 19.07 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | FRSM | Active | 350 Ohms | ±0.01% | 0.2W, 1/5W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 150°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.025 (0.64mm) | |
|
VSPE6918SY-0M10JRES 100 UOHM 5% 36W NONSTANDARD |
265 | 19.28 |
RFQ |
Nonstandard | Box | VSPE | Obsolete | 100 µOhms | ±5% | 36W | - | Current Sense | ±100ppm/°C | -65°C ~ 170°C | - | 2.726 L x 0.709 W (69.25mm x 18.00mm) | 0.128 (3.25mm) | ||
.jpg)
|
M55342E06B100BPTSRES SMD 100K OHM 0.1% 0.15W 0705 |
2,621 | 12.91 |
RFQ |
0805 (2012 Metric) | Tape & Reel (TR) | Military, MIL-PRF-55342, RM0705 | Active | 100 kOhms | ±0.1% | 0.15W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | ||
|
|
Y4045100R000B0WRES SMD 100 OHM 0.1% 1/20W 0505 |
4,666 | 13.11 |
RFQ |
Datasheet |
0505 (1313 Metric) | Tray | V5X5PT | Active | 100 Ohms | ±0.1% | 0.05W, 1/20W | Metal Foil | Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 150°C | - | 0.050 L x 0.050 W (1.27mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
Y116910R0000F9RRES SMD 10 OHM 1% 0.6W J LEAD |
2,469 | 13.13 |
RFQ |
Datasheet |
3017 J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMR3D | Active | 10 Ohms | ±1% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive, Pulse Withstanding | ±2ppm/°C | -55°C ~ 175°C | - | 0.287 L x 0.170 W (7.29mm x 4.32mm) | 0.122 (3.10mm) | |
|
|
Y112150R0000B9RRES SMD 50 OHM 0.1% 1/4W J LEAD |
1,346 | 20.02 |
RFQ |
Datasheet |
2512 J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMR1D | Active | 50 Ohms | ±0.1% | 0.25W, 1/4W | Metal Foil | Moisture Resistant, Non-Inductive, Pulse Withstanding | ±2ppm/°C | -55°C ~ 175°C | - | 0.236 L x 0.126 W (5.99mm x 3.20mm) | 0.110 (2.79mm) | |
|

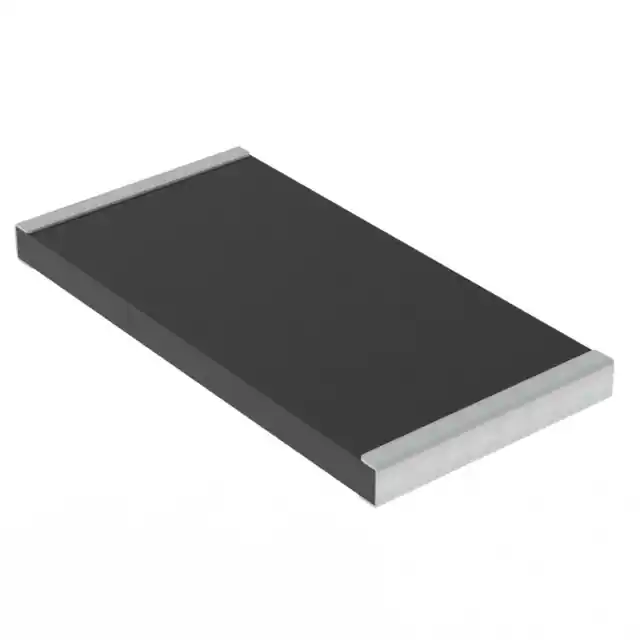

UHVB4020FCD1G00RES 1 GOHM 1% 4020 16KV |
2,322 | 19.08 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 1 GOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.400 L x 0.200 W (10.16mm x 5.08mm) | 0.030 (0.76mm) | |
|
|
UHVB4020FCD2G00RES 2 GOHM 1% 4020 16KV |
2,574 | 19.08 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 2 GOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.400 L x 0.200 W (10.16mm x 5.08mm) | 0.030 (0.76mm) | |
|
Y4066100R000F0RRES SMD 100 OHM 1% 1.2W 2512 |
4,903 | 22.30 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | FRSH | Active | 100 Ohms | ±1% | 1.2W | Metal Foil | Moisture Resistant, Non-Inductive | ±2.5ppm/°C | -55°C ~ 225°C | - | 0.249 L x 0.127 W (6.32mm x 3.23mm) | 0.025 (0.64mm) | |
.jpg)
|
D55342K07B100DRTSVRES SMD 100 OHM 1% 1/4W 1206 |
3,794 | 14.23 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55342, RM1206 | Active | 100 Ohms | ±1% | 0.25W, 1/4W | Thin Film | Military, Non-Inductive | ±100ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.033 (0.84mm) | |
|

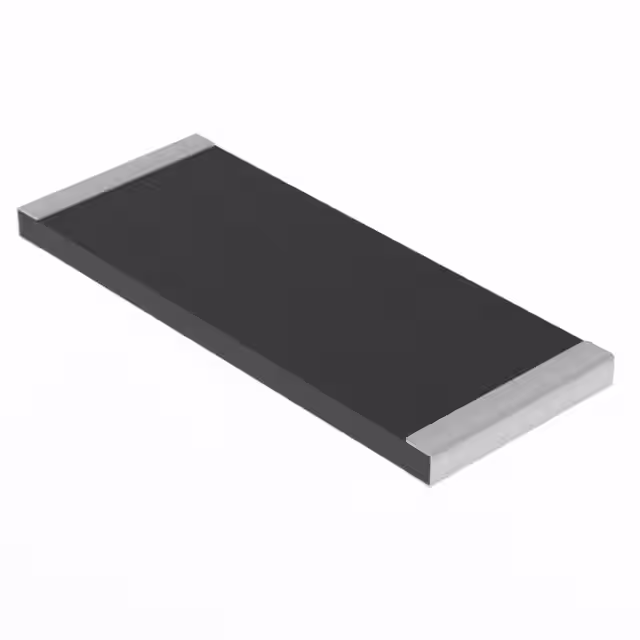

UHVB5020FCD2G00RES 2 GOHM 1% 5020 20KV |
3,262 | 20.78 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 2 GOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.500 L x 0.200 W (12.70mm x 5.08mm) | 0.030 (0.76mm) | |
|
M55342E12B6E00RWSRES SMD 6K OHM 1% 1/10W 0603 |
3,930 | 13.53 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tray | Military, MIL-PRF-55342, RM0603 | Active | 6 kOhms | ±1% | 0.1W, 1/10W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0.064 L x 0.032 W (1.63mm x 0.81mm) | 0.033 (0.84mm) | |
|
|
Y4027125K000T9RRES SMD 125K OHM 0.01% 3/4W 2512 |
4,865 | 31.38 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | FRSM | Active | 125 kOhms | ±0.01% | 0.75W, 3/4W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 150°C | - | 0.249 L x 0.127 W (6.32mm x 3.23mm) | 0.025 (0.64mm) | |
|
Y08500R10000F0RRES 0.1 OHM 1/2W 2516 WIDE |
3,536 | 17.29 |
RFQ |
Datasheet |
Wide 2516 (6440 Metric), 1625 | Tape & Reel (TR),Cut Tape (CT) | VCS1625 | Active | 100 mOhms | ±1% | 0.5W, 1/2W | Metal Foil | Current Sense, Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 150°C | - | 0.160 L x 0.250 W (4.06mm x 6.35mm) | 0.040 (1.02mm) | |
|
CR20103JRES SMD 10K OHM 5% 1/16W 0402 |
14,187 | 0.00 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | CR | Active | 10 kOhms | ±5% | 0.063W, 1/16W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
CR20000JRES SMD 0 OHM 1/16W 0402 |
11,512 | 0.00 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | CR | Active | 0 Ohms | Jumper | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
CR20102JRES SMD 1K OHM 5% 1/16W 0402 |
10,000 | 0.00 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | CR | Active | 1 kOhms | ±5% | 0.063W, 1/16W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) |
