| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLTU0805U6801LST5RES SMD 6.8K OHM 0.01% 1/4W 0805 |
8,053 | 9.22 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTU | Active | 6.8 kOhms | ±0.01% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±2ppm/°C | -55°C ~ 125°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|
HVC4020V5007JETRES SMD 5G OHM 5% 1.5W 4020 |
6,842 | 9.24 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 5 GOhms | ±5% | 1.5W | Thick Film | High Voltage | ±50ppm/°C | -55°C ~ 155°C | - | 0.402 L x 0.201 W (10.20mm x 5.10mm) | 0.031 (0.80mm) | |
|
UHVB2010FCD1G00RES 1 GOHM 1% 2010 6KV |
3,229 | 12.21 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 1 GOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
IGBRD1500BJONCT5RES BACK CONTACT NI 15 OHM 5% 30 |
5,051 | 9.32 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | IGBR | Active | 15 Ohms | ±5% | 4W | Thin Film | Bonding Mountable, Moisture Resistant | ±300ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.079 W (2.00mm x 2.00mm) | 0.012 (0.30mm) | |
.jpg)
|
HVCB2512BDE20M0RES HV 2512 20 MOHM 0.1% 25PPM |
2,045 | 15.86 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 20 MOhms | ±0.1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
HVCB2512BDE2M00RES HV 2512 2 MOHM 0.1% 25PPM |
3,541 | 15.86 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 2 MOhms | ±0.1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
PLTU0805U1002LST5RES SMD 10K OHM 0.01% 1/4W 0805 |
9,729 | 9.68 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTU | Active | 10 kOhms | ±0.01% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±2ppm/°C | -55°C ~ 125°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|

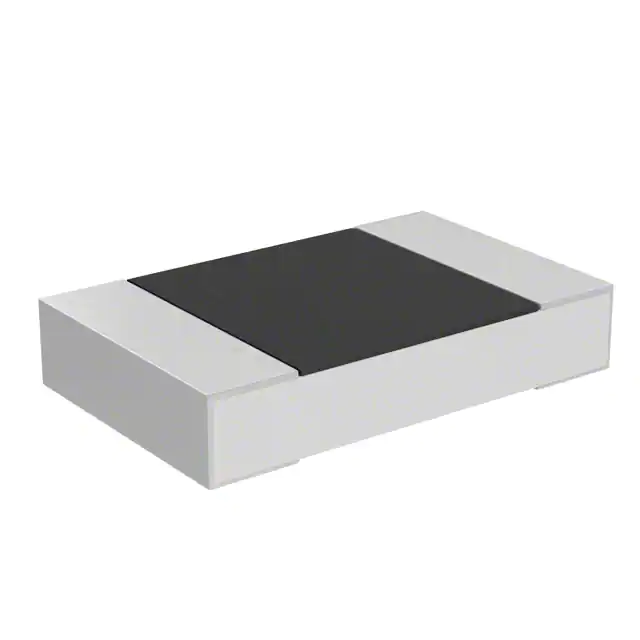

PLTT0805Z2500QGT5RES SMD 250 OHM 0.02% 1/4W 0805 |
8,494 | 9.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTT | Active | 250 Ohms | ±0.02% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 215°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|
|
PLTT0805Z1502QGT5RES SMD 15K OHM 0.02% 1/4W 0805 |
8,284 | 9.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTT | Active | 15 kOhms | ±0.02% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 215°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|
PLTU1206U1502LST5RES SMD 15K OHM 0.01% 0.4W 1206 |
5,938 | 9.82 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTU | Active | 15 kOhms | ±0.01% | 0.4W, 2/5W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±2ppm/°C | -55°C ~ 125°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.033 (0.84mm) | |
|

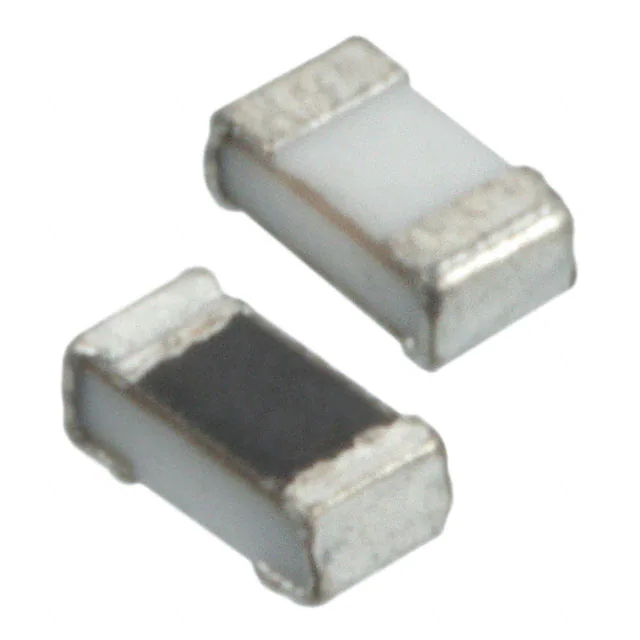

URG1608L-472-L-T05RES SMD 4.7KOHM 0.01% 1/16W 0603 |
9,840 | 8.47 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | URG | Active | 4.7 kOhms | ±0.01% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±2ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
HVCB2512FDC47M0RES SMD 47 MOHMS 1% 2W 2512 |
2,569 | 10.18 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 47 MOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
TDH50HR050JE-TRTO-263 HEATSINKABLE THICK FILM R |
1,221 | 10.30 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tape & Reel (TR),Cut Tape (CT) | TDH50 | Active | 50 mOhms | ±5% | 50W | Thick Film | Non-Inductive | ±200ppm/°C | -55°C ~ 155°C | - | 0.406 L x 0.398 W (10.30mm x 10.10mm) | 0.185 (4.70mm) | |
|

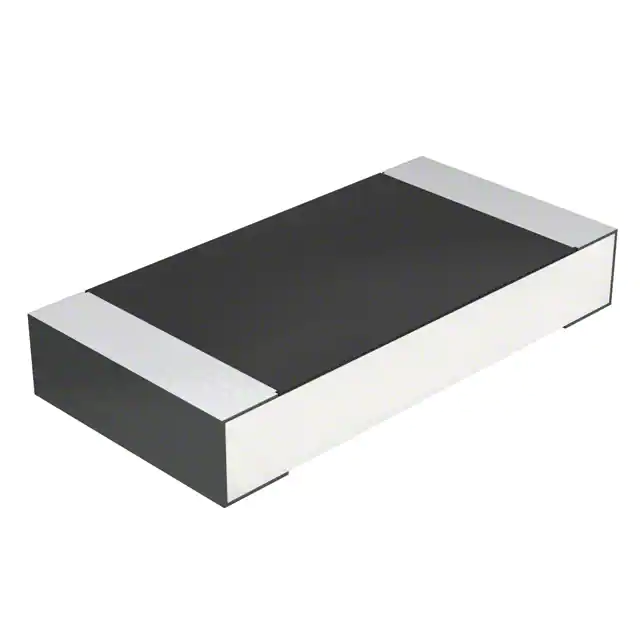

URG3216L-683-L-T05RES SMD 68K OHM 0.01% 1/4W 1206 |
6,383 | 8.79 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | URG | Active | 68 kOhms | ±0.01% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±2ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.022 (0.55mm) | |
|

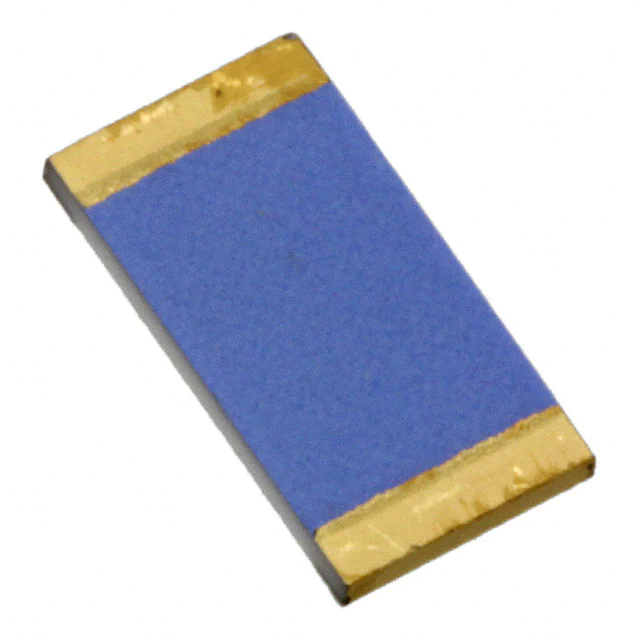

PHT2010Y1001BGTRES SMD 1K OHM 0.1% 1/5W 2010 |
1,402 | 11.36 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | PHT | Active | 1 kOhms | ±0.1% | 0.2W, 1/5W | Thin Film | Anti-Sulfur | ±15ppm/°C | -55°C ~ 215°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.018 (0.45mm) | |
|
MP725-0.020-5%RES 0.02 OHM 5% 25W DPAK |
2,344 | 11.40 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tape & Reel (TR),Cut Tape (CT) | MP725 | Active | 20 mOhms | ±5% | 25W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive | 0/ +300ppm/°C | -55°C ~ 150°C | - | 0.325 L x 0.320 W (8.26mm x 8.13mm) | 0.120 (3.05mm) | |
|
|
HVCB2512BDE500MRES HV 2512 500 MOHM 0.1% 25PPM |
2,518 | 18.23 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 500 MOhms | ±0.1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
UHVB2512FCD1G00RES 1 GOHM 1% 2512 10KV |
4,555 | 14.46 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 1 GOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
CHPHT0603K1004FGTRES SMD 1M OHM 1% 0.0125W 0603 |
2,223 | 11.96 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CHPHT | Active | 1 MOhms | ±1% | 0.0125W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 230°C | - | 0.063 L x 0.035 W (1.60mm x 0.90mm) | 0.020 (0.51mm) | |
|

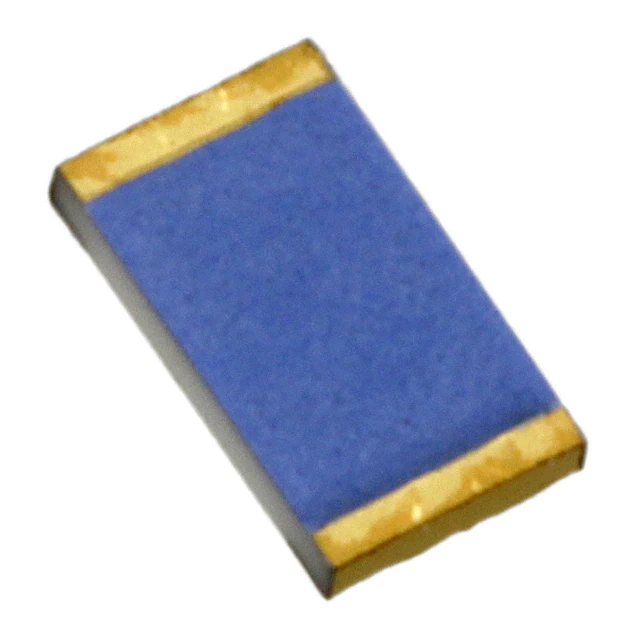

PHT1206Y1001BGTRES SMD 1K OHM 0.1% 1/10W 1206 |
4,452 | 12.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PHT | Active | 1 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur | ±15ppm/°C | -55°C ~ 215°C | - | 0.120 L x 0.063 W (3.06mm x 1.60mm) | 0.018 (0.45mm) |
