| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHPHT0805K4643FGTRES SMD 464K OHM 1% 0.02W 0805 |
6,384 | 7.92 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CHPHT | Active | 464 kOhms | ±1% | 0.02W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 230°C | - | 0.073 L x 0.049 W (1.85mm x 1.25mm) | 0.020 (0.51mm) | |
|

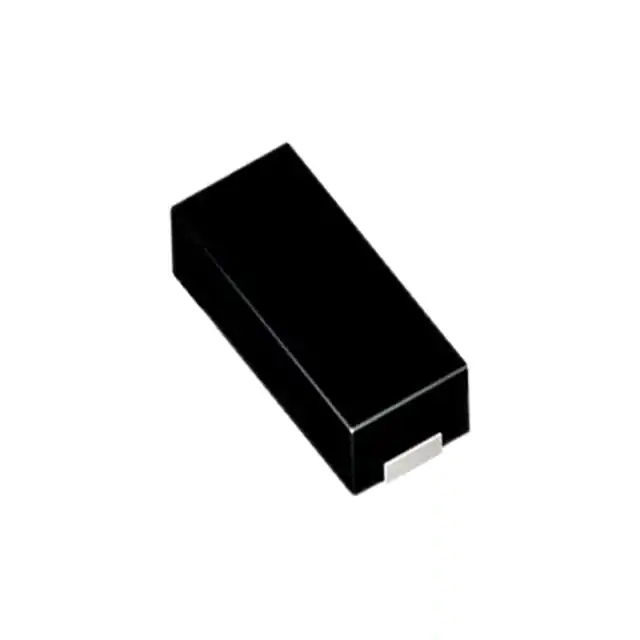

SM-52R000FE6RES SMD 2 OHM 1% 4W |
7,315 | 8.00 |
RFQ |
Datasheet |
8230 J-Lead | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 2 Ohms | ±1% | 4W | Wirewound | - | ±50ppm/°C | -55°C ~ 275°C | - | 0.820 L x 0.295 W (20.83mm x 7.49mm) | 0.305 (7.75mm) | |
|
HVCB0805BDC100MRES HV 0805 100 MOHM 0.1% 50PPM |
7,425 | 8.14 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 100 MOhms | ±0.1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
Y14553K29300A0RRES SMD 3.293K OHM 1/5W 1506 |
5,180 | 6.96 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VSM | Active | 3.293 kOhms | ±0.05% | 0.2W, 1/5W | Metal Foil | Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 150°C | - | 0.150 L x 0.062 W (3.81mm x 1.57mm) | 0.025 (0.64mm) | |
|
PLTT0805Z2522QGT5RES SMD 25.2KOHM 0.02% 1/4W 0805 |
8,625 | 9.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTT | Active | 25.2 kOhms | ±0.02% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 215°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|
HVCB1206BDE2M00RES HV 1206 2 MOHM 0.1% 25PPM |
7,587 | 9.79 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 2 MOhms | ±0.1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.76mm) | |
|
|
HVCB1206BDE1M00RES 1M OHM 0.1% 1/3W 1206 |
7,061 | 9.79 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 1 MOhms | ±0.1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
.jpg)
|
HVCB2512FDC500MRES SMD 500 MOHMS 1% 2W 2512 |
7,543 | 9.79 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 500 MOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
PLTU1206U4901LST5RES SMD 4.9K OHM 0.01% 0.4W 1206 |
6,532 | 9.82 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTU | Active | 4.9 kOhms | ±0.01% | 0.4W, 2/5W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±2ppm/°C | -55°C ~ 125°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.033 (0.84mm) | |
|
CH02016-250RGFTACH 02016 250U 2% F TR E2 |
5,033 | 7.10 |
RFQ |
Datasheet |
02016 (0504 Metric) | Tape & Reel (TR),Cut Tape (CT) | CH | Active | 250 Ohms | ±2% | 0.03W, 1/32W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0.019 L x 0.015 W (0.48mm x 0.39mm) | 0.022 (0.55mm) | |
|
MP725-0.10-1%RES 0.1 OHM 1% 25W DPAK |
5,570 | 8.37 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tape & Reel (TR),Cut Tape (CT) | MP725 | Active | 100 mOhms | ±1% | 25W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive | 0/ +200ppm/°C | -55°C ~ 150°C | - | 0.325 L x 0.320 W (8.26mm x 8.13mm) | 0.120 (3.05mm) | |
|

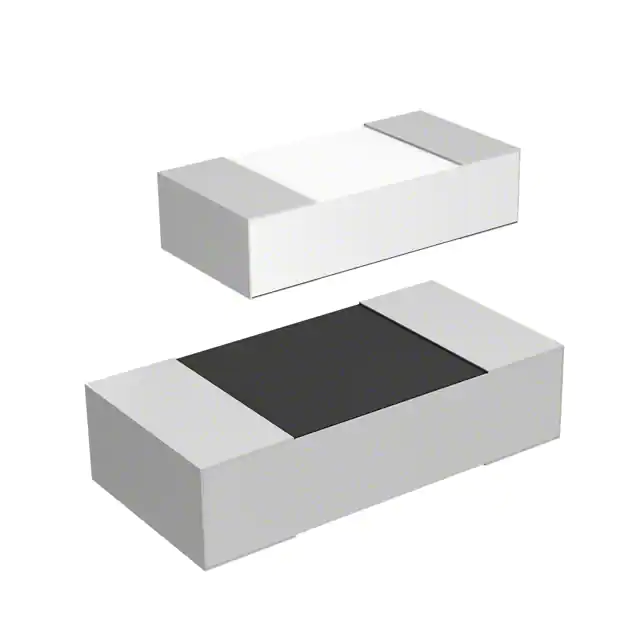

PLTT0603Z1001QGT5RES SMD 1K OHM 0.02% 0.15W 0603 |
7,751 | 8.78 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTT | Active | 1 kOhms | ±0.02% | 0.15W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 215°C | - | 0.064 L x 0.032 W (1.63mm x 0.81mm) | 0.033 (0.84mm) | |
|
URG3216L-1200-L-T051206 SIZE, 0.25W, 120 OHM, 0.01% |
7,045 | 8.79 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | URG | Active | 120 Ohms | ±0.01% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±2ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.022 (0.55mm) | |
|

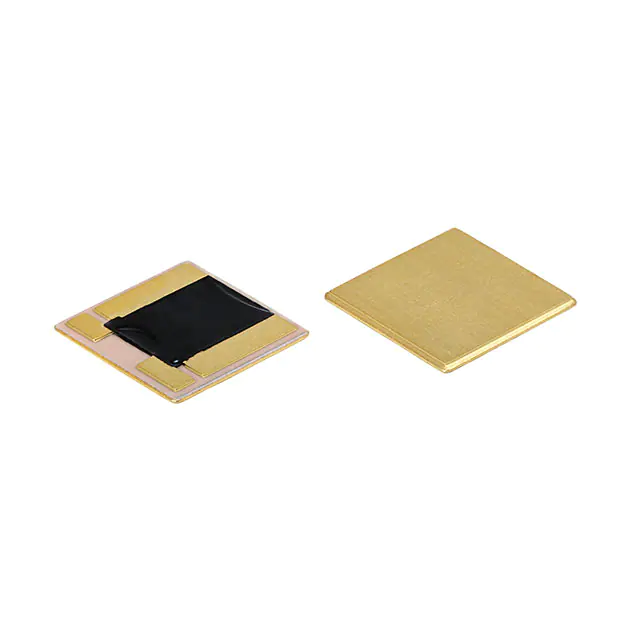

WFPA39394L000FEBRES 0.004 OHM 1% 20W 3939 WIREBO |
6,974 | 8.81 |
RFQ |
Datasheet |
PFC10 (TO-126 SMT) | Tape & Reel (TR),Cut Tape (CT) | WFP | Active | 4 mOhms | ±1% | 20W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±30ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.394 L x 0.394 W (10.01mm x 10.01mm) | 0.030 (0.75mm) | |
|
|
Y11721K00000T9RRES SMD 1K OHM 0.01% 1/10W 0805 |
8,736 | 7.83 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR) | VSM | Active | 1 kOhms | ±0.01% | 0.1W, 1/10W | Metal Foil | Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 150°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.025 (0.64mm) | |
|
TDH50H100RFE-TRTO-263 HEATSINKABLE THICK FILM R |
7,757 | 9.09 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tape & Reel (TR),Cut Tape (CT) | TDH50 | Active | 100 Ohms | ±1% | 50W | Thick Film | Non-Inductive | - | -55°C ~ 155°C | - | 0.406 L x 0.398 W (10.30mm x 10.10mm) | 0.185 (4.70mm) | |
|
|
TDH50H20R0FE-TRTO-263 HEATSINKABLE THICK FILM R |
7,576 | 9.09 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tape & Reel (TR),Cut Tape (CT) | TDH50 | Active | 20 Ohms | ±1% | 50W | Thick Film | Non-Inductive | - | -55°C ~ 155°C | - | 0.406 L x 0.398 W (10.30mm x 10.10mm) | 0.185 (4.70mm) | |
|
|
TDH50H50R0FE-TRTO-263 HEATSINKABLE THICK FILM R |
9,611 | 9.09 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tape & Reel (TR),Cut Tape (CT) | TDH50 | Active | 50 Ohms | ±1% | 50W | Thick Film | Non-Inductive | - | -55°C ~ 155°C | - | 0.406 L x 0.398 W (10.30mm x 10.10mm) | 0.185 (4.70mm) | |
|
|
HVCB2512FDE75M0RES 75M OHM 1% 2W 2512 |
5,328 | 9.16 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 75 MOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
PLTT0603Z2492QGT5RES SMD 24.9K OHM 0.15W 0603 |
7,807 | 9.22 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLTT | Active | 24.9 kOhms | ±0.02% | 0.15W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 215°C | - | 0.064 L x 0.032 W (1.63mm x 0.81mm) | 0.033 (0.84mm) |
.jpg)
