| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HVCB0805BDC500MRES HV 0805 500 MOHM 0.1% 50PPM |
5,002 | 8.90 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 500 MOhms | ±0.1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
PLT0805Z2002AST5RES SMD 20K OHM 0.05% 1/4W 0805 |
5,902 | 5.11 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLT | Active | 20 kOhms | ±0.05% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 125°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|
CH0603-100RJNTARES 100 OHM 5% 1/8W 0603 |
9,504 | 5.22 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CH | Active | 100 Ohms | ±5% | 0.125W, 1/8W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.025 (0.63mm) | |
|
IGBRB1000BJAPCT5RES BACK CONTACT PD 10 OHM 5% 10 |
9,816 | 5.23 |
RFQ |
Datasheet |
0404 (1010 Metric) | Tape & Reel (TR),Cut Tape (CT) | IGBR | Active | 10 Ohms | ±5% | 2W | Thin Film | Bonding Mountable, Moisture Resistant | ±1000ppm/°C | -55°C ~ 125°C | - | 0.039 L x 0.039 W (1.00mm x 1.00mm) | 0.012 (0.30mm) | |
|
IGBRB1000BJANCT5RES BACK CONTACT NI 10 OHM 5% 10 |
5,569 | 5.23 |
RFQ |
Datasheet |
0404 (1010 Metric) | Tape & Reel (TR),Cut Tape (CT) | IGBR | Active | 10 Ohms | ±5% | 2W | Thin Film | Bonding Mountable, Moisture Resistant | ±1000ppm/°C | -55°C ~ 125°C | - | 0.039 L x 0.039 W (1.00mm x 1.00mm) | 0.012 (0.30mm) | |
|
TNPU08052K00HZEN00RES SMD 2K OHM 0.02% 1/8W 0805 |
8,399 | 5.26 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 2 kOhms | ±0.02% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPU080510K0HZEN00RES SMD 10K OHM 0.02% 1/8W 0805 |
5,286 | 5.26 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 10 kOhms | ±0.02% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPU08051K00HZEN00RES SMD 1K OHM 0.02% 1/8W 0805 |
6,235 | 5.26 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 1 kOhms | ±0.02% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
PCNM2512E1001BST5RES SMD 1K OHM 0.1% 6W 2512 |
5,318 | 5.32 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | PCNM | Active | 1 kOhms | ±0.1% | 6W | Thin Film | Flame Proof, Moisture Resistant, Non-Magnetic, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0.259 L x 0.124 W (6.58mm x 3.15mm) | 0.018 (0.46mm) | |
|
|
PCNM2512K8R20FST5RES SMD 8.2 OHM 1% 6W 2512 |
7,886 | 5.32 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | PCNM | Active | 8.2 Ohms | ±1% | 6W | Thin Film | Flame Proof, Moisture Resistant, Non-Magnetic, Safety | ±100ppm/°C | -55°C ~ 155°C | - | 0.259 L x 0.124 W (6.58mm x 3.15mm) | 0.018 (0.46mm) | |
|
CH0402-50RJNPTRES CH 0402 THIN FILM |
8,478 | 4.82 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CH | Active | 50 Ohms | ±5% | 0.05W, 1/20W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.024 W (1.00mm x 0.60mm) | 0.025 (0.63mm) | |
|
|
HVCB0805FDC47M0RES SMD 47 MOHMS 1% 1/5W 0805 |
8,729 | 5.51 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 47 MOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|

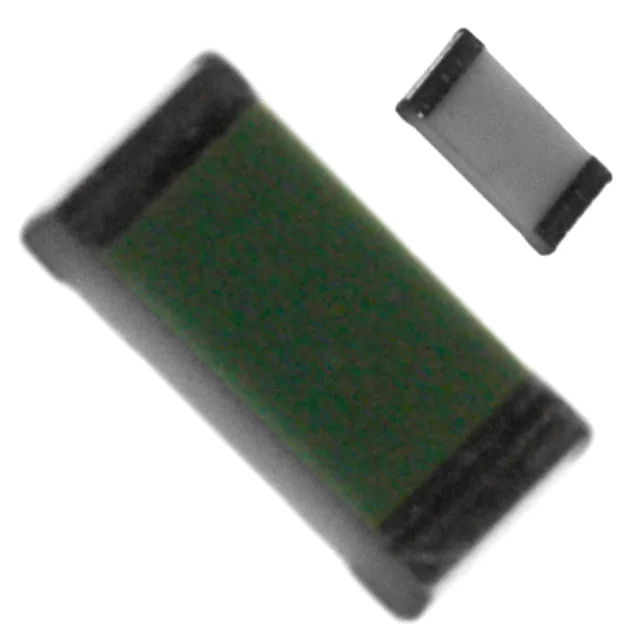

PLT1206Z1001AST5RES SMD 1K OHM 0.05% 0.4W 1206 |
8,212 | 5.51 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PLT | Active | 1 kOhms | ±0.05% | 0.4W, 2/5W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 125°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.033 (0.84mm) | |
.jpg)
|
HVCB2512FDD20M0RES 20M OHM 1% 2W 2512 |
9,872 | 5.51 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 20 MOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
CHPHT0805K4992FGTRES SMD 49.9K OHM 1% 0.02W 0805 |
9,726 | 8.40 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CHPHT | Active | 49.9 kOhms | ±1% | 0.02W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 230°C | - | 0.073 L x 0.049 W (1.85mm x 1.25mm) | 0.020 (0.51mm) | |
|
FCSL150R001JERRES 0.001 OHM 10W 2959 WIDE |
9,013 | 5.67 |
RFQ |
Datasheet |
Wide 5929 (15075 Metric), 2959 | Tape & Reel (TR),Cut Tape (CT) | FCSL | Active | 1 mOhms | ±5% | 10W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.295 L x 0.591 W (7.50mm x 15.00mm) | 0.028 (0.70mm) | |
|
PHPA2512E75R0BST1THIN FILM RES SMD 75 OHM 0.1% 2. |
5,891 | 5.00 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | PHPA | Active | 75 Ohms | ±0.1% | 2.5W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Power, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.259 L x 0.124 W (6.58mm x 3.15mm) | 0.020 (0.51mm) | |
|
|
FCSL150R025FERRES 0.025 OHM 10W 2959 WIDE |
7,413 | 5.72 |
RFQ |
Datasheet |
Wide 5929 (15075 Metric), 2959 | Tape & Reel (TR),Cut Tape (CT) | FCSL | Active | 25 mOhms | ±1% | 10W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 0.295 L x 0.591 W (7.50mm x 15.00mm) | 0.028 (0.70mm) | |
.jpg)
|

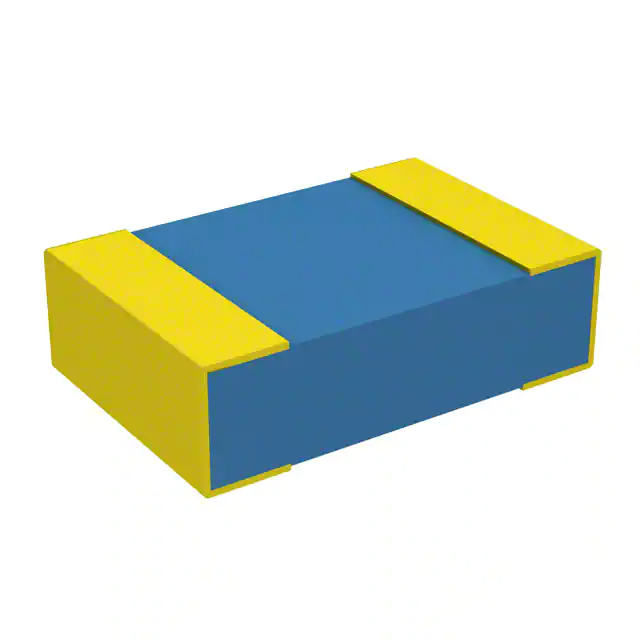

PHT0402E10R0BGTDPHT 0402 10R0 B G TR1000 |
9,393 | 5.82 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | PHT | Active | 10 Ohms | ±0.1% | 0.0189W | Thin Film | Anti-Sulfur | ±30ppm/°C | -55°C ~ 215°C | - | 0.039 L x 0.024 W (1.00mm x 0.60mm) | 0.018 (0.45mm) | |
|
CGSSL1R022JRES 0.022 OHM 5% 1W 2615 |
9,729 | 5.86 |
RFQ |
Datasheet |
2615 (6538 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SL, CGS | Active | 22 mOhms | ±5% | 1W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | - | - | 0.255 L x 0.150 W (6.48mm x 3.81mm) | 0.112 (2.84mm) |
