| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRHV1206AF51M0FKE1RES SMD 51M OHM, 5%, 0.3W, 1206 |
372 | 1917.00 |
RFQ |
-55°C ~ 155°C | Tape & Reel (TR),Cut Tape (CT) | CRHV | Active | 51 MOhms | ±1% | 0.3W | Thick Film | High Voltage, Moisture Resistant | ±100ppm/°C | 1206 | - | 0.125 L x 0.063 W (3.18mm x 1.60mm) | |||
|
|
CRHV1206AF5M00FKF1RES SMD 5M OHM, 1%, 0.3W, 1206 |
989 | 1175.00 |
RFQ |
-55°C ~ 155°C | Tape & Reel (TR),Cut Tape (CT) | CRHV | Active | 5 MOhms | ±1% | 0.3W | Thick Film | High Voltage, Moisture Resistant | ±100ppm/°C | 1206 | - | 0.125 L x 0.063 W (3.18mm x 1.60mm) | |||
|
|
CRHV1206AF50M0FKF1RES SMD 50M OHM, 1%, 0.3W, 1206 |
730 | 962.00 |
RFQ |
-55°C ~ 155°C | Tape & Reel (TR),Cut Tape (CT) | CRHV | Active | 50 MOhms | ±1% | 0.3W | Thick Film | High Voltage, Moisture Resistant | ±100ppm/°C | 1206 | - | 0.125 L x 0.063 W (3.18mm x 1.60mm) | |||
|
HVCB1206FDC250MRES SMD 250 MOHMS 1% 1/3W 1206 |
5,541 | 6.61 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 250 MOhms | ±1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.76mm) | |
|
TNPU06031K00AWEN00TNPU0603 1K0 0.05% 2PPM E52 E3 |
7,674 | 3.52 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 1 kOhms | ±0.05% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±2ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
TNPU12061K00AZEN00RES SMD 1K OHM 0.05% 1/4W 1206 |
6,746 | 3.56 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 1 kOhms | ±0.05% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
PWR263S-20-1500JERES SMD 150 OHM 5% 20W D2PAK |
5,707 | 3.56 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tape & Reel (TR),Cut Tape (CT) | PWR263S-20 | Active | 150 Ohms | ±5% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.192 (4.88mm) | |
|
|
PWR263S-20-47R0JERES SMD 47 OHM 5% 20W D2PAK |
8,297 | 3.56 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tape & Reel (TR),Cut Tape (CT) | PWR263S-20 | Active | 47 Ohms | ±5% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.192 (4.88mm) | |
|
HVCB0805JDE22M0RES 22M OHM 5% 1/5W 0805 |
9,368 | 3.56 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 22 MOhms | ±5% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
TLRS157560QR001FTDGRES 0.001 OHM 1% 5W 1575 |
6,946 | 2.94 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | TLRS | Active | 1 mOhms | ±1% | 5W | Metal Element | Current Sense, Moisture Resistant | ±120ppm/°C | -55°C ~ 170°C | - | 0.598 L x 0.295 W (15.20mm x 7.50mm) | 0.037 (0.95mm) | |
|
|
TLRS157535QR003FTDGRES 0.003 OHM 1% 3.5W 1575 |
6,627 | 2.94 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | TLRS | Active | 3 mOhms | ±1% | 3.5W | Metal Element | Current Sense, Moisture Resistant | ±120ppm/°C | -55°C ~ 170°C | - | 0.598 L x 0.295 W (15.20mm x 7.50mm) | 0.014 (0.35mm) | |
|
PWR163S-25-5R00JERES SMD 5 OHM 5% 25W DPAK |
7,299 | 3.60 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR),Cut Tape (CT) | PWR163 | Active | 5 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.320 L x 0.324 W (8.13mm x 8.22mm) | 0.125 (3.17mm) | |
|
WSC2515R1000FTARES 100M OHM 1% 1W 2515 |
6,615 | 2.95 |
RFQ |
Datasheet |
2515 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSC | Active | 100 mOhms | ±1% | 1W | Wirewound | Automotive AEC-Q200, Pulse Withstanding | ±150ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.250 L x 0.150 W (6.35mm x 3.81mm) | 0.125 (3.17mm) | |
|
TKH45P1K00FE-TRRES 1 KOHM 1% 45W TO252 |
6,176 | 3.62 |
RFQ |
Datasheet |
PFC10 (TO-126 SMT) | Tape & Reel (TR),Cut Tape (CT) | TKH | Active | 1 kOhms | ±1% | 45W | Thick Film | Pulse Withstanding | ±100ppm/°C | -55°C ~ 175°C | - | 0.472 L x 0.323 W (12.00mm x 8.20mm) | 0.039 (1.00mm) | |
|
CSS4527FT2L00RES 0.002 OHM 1% 5W 4527 |
6,038 | 2.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CSS | Active | 2 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.450 L x 0.270 W (11.43mm x 6.85mm) | 0.069 (1.75mm) | |
|
WSC69277R500FEARES WW 5927 7.5 |
6,661 | 2.99 |
RFQ |
Datasheet |
6927 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSC | Active | 7.5 Ohms | ±1% | 3W | Wirewound | Automotive AEC-Q200 | ±50ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.690 L x 0.275 W (17.53mm x 6.98mm) | 0.295 (7.49mm) | |
|

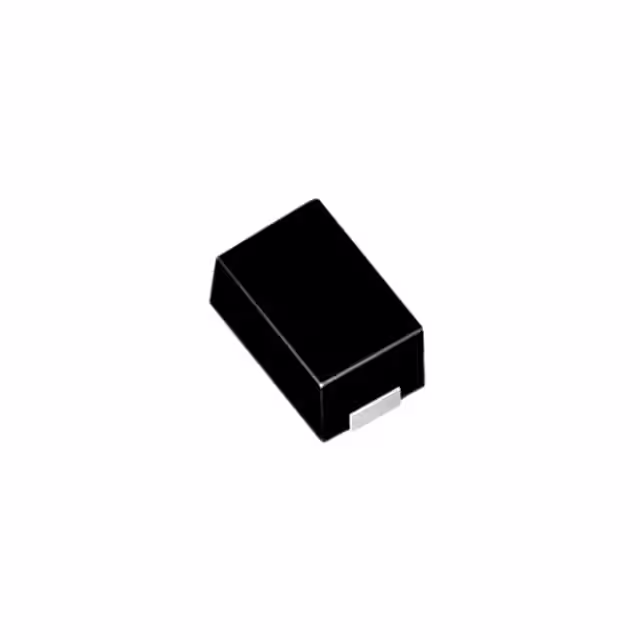

SM-22K770FE6RES SMD 2.77K OHM 1% 1W |
5,191 | 3.68 |
RFQ |
Datasheet |
2615 (6538 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 2.77 kOhms | ±1% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | - | 0.260 L x 0.155 W (6.60mm x 3.94mm) | 0.125 (3.18mm) | |
.jpg)
|
M55342E06B1B00RT5RES SMD 1K OHM 0.1% 0.15W 0705 |
5,975 | 3.91 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55342, RM0705 | Active | 1 kOhms | ±0.1% | 0.15W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|
|
M55342E06B4B99RT5RES SMD 4.99KOHM 0.1% 0.15W 0805 |
9,299 | 3.91 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55342, RM0705 | Active | 4.99 kOhms | ±0.1% | 0.15W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|
|
M55342E06B13B3RT5RES SMD 13.3KOHM 0.1% 0.15W 0805 |
8,574 | 3.91 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55342, RM0705 | Active | 13.3 kOhms | ±0.1% | 0.15W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) |
