| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HVCB0805FDC1K00RES 1K OHM 1% 1/5W 0805 |
7,989 | 3.86 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 1 kOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
HVCB0805FDC1M00RES 1M OHM 1% 1/5W 0805 |
8,733 | 3.86 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 1 MOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
SMF7160KJTSMF 7W 160K 5% TAPED |
9,699 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 160 kOhms | ±5% | 7W | Metal Film | - | ±100ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW712RJTSMW 7W 12R 5% TAPED |
7,297 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 12 Ohms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW7820RJTSMW 7W 820R 5% TAPED |
7,389 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 820 Ohms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW733RJTSMW 7W 33R 5% TAPED |
5,055 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 33 Ohms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW73R0JTSMW 7W 3R0 5% TAPED |
8,107 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 3 Ohms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMF72K2JTSMF 7W 2K2 5% TAPED |
5,370 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 2.2 kOhms | ±5% | 7W | Metal Film | - | ±100ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW7220RJTSMW 7W 220R 5% TAPED |
7,530 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 220 Ohms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW73R9JTSMW 7W 3R9 5% TAPED |
6,541 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 3.9 Ohms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW7R68JTSMW 7W R68 5% TAPED |
5,115 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 680 mOhms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMF7130KJTSMF 7W 130K 5% TAPED |
5,954 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 130 kOhms | ±5% | 7W | Metal Film | - | ±100ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMF768KJTSMF 7W 68K 5% TAPED |
9,424 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 68 kOhms | ±5% | 7W | Metal Film | - | ±100ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|

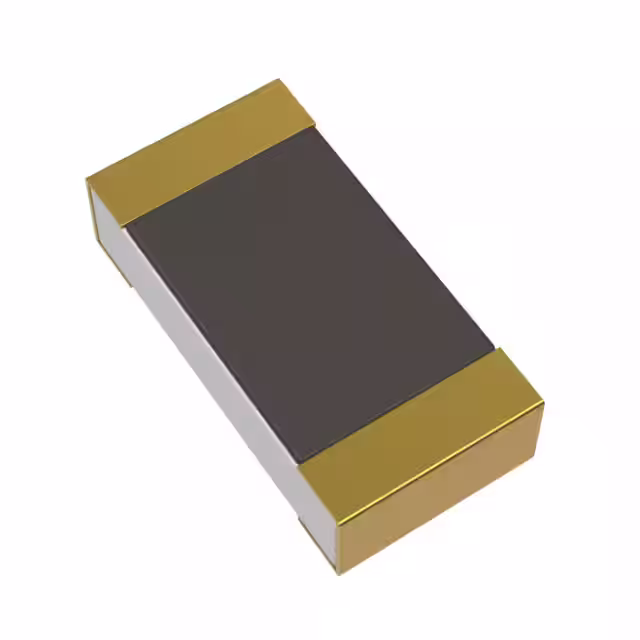

HGCB0603FTC180MRES 180M OHM 1% 0.06W 0603 |
9,258 | 2.46 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HGC | Active | 180 MOhms | ±1% | 0.06W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
|
HGCB0603FTC47M0RES 47M OHM 1% 0.06W 0603 |
8,020 | 2.46 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HGC | Active | 47 MOhms | ±1% | 0.06W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
TLRS105025ER004FTDGRES 0.004 OHM 1% 2.5W 1050 |
7,324 | 2.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | TLRS | Active | 4 mOhms | ±1% | 2.5W | Metal Element | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 170°C | - | 0.413 L x 0.197 W (10.50mm x 5.00mm) | 0.015 (0.37mm) | |
|
|
TLRS105040PR001FTDGRES 0.001 OHM 1% 4W 1050 |
7,562 | 2.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | TLRS | Active | 1 mOhms | ±1% | 4W | Metal Element | Current Sense, Moisture Resistant | ±60ppm/°C | -55°C ~ 170°C | - | 0.413 L x 0.197 W (10.50mm x 5.00mm) | 0.019 (0.47mm) | |
|
WSL25121L000FTA18RES 0.001 OHM 1% 2W 2512 |
5,838 | 3.32 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL-HP | Active | 1 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±275ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | |
|
PWR163S-25-2500FERES SMD 250 OHM 1% 25W DPAK |
6,505 | 3.34 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR),Cut Tape (CT) | PWR163 | Active | 250 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.320 L x 0.324 W (8.13mm x 8.22mm) | 0.125 (3.17mm) | |
|
TNPU120651K0AZEA00RES 51 KOHM 0.05% 1/4W 1206 |
5,011 | 3.35 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 51 kOhms | ±0.05% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) |
