| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPJ0J682MHD6TNCAP ALUM 6800UF 20% 6.3V RADIAL |
9,786 | 2.04 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.21 A @ 10 kHz | 39 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPJ1E561MHD6CAP ALUM 560UF 20% 25V RADIAL |
7,211 | 1.08 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 560 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.06 A @ 10 kHz | 100 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | - | Through Hole |
|
UHV1A272MHDCAP ALUM 2700UF 20% 10V RADIAL |
6,697 | 1.10 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 2700 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 2.475 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPM2G4R7MHDCAP ALUM 4.7UF 20% 400V RADIAL |
6,852 | 1.10 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 4.7 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 88 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UHV0J272MPDCAP ALUM 2700UF 20% 6.3V RADIAL |
9,170 | 1.11 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 2700 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 2.475 A @ 100 kHz | 17 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B41458B9159M000CAP ALUM 15000UF 20% 100V SCREW |
2,922 | 38.48 |
RFQ |
Datasheet |
Bulk | B41458 | Active | 15000 µF | ±20% | 100 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 12 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
UPJ1V182MHD6TNCAP ALUM 1800UF 20% 35V RADIAL |
5,294 | 2.11 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.29 A @ 10 kHz | 34 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
B41580A9109M000CAP ALUM 10000UF 20% 100V SCREW |
2,487 | 38.77 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 10000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 12 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
UBT2C220MPDCAP ALUM 22UF 20% 160V RADIAL |
8,962 | 1.12 |
RFQ |
Datasheet |
Bulk | UBT | Active | 22 µF | ±20% | 160 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 115 mA @ 120 Hz | 207 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ULD2G8R2MPDCAP ALUM 8.2UF 20% 400V RADIAL |
8,929 | 1.12 |
RFQ |
Datasheet |
Bulk | ULD | Not For New Designs | 8.2 µF | ±20% | 400 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 88 mA @ 120 Hz | 167.2 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.709 (18.00mm) | - | Through Hole |
|
UPJ1K121MPDCAP ALUM 120UF 20% 80V RADIAL |
7,757 | 1.12 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 120 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 406 mA @ 120 Hz | - | 180 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UKL0J222KHDCAP ALUM 2200UF 10% 6.3V RADIAL |
7,001 | 1.13 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 2200 µF | ±10% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
UKL0J152KHDCAP ALUM 1500UF 10% 6.3V RADIAL |
6,735 | 1.13 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 1500 µF | ±10% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.0465 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UUE1A471MNS1MSCAP ALUM 470UF 20% 10V SMD |
7,672 | 1.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUE | Active | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 502.5 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
ALS30A152KF400CAP ALUM 1500UF 20% 400V SCREW |
2,672 | 39.46 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 1500 µF | ±20% | 400 V | 92mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.8 A @ 100 Hz | 13.1 A @ 10 kHz | 65 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
PSU59015ACAP ALUM 590UF 125V QC TERM |
4,901 | 43.01 |
RFQ |
Datasheet |
Bulk | PSU | Active | 590 µF | 0%, +20% | 125 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 4.375 (111.13mm) | - | Chassis Mount |
|
UBW1A331MPDCAP ALUM 330UF 20% 10V RADIAL |
8,157 | 1.14 |
RFQ |
Datasheet |
Bulk | UBW | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 310 mA @ 120 Hz | 620 mA @ 100 kHz | 150 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
|
UBW1A471MPDCAP ALUM 470UF 20% 10V RADIAL |
7,769 | 1.14 |
RFQ |
Datasheet |
Bulk | UBW | Active | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 340 mA @ 120 Hz | 680 mA @ 100 kHz | 100 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
860011378008CAP ALUM 33UF 20% 400V RADIAL |
9,373 | 1.73 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG8 | Active | 33 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 351.9 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.043 (26.50mm) | - | Through Hole |
|

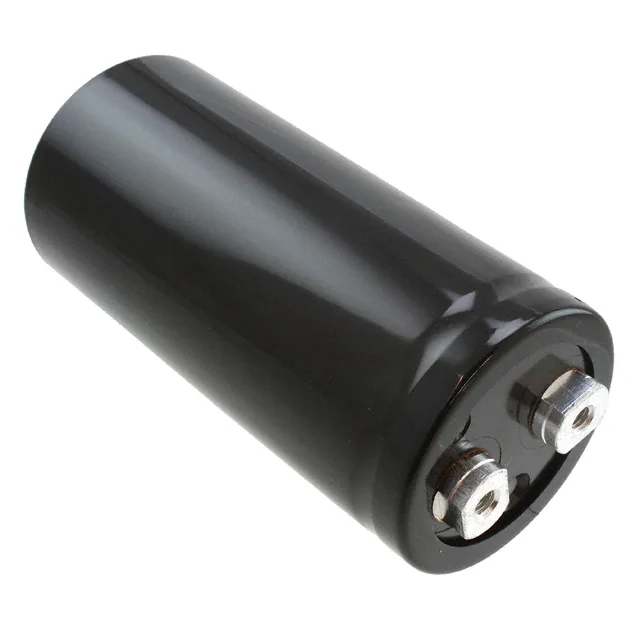

ALS40A103KF100CAP ALUM 10000UF 20% 100V SCREW |
3,487 | 39.61 |
RFQ |
Datasheet |
Bulk | ALS40 | Active | 10000 µF | ±20% | 100 V | 21mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.9 A @ 100 Hz | 11.5 A @ 10 kHz | 18 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
