| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

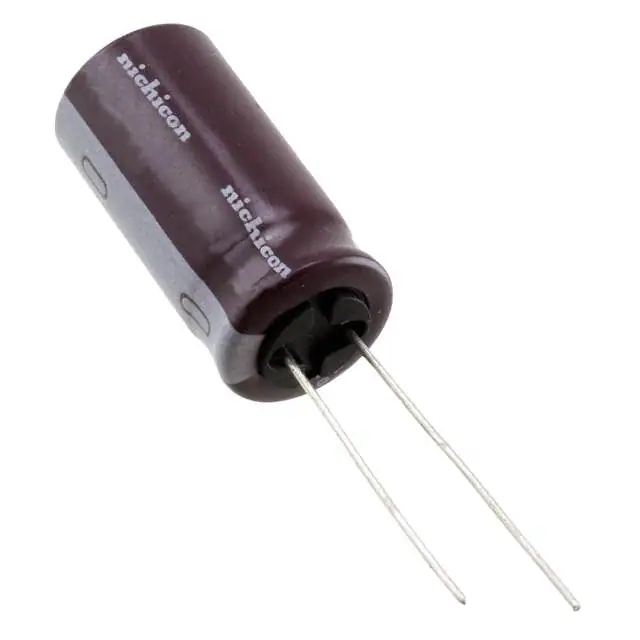

UPTW6220MHD1TOCAP ALUM 22UF 20% 420V RADIAL |
5,049 | 1.50 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPT | Active | 22 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 320 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPM0J182MHD6TNCAP ALUM 1800UF 20% 6.3V RADIAL |
6,443 | 1.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 1800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.27 A @ 10 kHz | 55 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UPJ1J271MHD6TNCAP ALUM 270UF 20% 63V RADIAL |
7,066 | 1.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 270 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 965 mA @ 120 Hz | 1.29 A @ 10 kHz | 88 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UPJ1E681MHD6TNCAP ALUM 680UF 20% 25V RADIAL |
6,002 | 1.33 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 680 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | 84 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
ALS70A133KE100CAP ALUM 13000UF 20% 100V SCREW |
4,769 | 27.25 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 13000 µF | ±20% | 100 V | 31mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.3 A @ 100 Hz | 17.3 A @ 10 kHz | 26 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
CGS101T450R2CCAP ALUM 100UF 450V SCREW |
4,262 | 27.40 |
RFQ |
Datasheet |
Bulk | CGS | Active | 100 µF | -10%, +50% | 450 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 2.125 (53.98mm) | - | Chassis Mount |
|
UPM0J272MHD6TNCAP ALUM 2700UF 20% 6.3V RADIAL |
8,813 | 1.34 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 2700 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.5 A @ 10 kHz | 44 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UPM1A272MHD6TNCAP ALUM 2700UF 20% 10V RADIAL |
6,060 | 1.34 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 2700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 1.74 A @ 10 kHz | 35 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
860010678021CAP ALUM 560UF 20% 50V RADIAL |
8,863 | 1.07 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG8 | Active | 560 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 902 mA @ 120 Hz | 1.24476 A @ 100 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

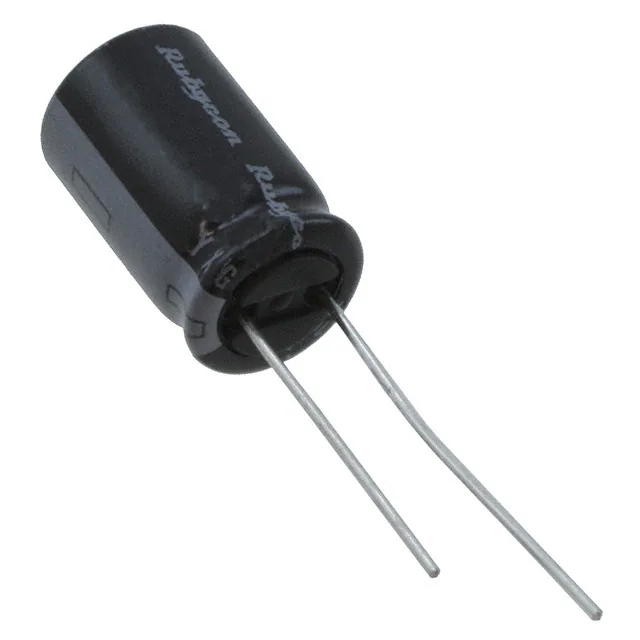

6.3YXG1200MEFC10X16CAP ALUM 1200UF 20% 6.3V RADIAL |
10,046 | 0.71 |
RFQ |
Datasheet |
Bulk | YXG | Active | 1200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 726 mA @ 120 Hz | 1.21 A @ 100 kHz | 60 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
UPM1A152MHD6TNCAP ALUM 1500UF 20% 10V RADIAL |
6,132 | 1.36 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 1500 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.33 A @ 10 kHz | 50 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
EEE-FN0J152VCAP ALUM 1.5UF 20% 6.3V SMD |
9,073 | 1.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN, Anti-Vibration | Active | 1.5 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UPM1K560MPD6CAP ALUM 56UF 20% 80V RADIAL |
12,427 | 0.73 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 56 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 305 mA @ 120 Hz | 500 mA @ 10 kHz | 360 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UPS1E152MHD1TNCAP ALUM 1500UF 20% 25V RADIAL |
6,970 | 1.39 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 1500 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.653 A @ 120 Hz | 1.9 A @ 100 kHz | 38 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPM1A821MPDCAP ALUM 820UF 20% 10V RADIAL |
11,997 | 0.74 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 820 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 835 mA @ 120 Hz | 985 mA @ 10 kHz | 70 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
860040378011CAP ALUM 1000UF 20% 16V RADIAL |
7,630 | 1.13 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATUL | Active | 1000 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.065 A @ 120 Hz | 1.42 A @ 100 kHz | 50 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
LNR2C472MSECAP ALUM 4700UF 20% 160V SCREW |
2,005 | 28.47 |
RFQ |
Datasheet |
Bulk | LNR | Active | 4700 µF | ±20% | 160 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5 A @ 120 Hz | 6 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
CGS892U025R3CCAP ALUM 8900UF 25V SCREW |
4,239 | 28.69 |
RFQ |
Datasheet |
Bulk | CGS | Active | 8900 µF | -10%, +75% | 25 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 8.32 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
UPM0J821MPD6CAP ALUM 820UF 20% 6.3V RADIAL |
12,705 | 0.76 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 820 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 715 mA @ 120 Hz | 840 mA @ 10 kHz | 95 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
CGS201T250R2CCAP ALUM 200UF 250V SCREW |
2,179 | 28.86 |
RFQ |
Datasheet |
Bulk | CGS | Active | 200 µF | -10%, +50% | 250 V | 241mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 2.125 (53.98mm) | - | Chassis Mount |
