| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM1H181MHD6CAP ALUM 180UF 20% 50V RADIAL |
12,197 | 0.93 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 180 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 605 mA @ 120 Hz | 845 mA @ 10 kHz | 95 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.669 (17.00mm) | - | Through Hole |
|
UPM1K151MHD6TNCAP ALUM 150UF 20% 80V RADIAL |
9,136 | 1.77 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 150 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | - | 180 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UUG2A680MNQ1MSCAP ALUM 68UF 20% 100V SMD |
8,200 | 1.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUG | Not For New Designs | 68 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|

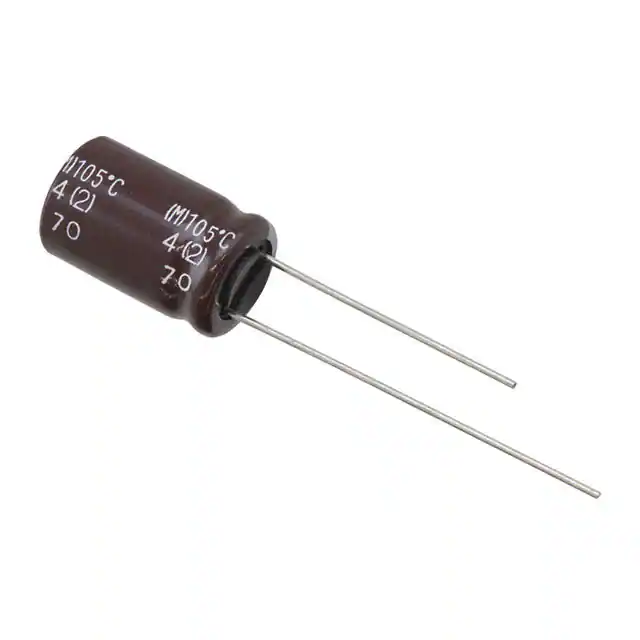

EKZN101ELL820MJ16SCAP ALUM 82UF 20% 100V RADIAL |
10,336 | 0.96 |
RFQ |
Datasheet |
Bulk | KZN | Active | 82 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 416 mA @ 120 Hz | 1.04 A @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UPM1E561MPDCAP ALUM 560UF 20% 25V RADIAL |
10,089 | 0.96 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 560 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 120 Hz | 1.26 A @ 10 kHz | 55 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPJ1E681MPDCAP ALUM 680UF 20% 25V RADIAL |
14,440 | 0.96 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 680 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.42 A @ 10 kHz | 72 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
UPJ1J181MPDCAP ALUM 180UF 20% 63V RADIAL |
11,933 | 0.96 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 180 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.11 A @ 10 kHz | 110 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
PSU5330BCAP ALUM 53UF 330V QC TERM |
3,940 | 39.53 |
RFQ |
Datasheet |
Bulk | PSU | Active | 53 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 3.435 (87.25mm) | - | Chassis Mount |
|
UHV1V561MPDCAP ALUM 560UF 20% 35V RADIAL |
11,347 | 0.97 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 560 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 2.16 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ALS80A163KF100CAP ALUM 16000UF 20% 100V SCREW |
1,948 | 34.62 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 16000 µF | ±20% | 100 V | 23mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.7 A @ 100 Hz | 17.8 A @ 10 kHz | 19 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
860130678010CAP ALUM 470UF 20% 50V RADIAL |
8,593 | 1.49 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATET | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.242 A @ 100 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UUJ1J680MNQ1MSCAP ALUM 68UF 20% 63V SMD |
8,366 | 1.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUJ | Not For New Designs | 68 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 350 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
500C153T050BC2BCAP ALUM 15000UF 50V SCREW |
4,921 | 35.42 |
RFQ |
Datasheet |
Bulk | 500C | Active | 15000 µF | -10%, +50% | 50 V | 20mOhm @ 120Hz | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
CGS251T450R4CCAP ALUM 250UF 450V SCREW |
1,760 | 35.53 |
RFQ |
Datasheet |
Bulk | CGS | Active | 250 µF | -10%, +50% | 450 V | 308mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
UPM2A680MPDCAP ALUM 68UF 20% 100V RADIAL |
6,051 | 1.02 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 68 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 795 mA @ 10 kHz | 210 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
PSU40065ACAP ALUM 400UF 165V QC TERM |
1,040 | 41.54 |
RFQ |
Datasheet |
Bulk | PSU | Active | 400 µF | 0%, +20% | 165 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 3.375 (85.73mm) | - | Chassis Mount |
|
UPM1K391MHD6TNCAP ALUM 390UF 20% 80V RADIAL |
5,157 | 1.97 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 390 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.45 A @ 10 kHz | 89 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-HD1A471CAP ALUM 470UF 20% 10V RADIAL |
7,633 | 1.05 |
RFQ |
Datasheet |
Bulk | HD | Active | 470 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 375 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPM2V4R7MPDCAP ALUM 4.7UF 20% 350V RADIAL |
7,694 | 1.06 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 4.7 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 104 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
URZ0J222MHDCAP ALUM 2200UF 20% 6.3V RADIAL |
5,574 | 1.07 |
RFQ |
Datasheet |
Bulk | URZ | Active | 2200 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 635 mA @ 120 Hz | 730.25 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.689 (17.50mm) | - | Through Hole |
