| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

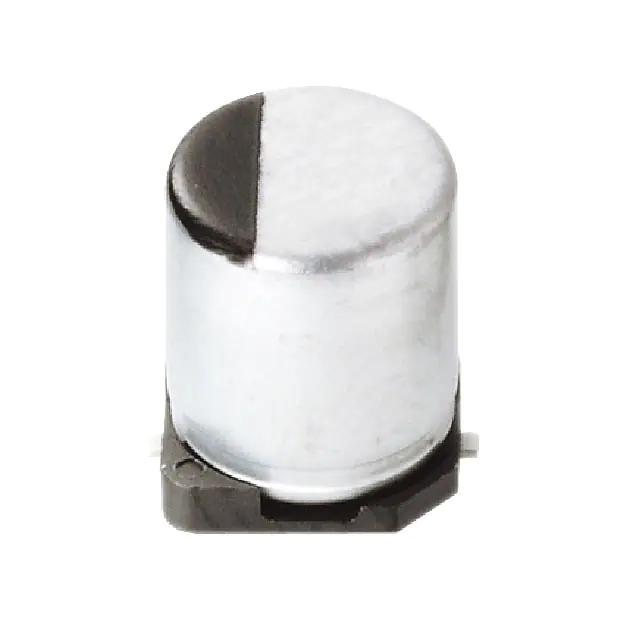

EEE-TC1C391UPCAP ALUM 390UF 20% 16V SMD |
7,058 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 390 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1E221UPCAP ALUM 220UF 20% 25V SMD |
9,448 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 220 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1E331UPCAP ALUM 330UF 20% 25V SMD |
6,065 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 330 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1V221UPCAP ALUM 220UF 20% 35V SMD |
6,982 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 220 µF | ±20% | 35 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-FS1C472SBCAP ALUM 4700UF 20% 16V RADIAL |
6,714 | 2.25 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FS1V182SBCAP ALUM 1800UF 20% 35V RADIAL |
7,627 | 2.25 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FC1J221SCAP ALUM 220UF 20% 63V RADIAL |
7,994 | 1.19 |
RFQ |
Datasheet |
Bulk | FC | Active | 220 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 835.3 mA @ 120 Hz | 1.285 A @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
EEU-FC1H331CAP ALUM 330UF 20% 50V RADIAL |
7,088 | 1.19 |
RFQ |
Datasheet |
Bulk | FC | Active | 330 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 962 mA @ 120 Hz | 1.48 A @ 100 kHz | 63 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
UPW1H561MHDCAP ALUM 560UF 20% 50V RADIAL |
6,459 | 1.19 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 560 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.374 A @ 120 Hz | 1.832 A @ 100 kHz | 50 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
ELXZ160ELL122MJ25SCAP ALUM 1200UF 20% 16V RADIAL |
6,030 | 1.19 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 1200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 864 mA @ 120 Hz | 1.44 A @ 100 kHz | 45 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
ELXZ630ELL331MJ30SCAP ALUM 330UF 20% 63V RADIAL |
5,776 | 1.19 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 330 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 650 mA @ 120 Hz | 1.3 A @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
UVP1J4R7MEDCAP ALUM 4.7UF 20% 63V RADIAL |
12,366 | 0.56 |
RFQ |
Datasheet |
Bulk | UVP | Not For New Designs | 4.7 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UHD1A681MPDCAP ALUM 680UF 20% 10V RADIAL |
10,354 | 0.56 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 680 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 746.25 mA @ 120 Hz | 995 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UHV1A681MPDCAP ALUM 680UF 20% 10V RADIAL |
14,673 | 0.56 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 680 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 594 mA @ 120 Hz | 990 mA @ 100 kHz | 59 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
UHV1V151MPDCAP ALUM 150UF 20% 35V RADIAL |
12,302 | 0.56 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 150 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 328 mA @ 120 Hz | - | 59 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPM1H220MEDCAP ALUM 22UF 20% 50V RADIAL |
12,491 | 0.56 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 195 mA @ 10 kHz | 650 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-FT0J152GPCAP ALUM 1500UF 20% 6.3V SMD |
5,790 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 1500 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FT1C681GPCAP ALUM 680UF 20% 16V SMD |
6,621 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 680 µF | ±20% | 16 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UHE1A222MHD6CAP ALUM 2200UF 20% 10V RADIAL |
5,735 | 1.20 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 2200 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 1.9 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UPW2D470MHDCAP ALUM 47UF 20% 200V RADIAL |
8,812 | 1.20 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 47 µF | ±20% | 200 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 352 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
