| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16TLV1500M12.5X13.5CAP ALUM 1500UF 20% 16V SMD |
7,082 | 1.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TLV | Active | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 660 mA @ 120 Hz | 1.1 A @ 100 kHz | 65 mOhms | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|

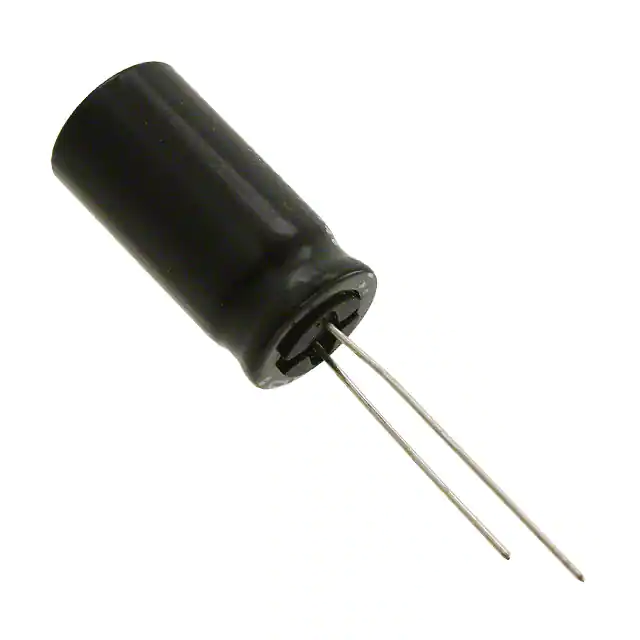

UVR2A331MHDCAP ALUM 330UF 20% 100V RADIAL |
8,334 | 1.14 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|

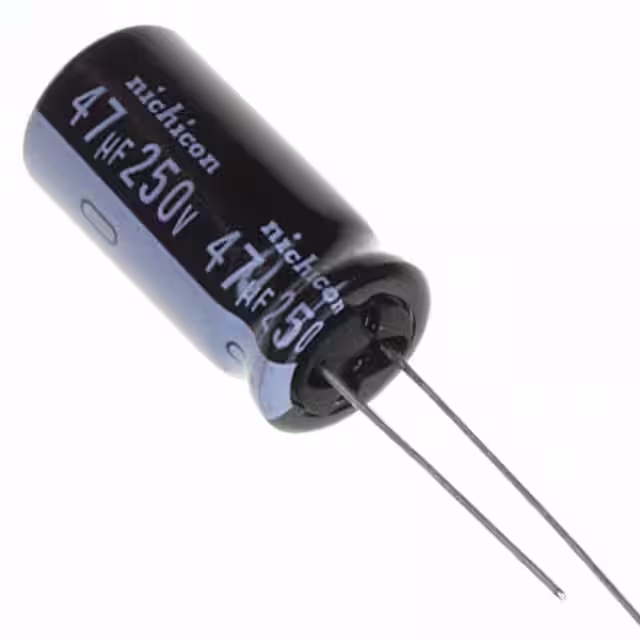

UVZ2E470MHDCAP ALUM 47UF 20% 250V RADIAL |
5,427 | 1.14 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 47 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 210 mA @ 120 Hz | 336 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UHE1E152MHDCAP ALUM 1500UF 20% 25V RADIAL |
7,133 | 1.14 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 1500 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.784 A @ 120 Hz | 2.23 A @ 100 kHz | 27 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
UPW0J222MHDCAP ALUM 2200UF 20% 6.3V RADIAL |
9,384 | 1.14 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.655 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
UCV1E561MNL1GSCAP ALUM 560UF 20% 25V SMD |
5,523 | 1.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCV | Active | 560 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 425 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UPM1H102MHD6TNCAP ALUM 1000UF 20% 50V RADIAL |
9,462 | 2.17 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 1000 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.02 A @ 10 kHz | 30 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPW0J682MHD1TNCAP ALUM 6800UF 20% 6.3V RADIAL |
5,741 | 2.17 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.176 A @ 120 Hz | 2.56 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UVY2D4R7MEDCAP ALUM 4.7UF 20% 200V RADIAL |
11,660 | 0.54 |
RFQ |
Datasheet |
Bulk | UVY | Not For New Designs | 4.7 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 40.25 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
ECE-A1CN471UCAP ALUM 470UF 20% 16V RADIAL |
5,319 | 1.15 |
RFQ |
Datasheet |
Bulk | SU | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 380 mA @ 120 Hz | 646 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEU-FC1C152LCAP ALUM 1500UF 20% 16V RADIAL |
9,374 | 1.15 |
RFQ |
Datasheet |
Bulk | FC | Active | 1500 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.452 A @ 120 Hz | 1.815 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
EEU-FC1V681LCAP ALUM 680UF 20% 35V RADIAL |
5,911 | 1.15 |
RFQ |
Datasheet |
Bulk | FC | Active | 680 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.361 A @ 120 Hz | 1.815 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
UVZ2V220MHDCAP ALUM 22UF 20% 350V RADIAL |
6,435 | 1.15 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 22 µF | ±20% | 350 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 184 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FM1C152CAP ALUM 1500UF 20% 16V RADIAL |
9,441 | 1.15 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EKXG161ELL470MJ20SCAP ALUM 47UF 20% 160V RADIAL |
7,901 | 1.15 |
RFQ |
Datasheet |
Bulk | KXG | Active | 47 µF | ±20% | 160 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
Series.jpg)
|

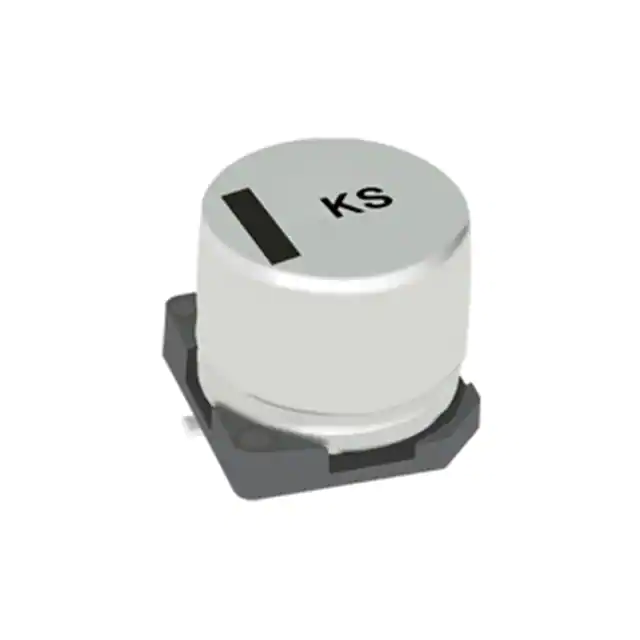

EEE-FK1V471SLCAP ALUM 470UF 20% 35V SMD |
6,183 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS, Halogen Free | Active | 470 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FK1A122SLCAP ALUM 1200UF 20% 10V SMD |
7,212 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS, Halogen Free | Active | 1200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
URS2E101MHD1TNCAP ALUM 100UF 20% 250V RADIAL |
7,512 | 2.18 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 100 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 944 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UCQ1E101MCL1GSCAP ALUM 100UF 20% 25V SMD |
5,922 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCQ | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 120 mA @ 120 Hz | 180 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.307 (7.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-FK0J352SQCAP ALUM 3500UF 20% 6.3V SMD |
7,077 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 3500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
