| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-FK1A242SQCAP ALUM 2400UF 20% 10V SMD |
7,619 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 2400 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
|
EEE-FK1C182SQCAP ALUM 1800UF 20% 16V SMD |
6,866 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 1800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
EEE-HBH101UAPCAP ALUM 100UF 20% 50V SMD |
6,473 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 250 mA @ 120 Hz | 425 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HBH221UAPCAP ALUM 220UF 20% 50V SMD |
6,766 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 270 mA @ 120 Hz | 459 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEE-FK0J182SPCAP ALUM 1800UF 20% 6.3V SMD |
9,412 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 1800 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FK1C102SPCAP ALUM 1000UF 20% 16V SMD |
6,764 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 1000 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FK1E681SPCAP ALUM 680UF 20% 25V SMD |
5,582 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 680 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FK1H271SPCAP ALUM 270UF 20% 50V SMD |
7,618 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 270 µF | ±20% | 50 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 435.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEU-FC0J332CAP ALUM 3300UF 20% 6.3V RADIAL |
6,344 | 1.16 |
RFQ |
Datasheet |
Bulk | FC | Active | 3300 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.407 A @ 120 Hz | 1.655 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
UCZ1E221MCL1GSCAP ALUM 220UF 20% 25V SMD |
8,866 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 220 µF | ±20% | 25 V | 150mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCZ1E331MCL1GSCAP ALUM 330UF 20% 25V SMD |
5,299 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 330 µF | ±20% | 25 V | 150mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

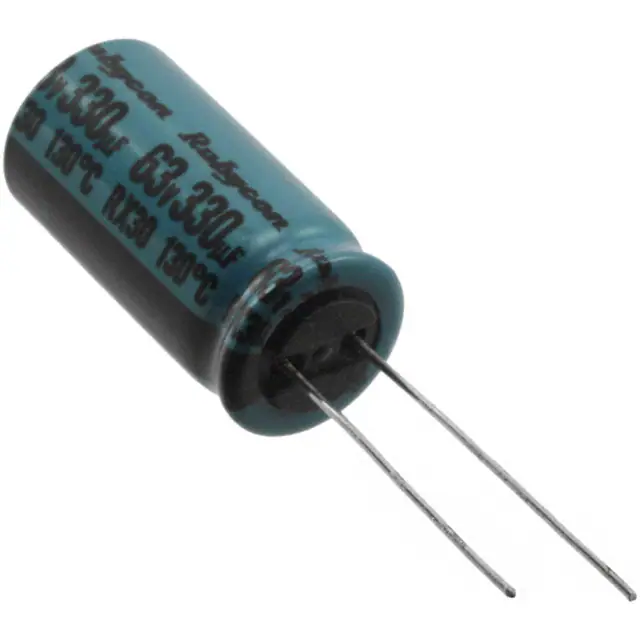

63RX30330MG412.5X25CAP ALUM 330UF 20% 63V RADIAL |
9,898 | 1.22 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RX30 | Active | 330 µF | ±20% | 63 V | - | 4000 Hrs @ 130°C | -40°C ~ 130°C | Polar | AEC-Q200 | Automotive | 700 mA @ 120 Hz | 1 A @ 100 kHz | 72 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESMG6R3ELL332MJ20SCAP ALUM 3300UF 20% 6.3V RADIAL |
8,595 | 1.16 |
RFQ |
Datasheet |
Bulk | SMG | Active | 3300 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.185 A @ 120 Hz | 1.2798 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UHW0J272MPDCAP ALUM 2700UF 20% 6.3V RADIAL |
8,279 | 1.16 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 2700 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.875 A @ 120 Hz | 2.5 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ECA-0JM682CAP ALUM 6800UF 20% 6.3V RADIAL |
5,613 | 1.16 |
RFQ |
Datasheet |
Bulk | M-A | Active | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 2.159 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FC1C152CAP ALUM 1500UF 20% 16V RADIAL |
8,229 | 1.29 |
RFQ |
Datasheet |
Bulk | FC | Active | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.324 A @ 120 Hz | 1.655 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
EEU-FC0J272CAP ALUM 2700UF 20% 6.3V RADIAL |
9,306 | 1.16 |
RFQ |
Datasheet |
Bulk | FC | Active | 2700 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.407 A @ 120 Hz | 1.655 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
EEU-FC1A182CAP ALUM 1800UF 20% 10V RADIAL |
6,843 | 1.16 |
RFQ |
Datasheet |
Bulk | FC | Active | 1800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.324 A @ 120 Hz | 1.655 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
UPW1J391MHDCAP ALUM 390UF 20% 63V RADIAL |
6,297 | 1.16 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 390 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.72 A @ 100 kHz | 70 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
UPM1H331MPDCAP ALUM 330UF 20% 50V RADIAL |
5,957 | 1.16 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 330 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 995 mA @ 120 Hz | 1.3 A @ 10 kHz | 55 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.319 (33.50mm) | - | Through Hole |
