| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U4562V17CAP FILM 5600PF 5% 400VDC 1913 |
13,016 | 0.95 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 5600 pF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.079 (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
F612JF272K400RCAP FILM 2700PF 10% 400VDC RAD |
14,862 | 0.35 |
RFQ |
Datasheet |
Radial | Box | F612 | Active | 2700 pF | ±10% | 200V | 400V | Polyester, Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
890334023007CSCAP FILM 0.012UF 10% 310VAC RAD |
10,264 | 0.35 |
RFQ |
Datasheet |
Radial | Bulk | WCAP-FTXX | Active | 0.012 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.453 (11.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
|
890324023003CSCAP FILM 6800PF 10% 275VAC RAD |
11,731 | 0.35 |
RFQ |
Datasheet |
Radial | Bulk | WCAP-FTX2 | Active | 6800 pF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
LDBAA2220JC5N0CAP FILM 0.022UF 5% 16VDC 1206 |
7,997 | 1.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | LDB | Active | 0.022 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130 L x 0.067 W (3.30mm x 1.70mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - |
|
|
F612JF472K100CCAP FILM 4700PF 10% 100VDC RAD |
12,865 | 0.36 |
RFQ |
Datasheet |
Radial | Bulk | F612 | Active | 4700 pF | ±10% | 63V | 100V | Polyester, Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|

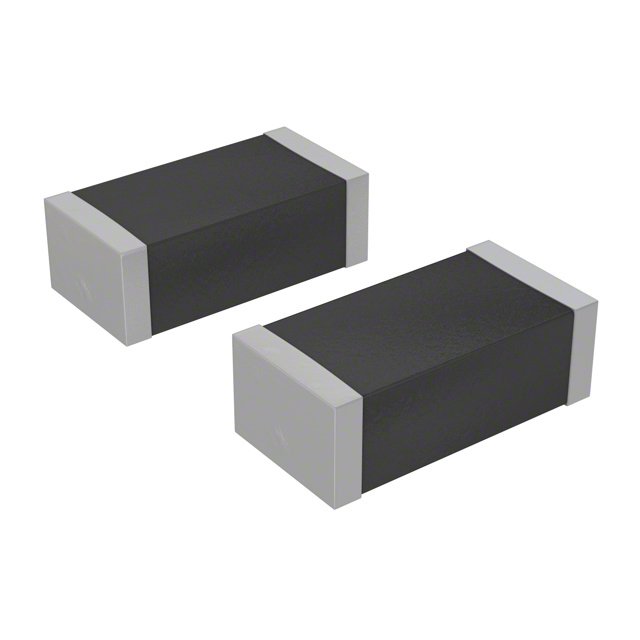

FCP1206C473J-H3CAP FILM 0.047UF 5% 16VDC 1206 |
14,135 | 0.99 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 0.047 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.067 (1.70mm) | Solder Pads | - | High Frequency, Switching | - |
|
B32682A6472K189CAP FILM 4700PF 10% 630VDC RAD |
7,849 | 1.04 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3268* - MFP Very High Pulse | Active | 4700 pF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - |
|
ECQ-E2183KFCAP FILM 0.018UF 10% 250VDC RAD |
12,077 | 0.37 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.018 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.173 W (10.30mm x 4.40mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECW-U4822V17CAP FILM 8200PF 5% 400VDC 1913 |
5,254 | 1.10 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 8200 pF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.094 (2.40mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
|
ECW-U1123KC9CAP FILM 0.012UF 10% 100VDC 1913 |
7,725 | 1.10 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.012 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U1153KC9CAP FILM 0.015UF 10% 100VDC 1913 |
7,863 | 1.10 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.015 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U1393KC9CAP FILM 0.039UF 10% 100VDC 1913 |
6,141 | 1.11 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.039 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
SMDTF02470TA00MQ00CAP FILM 0.047UF 20% 250VDC 2824 |
12,982 | 0.97 |
RFQ |
Datasheet |
2824 (7260 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 0.047 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Surface Mount | 0.283 L x 0.240 W (7.20mm x 6.10mm) | 0.130 (3.30mm) | Solder Pads | - | General Purpose | - |
|
|
890324023007CSCAP FILM 0.012UF 10% 275VAC RAD |
13,681 | 0.39 |
RFQ |
Datasheet |
Radial | Bulk | WCAP-FTX2 | Active | 0.012 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.453 (11.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
R82MC1680Z350JCAP FILM 6800PF 5% 400VDC RADIAL |
14,460 | 0.39 |
RFQ |
Datasheet |
Radial | Bag | R82 | Active | 6800 pF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.299 (7.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
R82EC1150Z350KCAP FILM 1500PF 10% 100VDC RAD |
11,257 | 0.39 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 1500 pF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
890324025004CSCAP FILM 0.027UF 10% 275VAC RAD |
12,907 | 0.39 |
RFQ |
Datasheet |
Radial | Bulk | WCAP-FTX2 | Active | 0.027 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.453 (11.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
SMDTD02330KA00MP00CAP FILM 0.033UF 20% 100VDC 1812 |
10,763 | 0.94 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 0.033 µF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.130 (3.30mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1H273JB5CAP FILM 0.027UF 5% 50VDC 1210 |
7,118 | 1.08 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.027 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
