| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B25620B0567K703CAP FILM 560UF 10% 700VDC RADIAL |
969 | 100.20 |
RFQ |
Datasheet |
Radial, Can | Bulk | MKP DC Link | Active | 560 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567 Dia (116.00mm) | 3.071 (78.00mm) | Threaded, Female | 1.969 (50.00mm) | DC Link, DC Filtering | - |
|

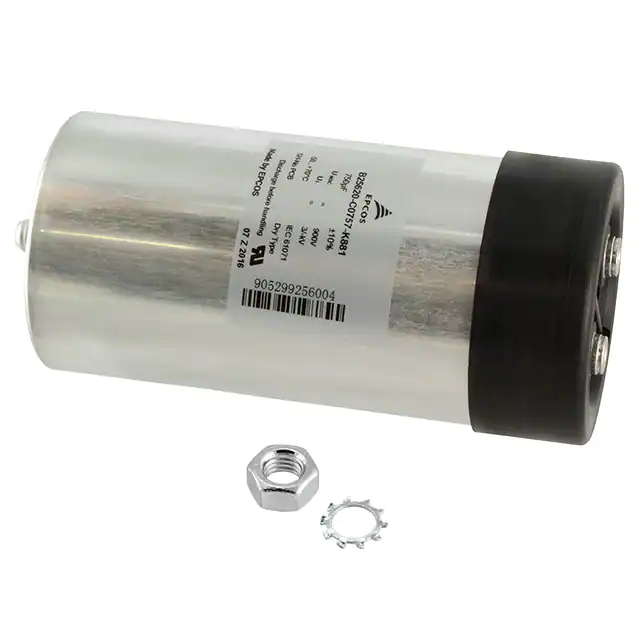

B25620C0757K881CAP FILM 750UF 10% 900VDC RADIAL |
772 | 119.24 |
RFQ |
Datasheet |
Radial, Can | Bulk | MKP DC Link | Active | 750 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.1 mOhms | -55°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 7.126 (181.00mm) | Threaded, Female | 1.969 (50.00mm) | DC Link, DC Filtering | - |
|

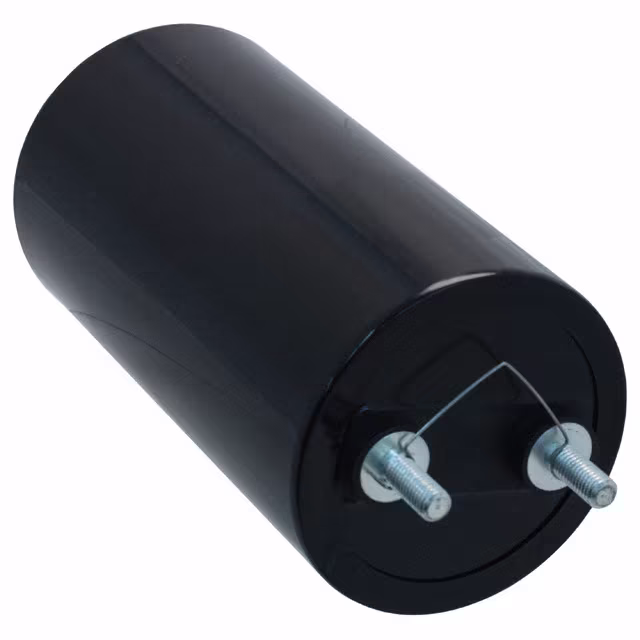

947C731K801CDMSCAP FILM 730UF 10% 800VDC RADIAL |
654 | 144.01 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947C | Active | 730 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 6.772 (172.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|

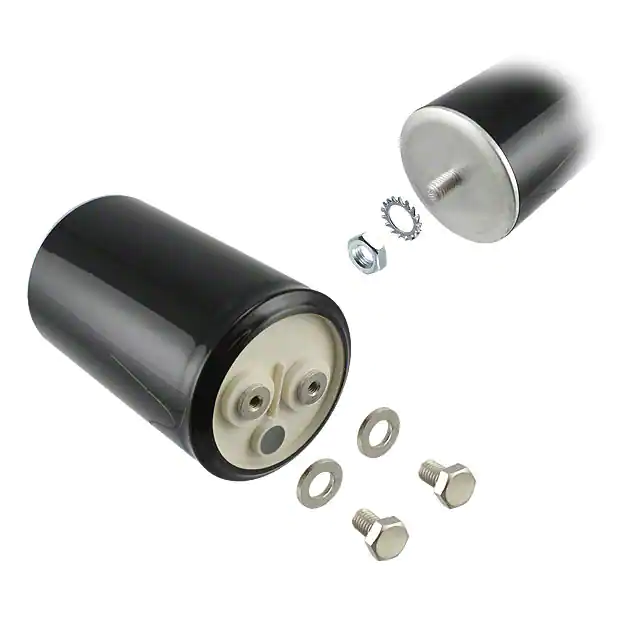

C44UOGQ6600F8SKCAP FILM 600UF 10% 900VDC RADIAL |
656 | 148.15 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U | Active | 600 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 5.591 (142.00mm) | Threaded, Male | 1.248 (31.70mm) | DC Link, DC Filtering | - |
|
R82EC1330SH50JCAP FILM 3300PF 5% 100VDC RADIAL |
11,059 | 0.07 |
RFQ |
Radial | Tape & Box (TB) | R82 | Active | 3300 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 | |
|
|
R82EC1470SH50JCAP FILM 4700PF 5% 100VDC RADIAL |
14,247 | 0.07 |
RFQ |
Radial | Tape & Box (TB) | R82 | Active | 4700 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 | |
|
|
R82EC1680SH50JCAP FILM 6800PF 5% 100VDC RADIAL |
13,060 | 0.07 |
RFQ |
Radial | Tape & Box (TB) | R82 | Active | 6800 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 | |
|
B32529C1152K189CAP FILM 1500PF 10% 100VDC RAD |
12,560 | 0.32 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3252* - MKT General Purpose | Active | 1500 pF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
|
B32529C1222K189CAP FILM 2200PF 10% 100VDC RAD |
13,620 | 0.32 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3252* - MKT General Purpose | Active | 2200 pF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
|
B32529C0222K189CAP FILM 2200PF 10% 63VDC RADIAL |
10,422 | 0.32 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3252* - MKT General Purpose | Active | 2200 pF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287 L x 0.098 W (7.30mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
|
R82EC1470CK50KCAP FILM 4700PF 10% 100VDC RAD |
11,249 | 0.30 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | R82 | Active | 4700 pF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
B32529C1334K189CAP FILM 0.33UF 10% 100VDC RAD |
14,980 | 0.53 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3252* - MKT General Purpose | Active | 0.33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
B32529C6473K189CAP FILM 0.047UF 10% 400VDC RAD |
11,155 | 0.53 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3252* - MKT General Purpose | Not For New Designs | 0.047 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | - |
|
B32921C3683M189CAP FILM 0.068UF 20% 630VDC RAD |
10,832 | 0.53 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3292*C/D - X2 Standard | Active | 0.068 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
BFC237065153CAP FILM 0.015UF 10% 400VDC RAD |
10,699 | 0.54 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | MKT370 | Active | 0.015 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.200 (5.08mm) | Automotive | AEC-Q200 |
|
ECH-U1C183JB5CAP FILM 0.018UF 5% 16VDC 1206 |
10,996 | 0.90 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.018 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
R82EC1330AA50KCAP FILM 3300PF 10% 100VDC RAD |
12,886 | 0.29 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 3300 pF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
R82DC4150DQ60KCAP FILM 1.5UF 10% 63VDC RADIAL |
11,441 | 0.29 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | R82 | Active | 1.5 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.236 W (7.20mm x 6.00mm) | 0.437 (11.10mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
-H-2.jpg)
|

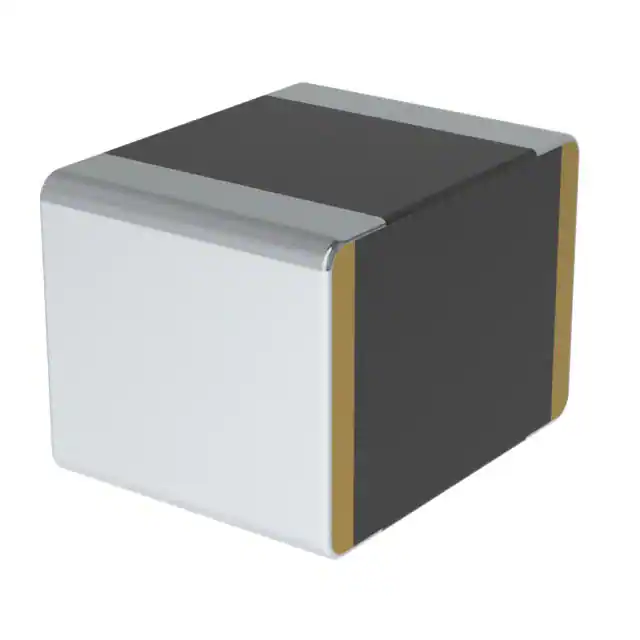

ECW-U1822JX5CAP FILM 8200PF 5% 100VDC 1210 |
13,549 | 0.95 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(X) | Active | 8200 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.091 (2.30mm) | Solder Pads | - | General Purpose | - |
|
RSBIC1220AA00KCAP FILM 2200PF 10% 250VDC RAD |
13,422 | 0.30 |
RFQ |
Datasheet |
Radial | Bag | RSB | Active | 2200 pF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
