Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
MA4P606-258 DIODE,PIN,CERAMIC_PKG,SI MACOM Technology Solutions	2,488	99.42	- + RFQ		Tray	-	Active	PIN - Single	1000V	-	0.8pF @ 100V, 1MHz	700mOhm @ 100mA, 100MHz	20 W	-65°C ~ 175°C
MA4E2502H-1246 RF DIODE SCHOTTKY 5V 50MW DIE MACOM Technology Solutions	7,795	3.98	- + RFQ	Datasheet	Bulk	-	Active	Schottky	5V	20 mA	0.12pF @ 0V, 18GHz	-	50 mW	-40°C ~ 125°C (TJ)

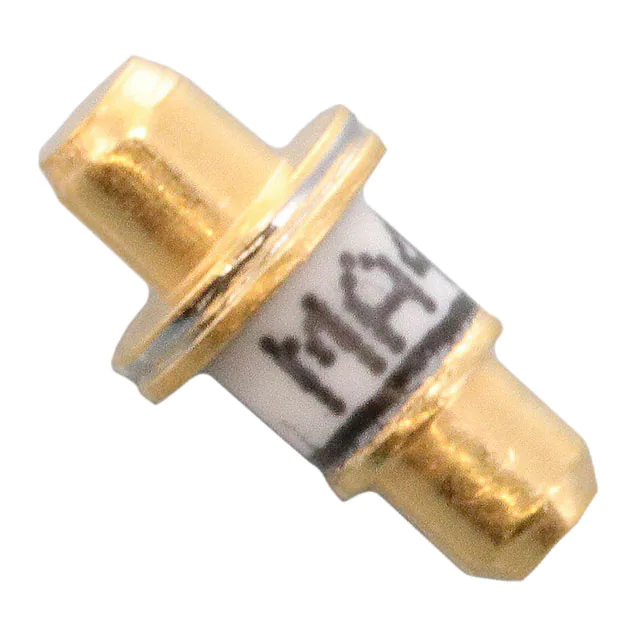

MA4P504-30 DIODE,PIN,CERAMIC_PKG,SI MACOM Technology Solutions	2,438	29.55	- + RFQ		Tray	-	Active	PIN - Single	500V	-	0.4pF @ 100V, 1MHz	600mOhm @ 100mA, 100MHz	7.5 W	-65°C ~ 175°C

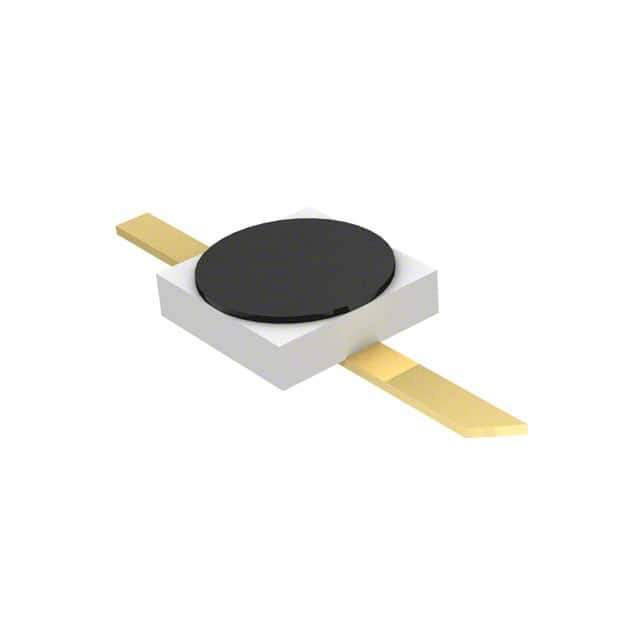

MA4L101-186 DIODE,PIN,BONDED,STRIPLINE,SI MACOM Technology Solutions	3,728	33.64	- + RFQ		Tray	MA4L	Active	PIN - Single	175V	100 mA	0.11pF @ 10V, 1MHz	2Ohm @ 10mA, 500MHz	6 W	175°C (TJ)
MA4P604-30 DIODE,PIN,CERAMIC_PKG,SI MACOM Technology Solutions	2,323	41.35	- + RFQ		Tray	-	Active	PIN - Single	1000V	-	0.5pF @ 100V, 1MHz	1Ohm @ 100mA, 100MHz	15 W	-65°C ~ 175°C
MSS50-B46-E45R COM SCHOTTKY, BEAMLEAD, E45R MACOM Technology Solutions	3,434	49.70	- + RFQ	Datasheet	Tray	MSS50-xxx-x	Active	Schottky - 1 Bridge	3V	50 mA	0.2pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C
MSS30-142-E28 SCHOTTKY DIODE,BEAMLEAD, E28-S MACOM Technology Solutions	1,201	50.46	- + RFQ	Datasheet	Tray	MSS30-xxx-x	Active	Schottky - Single	2V	50 mA	0.26pF @ 0V, 1MHz	13Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MSS60-848-E45 SCHOTTKY DIODE,BEAMLEAD, E45-1 MACOM Technology Solutions	2,705	52.64	- + RFQ		Tray	-	Active	Schottky - 1 Bridge	6V	50 mA	0.41pF @ 0V, 1MHz	13Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C

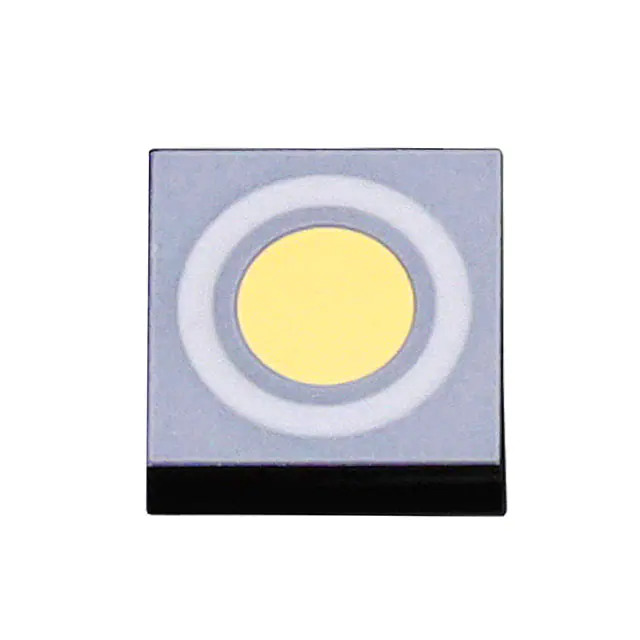

MA4PK3000-1252 DIODE,PIN,CHIP,CERAMIC,SI,ODS-12 MACOM Technology Solutions	4,922	76.29	- + RFQ		Tray	-	Active	PIN - Single	3000V	17 A	2.5pF @ 100V, 1MHz	250mOhm @ 500mA, 4MHz	75 W	-65°C ~ 175°C

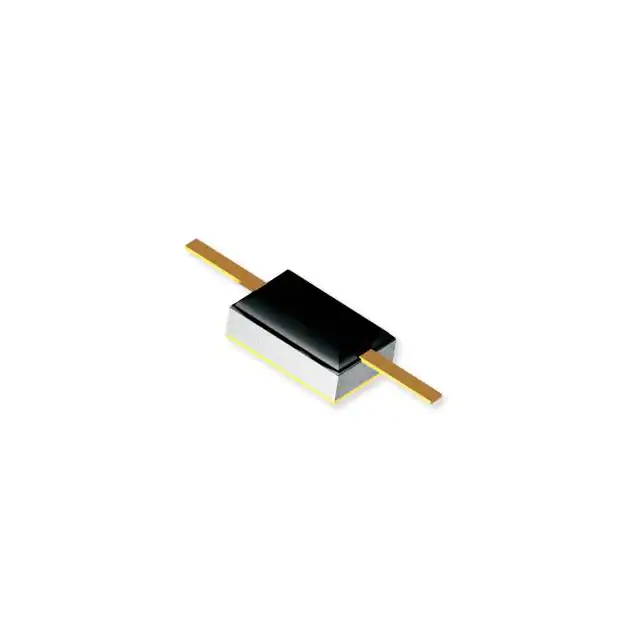

MEST2G-080-025 SCHOTTKY, SI BEAM LEAD,CM27 MACOM Technology Solutions	553	142.74	- + RFQ		Tray	-	Active	Schottky - Single	500V	200 mA	0.09pF @ 50V, 1MHz	970mOhm @ 100mA, 500MHz	80 W	-40°C ~ 175°C (TJ)
MA47266-146 DIODE,PIN,GLASS,AXIAL,HI_VOLUME MACOM Technology Solutions	3,496	37.02	- + RFQ		Tray	-	Active	PIN - Single	200V	-	1.5pF @ 50V, 1MHz	600mOhm @ 50mA, 100MHz	500 mW	-55°C ~ 175°C
MADL-011012-001 RF DIODE 360W PWR LIMITER SMD MACOM Technology Solutions	637	412.68	- + RFQ	Datasheet	Bulk	-	Active	-	-	-	-	-	-	175°C (TJ)
MSS40-045-P86 SCHOTTKY DIODE,CHIP,PACKAGE P86 MACOM Technology Solutions	1,714	40.69	- + RFQ		Tray	-	Active	Schottky - Single	3V	50 mA	0.3pF @ 0V, 1MHz	7Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C

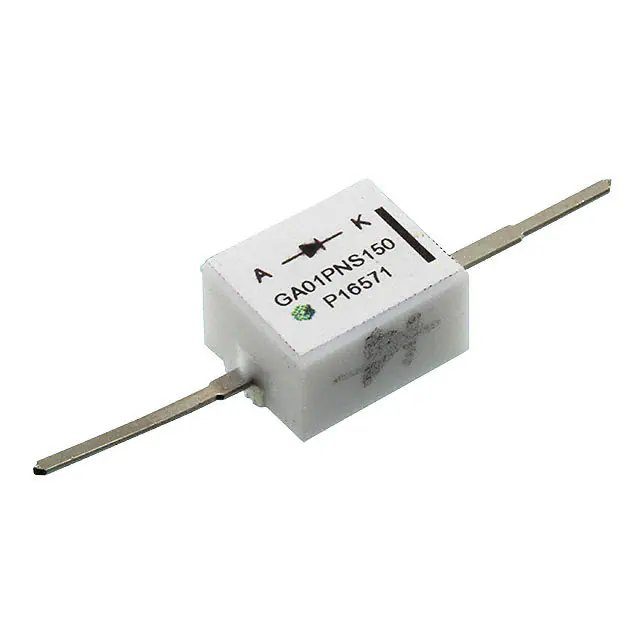

GA01PNS150-220 RF DIODE PIN 15000V GeneSiC Semiconductor	526	561.00	- + RFQ	Datasheet	Tube	-	Active	PIN - Single	15000V	1 A	7pF @ 1000V, 1MHz	-	-	-55°C ~ 175°C (TJ)
MMDB45-0402 BEAMLEAD SRD DIODE, 0402 MACOM Technology Solutions	1,083	47.70	- + RFQ		Tray	MMDx	Active	Standard - Single	25V	50 mA	0.25pF @ 6V, 1MHz	-	250 mW	-65°C ~ 175°C
MMD830-T86 DIODE,SRD-GLASS,T86 PACKAGE MACOM Technology Solutions	3,271	49.08	- + RFQ		Tray	MMDx	Active	Standard - Single	25V	150 mA	1.18pF @ 6V, 1MHz	-	250 mW	-65°C ~ 175°C

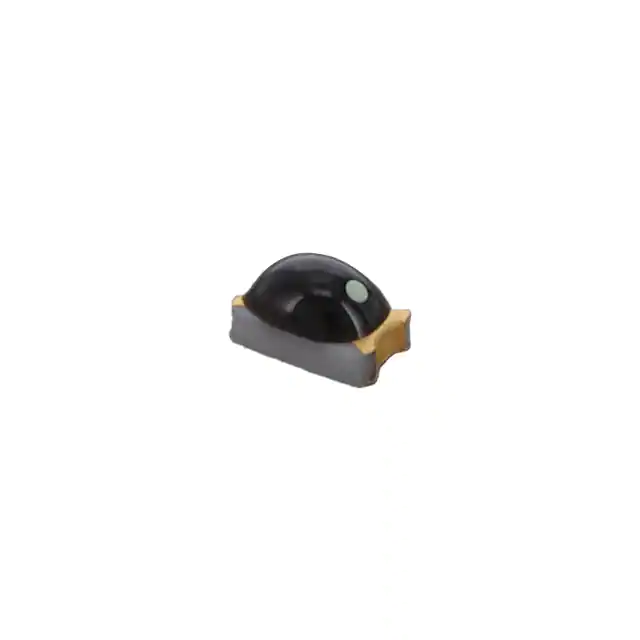

MSS20-046-0805 SCHOTTKY DIODE,CHIP-PACKAGE, 080 MACOM Technology Solutions	4,108	61.74	- + RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.2pF @ 500mV, 1MHz	-	100 mW	-65°C ~ 150°C
BAR63-02LE6327 PIN DIODE, 50V V(BR) Infineon Technologies	14,345	0.05	- + RFQ	Datasheet	Bulk	-	Active	PIN - Single	50V	100 mA	0.3pF @ 5V, 1MHz	-	250 mW	150°C (TJ)
BAR6304WH6327 RF PIN DIODE > ANTENNA SWITCH Infineon Technologies	10,332	0.06	- + RFQ	Datasheet	Bulk	-	Active	PIN - 1 Pair Series Connection	50V	100 mA	0.3pF @ 5V, 1MHz	-	250 mW	150°C (TJ)
BAR6406WE6327 RF PIN DIODE > ANTENNA SWITCH Infineon Technologies	13,624	0.07	- + RFQ	Datasheet	Bulk	-	Active	PIN - Single	150V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	250 mW	150°C (TJ)
