Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
CLA4602-000 DIODE LIMITER SILICON 15-30V Skyworks Solutions Inc.	9,846	2.86	- + RFQ	Datasheet	Tray	CLA	Active	PIN - Single	30V	200 mA	-	2Ohm @ 10mA, 1MHz	510 mW	-65°C ~ 175°C (TJ)
GMP4235-GM1 SI PIN NON HERMETIC PLASTIC SMT Microchip Technology	8,811	3.40	- + RFQ	Datasheet	Bulk	GIGAMITE®	Active	PIN - Single	250V	-	0.6pF @ 10V, 1MHz	800mOhm @ 20mA, 100MHz	-	-55°C ~ 125°C
LXP1002-23-4 SI PIN NON HERMETIC EPSM SMT Microchip Technology	9,519	5.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - 1 Pair Series Connection	50V	100 mA	0.32pF @ 50V, 1MHz	4Ohm @ 100mA, 100MHz	250 mW	-55°C ~ 125°C
L8104 RF PIN DIODE 180V 3W CERAMIC MEL CEL	6,163	8.21	- + RFQ	Datasheet	Bulk	-	Active	PIN - Single	180V	50 mA	1.2pF @ 40V, 100MHz	750mOhm @ 50mA, 100MHz	3 W	175°C (TJ)
MLP7120-11 LIMITER DIODE,DIE MACOM Technology Solutions	4,405	15.22	- + RFQ		Tray	-	Active	PIN - Single	180V	-	0.15pF @ 6V, 1MHz	1.5Ohm @ 10mA, 1GHz	5 W	-55°C ~ 150°C
BAP51-05W,115 RF DIODE PIN 50V 240MW SOT323-3 NXP USA Inc.	2,855	0.10	- + RFQ	Datasheet	Tape & Reel (TR),Bulk	-	Obsolete	PIN - 1 Pair Series Connection	50V	50 mA	0.35pF @ 5V, 1MHz	2.5Ohm @ 10mA, 100MHz	240 mW	-65°C ~ 150°C (TJ)
BAP70-03,115 RF DIODE PIN 50V 500MW SOD323 NXP USA Inc.	2,350	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	50V	100 mA	0.25pF @ 20V, 1MHz	1.9Ohm @ 100mA, 100MHz	500 mW	-65°C ~ 150°C (TJ)
BAP64-06W,115 RF DIODE PIN 100V 240MW SOT323-3 NXP USA Inc.	2,639	0.09	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Obsolete	PIN - 1 Pair Common Anode	100V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	240 mW	-65°C ~ 150°C (TJ)

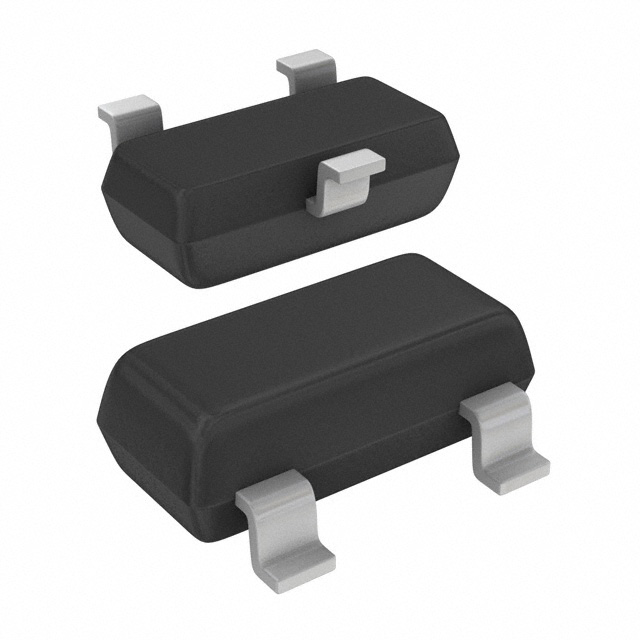

BAP64-04,215 RF DIODE PIN 175V 250MW TO236AB NXP USA Inc.	3,851	1.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Obsolete	PIN - 1 Pair Series Connection	175V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	250 mW	-65°C ~ 150°C (TJ)

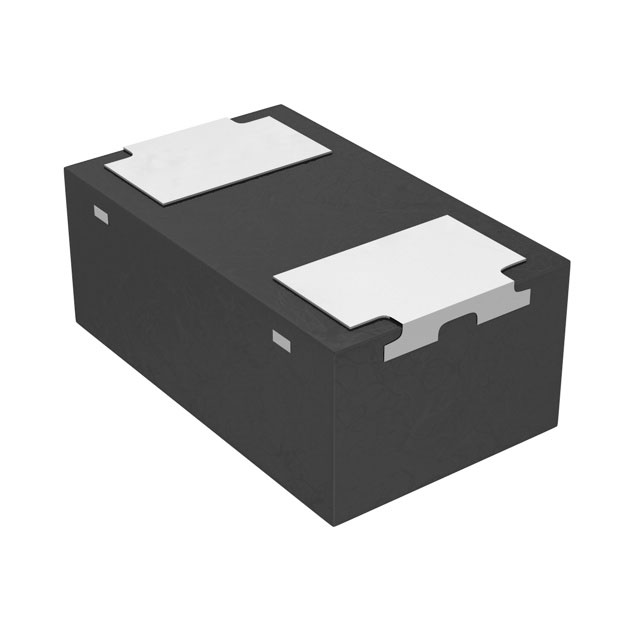

BAP50LX,315 RF DIODE PIN 50V 150MW SOD2 NXP USA Inc.	2,630	0.38	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	50V	50 mA	0.35pF @ 5V, 1MHz	3Ohm @ 10mA, 100MHz	150 mW	-65°C ~ 150°C (TJ)
HSMS-285C-BLK RF DIODE SCHOTTKY 2V SOT323 Broadcom Limited	2,204	0.00	- + RFQ		Bulk	-	Obsolete	Schottky - 1 Pair Series Connection	2V	-	0.3pF @ 1V, 1MHz	-	-	150°C (TJ)
HBAT-5400-TR1 DIODE SCHOTTKY 30V 250MW SOT23-3 Broadcom Limited	3,466	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	HBAT-540x	Obsolete	Schottky - Single	30V	220 mA	-	-	250 mW	150°C (TJ)
HBAT-5402-TR1 DIODE SCHOTTKY 30V 250MW SOT23-3 Broadcom Limited	2,719	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	HBAT-540x	Obsolete	Schottky - 1 Pair Series Connection	30V	220 mA	-	-	250 mW	150°C (TJ)
HBAT-540B-TR1 DIODE SCHOTTKY 30V 825MW SOT323 Broadcom Limited	3,195	0.00	- + RFQ		Tape & Reel (TR)	HBAT-540x	Obsolete	Schottky - Single	30V	430 mA	-	-	825 mW	150°C (TJ)
HBAT-540C-TR1 DIODE SCHOTTKY 30V 825MW SOT323 Broadcom Limited	3,819	0.00	- + RFQ		Tape & Reel (TR)	HBAT-540x	Obsolete	Schottky - 1 Pair Series Connection	30V	430 mA	-	-	825 mW	150°C (TJ)
MA4L021-134 RF DIODE PIN 35V CHIP MACOM Technology Solutions	7,257	4.45	- + RFQ	Datasheet	Bulk	-	Active	PIN - Single	35V	100 mA	0.2pF @ 0V, 1MHz	2.1Ohm @ 10mA, 500MHz	-	-55°C ~ 125°C (TJ)
MMD830-0805 DIODE,SRD-CHIP-PACKAGE, 0805-2X MACOM Technology Solutions	4,804	26.98	- + RFQ	Datasheet	Tray	MMDx	Active	PIN - Single	25V	150 mA	1.06pF @ 6V, 1MHz	-	-	-65°C ~ 175°C

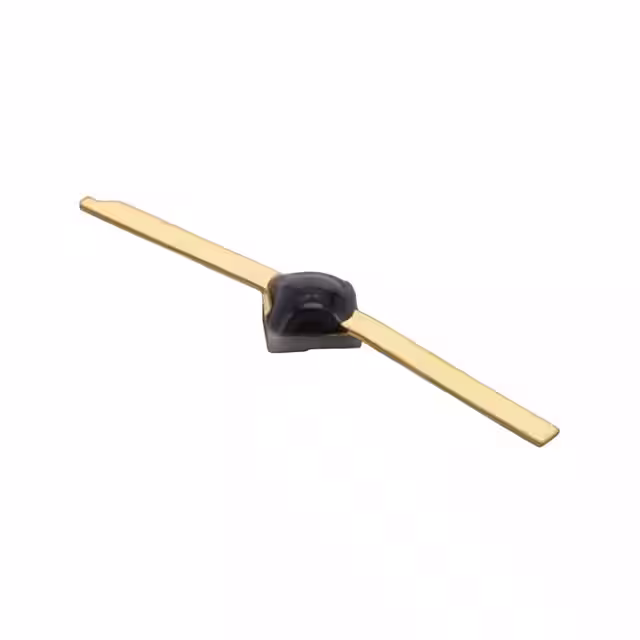

MMD805-E25 DIODE,SRD-CHIP-PACKAGE, E25 MACOM Technology Solutions	1,806	43.24	- + RFQ		Tray	MMDx	Active	Standard - Single	60V	150 mA	3.57pF @ 6V, 1MHz	-	250 mW	-65°C ~ 175°C
MMD820-T86 DIODE,SRD-GLASS,T86 PACKAGE MACOM Technology Solutions	1,617	46.75	- + RFQ		Tray	MMDx	Active	Standard - Single	40V	150 mA	1.88pF @ 6V, 1MHz	-	250 mW	-65°C ~ 175°C

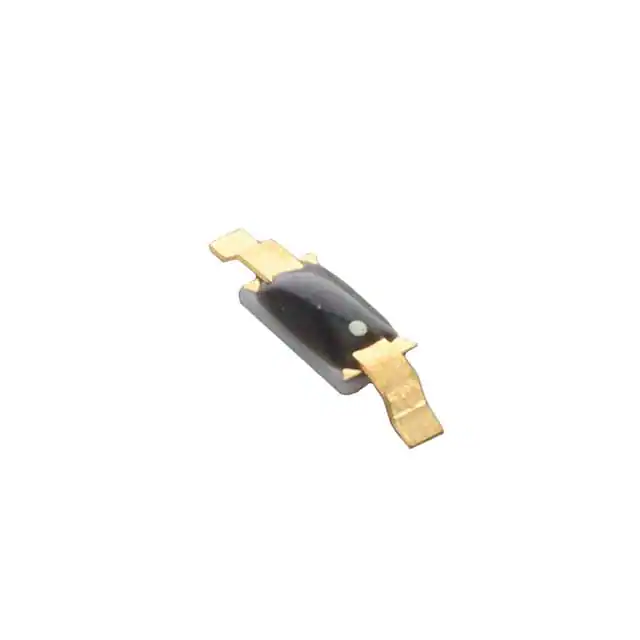

MMDB30-E28X DIODE, BEAMLEAD SRD, E28X MACOM Technology Solutions	1,668	50.46	- + RFQ		Tray	MMDx	Active	Standard - Single	14V	50 mA	0.33pF @ 6V, 1MHz	-	250 mW	-65°C ~ 175°C
