| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35505R6JTRES 3550 5R6 5% |
9,638 | 1.77 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3550, CGS | Active | 5.6 Ohms | ±5% | 5W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.433 L x 0.197 W (11.00mm x 5.00mm) | 0.047 (1.20mm) | |
|
CSS4J-4026K-2L00FRES 0.002 OHM 1% 4W 4026 |
7,769 | 1.77 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CSS4J-4026 | Active | 2 mOhms | ±1% | 4W | Metal Element | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | - | 0.397 L x 0.260 W (10.06mm x 6.60mm) | 0.128 (3.24mm) | |
|
|
3550180RFTRES 3550 180R 1% |
9,931 | 1.77 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3550, CGS | Active | 180 Ohms | ±1% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | 0.433 L x 0.197 W (11.00mm x 5.00mm) | 0.047 (1.20mm) | |
|
PU3921FKNP90U4LMETAL SHUNT RESISTOR 3921 1% 175 |
6,349 | 1.82 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PU | Active | 400 µOhms | ±1% | 9W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±175ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | 0.071 (1.81mm) | |
|
|
35506R8JTRES 3550 6R8 5% |
6,953 | 1.80 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3550, CGS | Active | 6.8 Ohms | ±5% | 5W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.433 L x 0.197 W (11.00mm x 5.00mm) | 0.047 (1.20mm) | |
|
WSLP25124L000FEARES 0.004 OHM 1% 3W 2512 |
5,718 | 1.84 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 4 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±150ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | |
|
TNPU0805102KAYEA00RES 102 KOHM 0.05% 1/8W 0805 |
7,730 | 1.88 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 102 kOhms | ±0.05% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
.JPG)
|
TL3AR068FTDGRES 0.068 OHM 1% 1W 2512 |
6,499 | 1.89 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | TL, CGS | Active | 68 mOhms | ±1% | 1W | Metal Foil | Current Sense | ±75ppm/°C | -65°C ~ 170°C | - | 0.252 L x 0.126 W (6.40mm x 3.20mm) | 0.024 (0.60mm) | |
|
Y163110K0000T9RRES SMD 10K OHM 0.01% 0.3W 1506 |
4,202 | 11.40 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VFCP | Active | 10 kOhms | ±0.01% | 0.3W | Metal Foil | Anti-Sulfur, Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 150°C | - | 0.150 L x 0.062 W (3.81mm x 1.57mm) | 0.025 (0.64mm) | |
|
|
TNPU080510K0BZEA00RES 10 KOHM 0.1% 1/8W 0805 |
9,306 | 1.92 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 10 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
.jpg)
|
M55342K11B1E00RS3RES SMD 1K OHM 1% 1/20W 0402 |
7,032 | 1.89 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55342, RM0402 | Active | 1 kOhms | ±1% | 0.05W, 1/20W | Thick Film | Military | ±100ppm/°C | -55°C ~ 150°C | - | 0.040 L x 0.025 W (1.02mm x 0.64mm) | 0.033 (0.84mm) | |
|
|
M55342K11B100DRS3RES SMD 100 OHM 1% 1/20W 0402 |
7,241 | 1.89 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55342, RM0402 | Active | 100 Ohms | ±1% | 0.05W, 1/20W | Thick Film | Military | ±100ppm/°C | -55°C ~ 150°C | - | 0.040 L x 0.025 W (1.02mm x 0.64mm) | 0.033 (0.84mm) | |
|
|
M55342K11B100ERS3RES SMD 100K OHM 1% 1/20W 0402 |
5,110 | 1.89 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55342, RM0402 | Active | 100 kOhms | ±1% | 0.05W, 1/20W | Thick Film | Military | ±100ppm/°C | -55°C ~ 150°C | - | 0.040 L x 0.025 W (1.02mm x 0.64mm) | 0.033 (0.84mm) | |
|

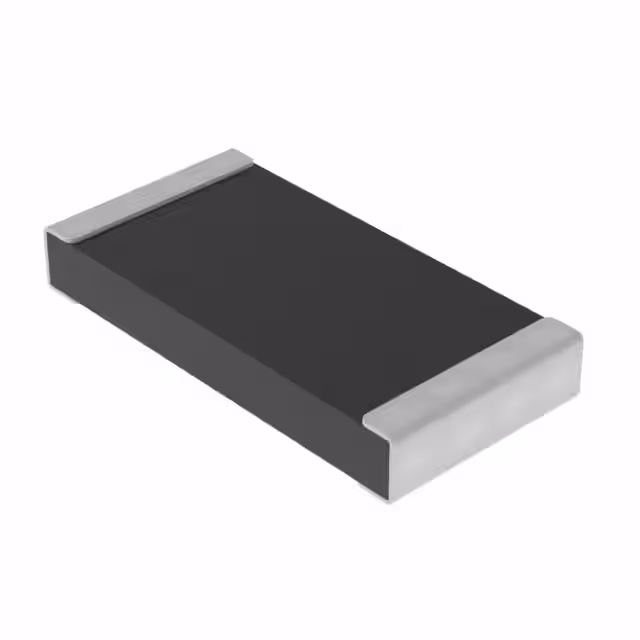

UHVB2010FCD500MRES 500M OHM 1% 2010 6KV |
3,909 | 12.21 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 500 MOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
WSLP39213L000FEBRES 0.003 OHM 1% 5W 3921 |
8,828 | 1.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP3921 | Active | 3 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | 0.020 (0.50mm) | |
|
|
WSLP39212L000FEBRES 0.002 OHM 1% 5W 3921 |
8,812 | 1.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP3921 | Active | 2 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | 0.020 (0.50mm) | |
|
M55342K03B10E0RS3RES SMD 10K OHM 1% 1/5W 1005 |
7,575 | 1.99 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55342, RM1005 | Active | 10 kOhms | ±1% | 0.2W, 1/5W | Thick Film | Military | ±100ppm/°C | -55°C ~ 150°C | - | 0.105 L x 0.050 W (2.67mm x 1.27mm) | 0.025 (0.64mm) | |
|
S5-1RF1RES SMD 1 OHM 1% 4W 8230 |
6,438 | 1.73 |
RFQ |
Datasheet |
8230 J-Lead | Tape & Reel (TR),Cut Tape (CT) | S | Active | 1 Ohms | ±1% | 4W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±50ppm/°C | -55°C ~ 275°C | - | 0.819 L x 0.296 W (20.80mm x 7.50mm) | 0.319 (8.10mm) | |
|
|
S5-22RF1RES SMD 22 OHM 1% 4W 8230 |
9,468 | 1.73 |
RFQ |
Datasheet |
8230 J-Lead | Tape & Reel (TR),Cut Tape (CT) | S | Active | 22 Ohms | ±1% | 4W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±20ppm/°C | -55°C ~ 275°C | - | 0.819 L x 0.296 W (20.80mm x 7.50mm) | 0.319 (8.10mm) | |
|
PSR500HTQFH1L00RES 0.001 OHM 1% 5W 5931 |
8,024 | 2.07 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PSR | Active | 1 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0.591 L x 0.305 W (15.00mm x 7.75mm) | - |
