| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
355033RJTRES 3550 33R 5% |
6,308 | 1.41 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3550, CGS | Active | 33 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | 0.433 L x 0.197 W (11.00mm x 5.00mm) | 0.047 (1.20mm) | |
|
S2-47RF2RES SMD 47 OHM 1% 1W 2615 |
9,232 | 1.18 |
RFQ |
Datasheet |
2615 J-Lead | Tape & Reel (TR),Cut Tape (CT) | S | Active | 47 Ohms | ±1% | 1W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±20ppm/°C | -55°C ~ 275°C | - | 0.260 L x 0.154 W (6.60mm x 3.90mm) | 0.142 (3.60mm) | |
|
|
S2-15RF1RES SMD 15 OHM 1% 1W 2615 |
7,237 | 1.18 |
RFQ |
Datasheet |
2615 J-Lead | Tape & Reel (TR),Cut Tape (CT) | S | Active | 15 Ohms | ±1% | 1W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±20ppm/°C | -55°C ~ 275°C | - | 0.260 L x 0.154 W (6.60mm x 3.90mm) | 0.142 (3.60mm) | |
|
|
355012KJTRES 3550 12K 5% |
8,492 | 1.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3550, CGS | Active | 12 kOhms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | 0.433 L x 0.197 W (11.00mm x 5.00mm) | 0.047 (1.20mm) | |
|

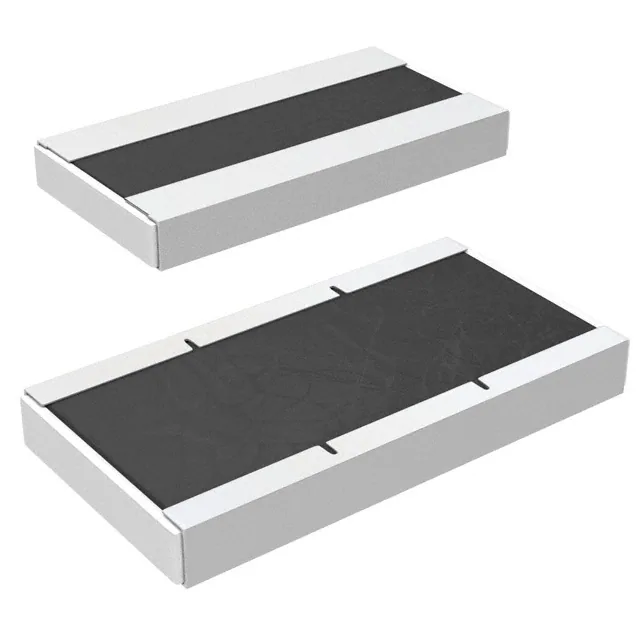

ERJ-B1CFR10URES 0.1 OHM 2W 2010 WIDE |
5,746 | 1.50 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | ERJ-B1 | Active | 100 mOhms | ±1% | 2W | Thick Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.098 L x 0.197 W (2.50mm x 5.00mm) | 0.030 (0.75mm) | |
-J-Lead.jpg)
|

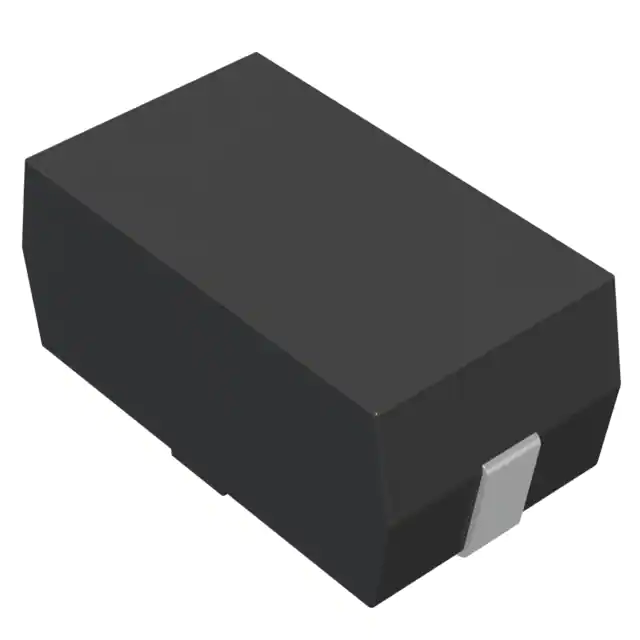

SMV3W10MJTSMV 3W 10M 5% |
8,254 | 1.20 |
RFQ |
Datasheet |
5329 (13573 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMV | Active | 10 MOhms | ±5% | 3W | Metal Film | Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety | ±200ppm/°C | -65°C ~ 200°C | - | 0.531 L x 0.287 W (13.50mm x 7.30mm) | 0.280 (7.10mm) | |
|
|
SMV3W220KJTSMV 3W 220K 5% |
9,035 | 1.20 |
RFQ |
Datasheet |
5329 (13573 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMV | Active | 220 kOhms | ±5% | 3W | Metal Film | Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety | ±200ppm/°C | -65°C ~ 200°C | - | 0.531 L x 0.287 W (13.50mm x 7.30mm) | 0.280 (7.10mm) | |
|
|
SMV3W180KJTSMV 3W 180K 5% |
5,413 | 1.20 |
RFQ |
Datasheet |
5329 (13573 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMV | Active | 180 kOhms | ±5% | 3W | Metal Film | Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety | ±200ppm/°C | -65°C ~ 200°C | - | 0.531 L x 0.287 W (13.50mm x 7.30mm) | 0.280 (7.10mm) | |
|
|
ERJ-B1CFR05URES 0.05 OHM 2W 2010 WIDE |
9,960 | 1.50 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | ERJ-B1 | Active | 50 mOhms | ±1% | 2W | Thick Film | Automotive AEC-Q200, Current Sense | ±150ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.098 L x 0.197 W (2.50mm x 5.00mm) | 0.030 (0.75mm) | |
|
|
355015KJTRES 3550 15K 5% |
8,563 | 1.46 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3550, CGS | Active | 15 kOhms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | 0.433 L x 0.197 W (11.00mm x 5.00mm) | 0.047 (1.20mm) | |
|
PATT0805E4991BGT1RES SMD 4.99K OHM 0.1% 1/5W 0805 |
7,935 | 1.47 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PATT | Active | 4.99 kOhms | ±0.1% | 0.2W, 1/5W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 250°C | AEC-Q200 | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.018 (0.46mm) | |
|
|
355015RJTRES 3550 15R 5% |
8,988 | 1.48 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3550, CGS | Active | 15 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | 0.433 L x 0.197 W (11.00mm x 5.00mm) | 0.047 (1.20mm) | |
|

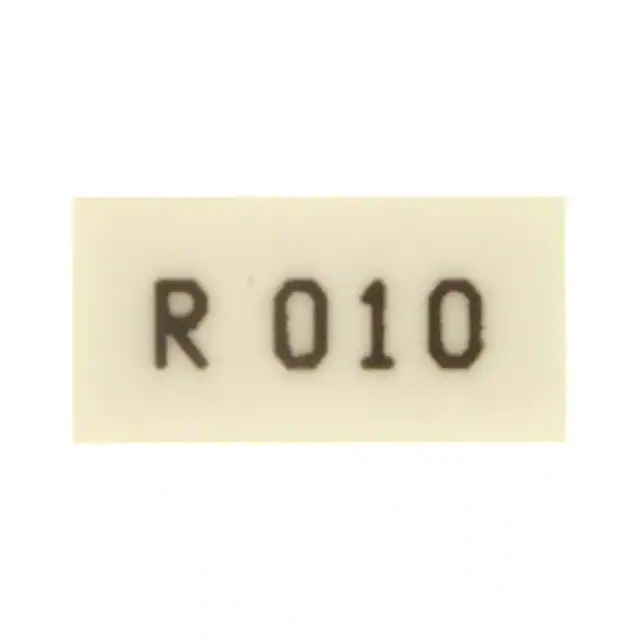

FCSL76R010FERRES 0.01 OHM 3W 3015 WIDE |
6,136 | 1.48 |
RFQ |
Datasheet |
Wide 3015 (7638 Metric), 1530 | Tape & Reel (TR),Cut Tape (CT) | FCSL | Active | 10 mOhms | ±1% | 3W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 0.150 L x 0.299 W (3.80mm x 7.60mm) | 0.028 (0.70mm) | |
|

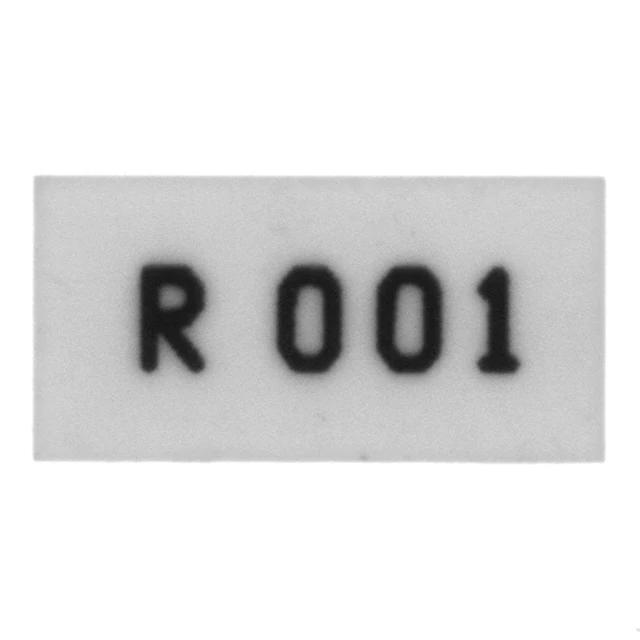

FCSL76R001JERRES 0.001 OHM 3W 3015 WIDE |
8,713 | 1.48 |
RFQ |
Datasheet |
Wide 3015 (7638 Metric), 1530 | Tape & Reel (TR),Cut Tape (CT) | FCSL | Active | 1 mOhms | ±5% | 3W | Metal Foil | Current Sense, Moisture Resistant | ±150ppm/°C | -55°C ~ 155°C | - | 0.150 L x 0.299 W (3.80mm x 7.60mm) | 0.028 (0.70mm) | |
|
Y1629499R000T9RRES SMD 499 OHM 0.01% 1/10W 0805 |
5,161 | 7.85 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | VFCP | Active | 499 Ohms | ±0.01% | 0.1W, 1/10W | Metal Foil | Anti-Sulfur, Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.049 W (2.01mm x 1.24mm) | 0.025 (0.64mm) | |
|
WSL12068L000FEA18RES 0.008 OHM 1% 1/2W 1206 |
9,664 | 1.54 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL-HP | Active | 8 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.035 (0.89mm) | |
|
WSHM28189L000FEARES 0.009 OHM 1% 7W 2818 |
7,838 | 1.56 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSHM2818 | Active | 9 mOhms | ±1% | 7W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.280 L x 0.181 W (7.10mm x 4.60mm) | 0.069 (1.75mm) | |
|
35404R3FTRES 3540 4R3 1% |
5,197 | 1.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3540, CGS | Active | 4.3 Ohms | ±1% | 4W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.280 L x 0.165 W (7.10mm x 4.20mm) | 0.047 (1.20mm) | |
|
|
35401R1FTRES 3540 1R1 1% |
7,472 | 1.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3540, CGS | Active | 1.1 Ohms | ±1% | 4W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.280 L x 0.165 W (7.10mm x 4.20mm) | 0.047 (1.20mm) | |
|
|
35401R3FTRES 3540 1R3 1% |
6,771 | 1.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3540, CGS | Active | 1.3 Ohms | ±1% | 4W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.280 L x 0.165 W (7.10mm x 4.20mm) | 0.047 (1.20mm) |
