| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM2A101MHD6TNCAP ALUM 100UF 20% 100V RADIAL |
7,052 | 1.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 100 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 475 mA @ 120 Hz | - | 170 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEE-FT1H221GVCAP ALUM 220UF 20% 50V SMD |
9,129 | 1.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 220 µF | ±20% | 50 V | 180mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 435.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FT1V331GVCAP ALUM 330UF 20% 35V SMD |
9,486 | 1.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 330 µF | ±20% | 35 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UPS2E2R2MPD1TDCAP ALUM 2.2UF 20% 250V RADIAL |
14,022 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 2.2 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 46.4 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UHV1V101MED1TDCAP ALUM 100UF 20% 35V RADIAL |
11,686 | 0.50 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UHV | Not For New Designs | 100 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 550 mA @ 100 kHz | 100 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-0JA101WARCAP ALUM 100UF 20% 6.3V SMD |
11,363 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Active | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 47 mA @ 120 Hz | 79.9 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
EEE-1EA220WARCAP ALUM 22UF 20% 25V SMD |
11,760 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Active | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 35 mA @ 120 Hz | 59.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UCS2W220MHD1TNCAP ALUM 22UF 20% 450V RADIAL |
5,045 | 1.58 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCS | Active | 22 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 365 mA @ 120 Hz | 730 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
50PX470MEFC10X20CAP ALUM 470UF 20% 50V RADIAL |
14,710 | 0.83 |
RFQ |
Datasheet |
Bulk | PX | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 720 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPJ1V101MPD1TACAP ALUM 100UF 20% 35V RADIAL |
13,271 | 0.49 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 100 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 305 mA @ 120 Hz | 460 mA @ 10 kHz | 260 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UCD1V100MCL6GSCAP ALUM 10UF 20% 35V SMD |
12,227 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EMHL350ARA331MJA0GCAP ALUM 330UF 20% 35V SMD |
6,766 | 1.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AIchip™- MHL | Active | 330 µF | ±20% | 35 V | 200mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 409.2 mA @ 120 Hz | 440 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UPW2V3R3MPDCAP ALUM 3.3UF 20% 350V RADIAL |
11,321 | 0.84 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 3.3 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 60.8 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
EKZM500ELL101MHB5DCAP ALUM 100UF 20% 50V RADIAL |
14,927 | 0.84 |
RFQ |
Datasheet |
Bulk | KZM | Active | 100 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 289.6 mA @ 120 Hz | 724 mA @ 100 kHz | 74 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEE-HD1C100ARCAP ALUM 10UF 20% 16V SMD |
10,670 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 10 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | 12 Ohms | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-HD1E4R7ARCAP ALUM 4.7UF 20% 25V SMD |
13,572 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 4.7 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 17 mA @ 120 Hz | 28.9 mA @ 10 kHz | 12 Ohms | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UCA2E470MHD6TNCAP ALUM 47UF 20% 250V RADIAL |
8,698 | 1.60 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCA | Not For New Designs | 47 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|

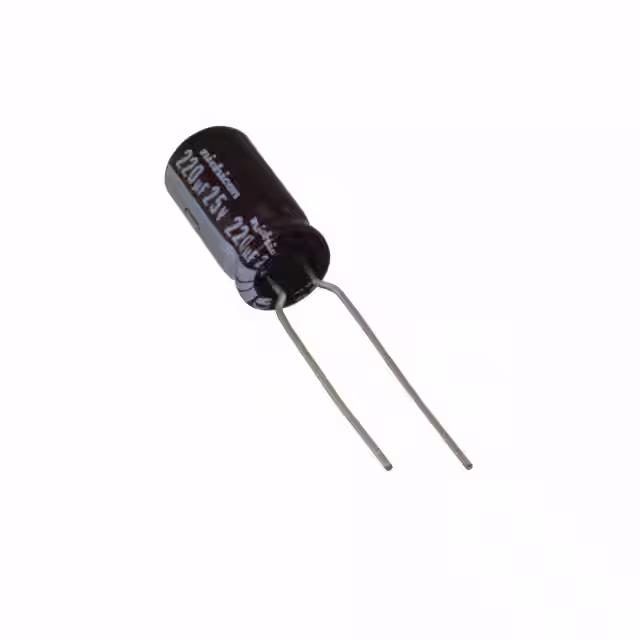

UPM1E221MPD1TACAP ALUM 220UF 20% 25V RADIAL |
10,849 | 0.49 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 220 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 455 mA @ 120 Hz | - | 110 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
35ZLK470M10X20CAP ALUM 470UF 20% 35V RADIAL |
13,531 | 0.86 |
RFQ |
Datasheet |
Bulk | ZLK | Active | 470 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 864 mA @ 120 Hz | 2.88 A @ 100 kHz | 28 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UPS1C221MPD1TDCAP ALUM 220UF 20% 16V RADIAL |
10,107 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 205 mA @ 120 Hz | 410 mA @ 100 kHz | 280 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
