| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV226M050S9GAACAP ALUM 22UF 20% 50V SMD |
12,305 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 22 µF | ±20% | 50 V | 2Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 49 mA @ 120 Hz | 70 mA @ 100 kHz | 2 Ohms | - | 0.248 Dia (6.30mm) | 0.222 (5.65mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ECA-1EM102CAP ALUM 1000UF 20% 25V RADIAL |
10,927 | 0.80 |
RFQ |
Datasheet |
Bulk | M-A | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.445 A @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FM1E471LCAP ALUM 470UF 20% 25V RADIAL |
12,718 | 0.80 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 470 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FM1V331LCAP ALUM 330UF 20% 35V RADIAL |
10,812 | 0.80 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 330 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.092 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

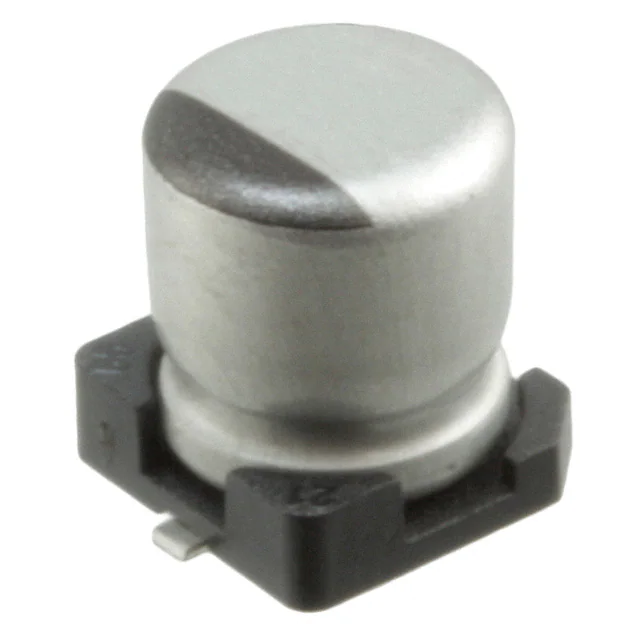

UUT1C220MCL1GSCAP ALUM 22UF 20% 16V SMD |
10,906 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUT | Not For New Designs | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UWJ1V220MCL1GBCAP ALUM 22UF 20% 35V SMD |
12,094 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWJ | Not For New Designs | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 67.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UUJ1V471MNQ6MSCAP ALUM 470UF 20% 35V SMD |
8,768 | 1.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUJ | Not For New Designs | 470 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 735 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
EEE-FT1C821UVCAP ALUM 820UF 20% 16V SMD |
8,694 | 1.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 820 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EDK106M100A9HAACAP ALUM 10UF 20% 100V SMD |
12,753 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 62.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UCY2C151MHD9TOCAP ALUM 150UF 20% 160V RADIAL |
7,166 | 1.80 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 150 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.52 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
EEE-HBC220UARCAP ALUM 22UF 20% 16V SMD |
12,481 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 29.5 mA @ 120 Hz | 50.15 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|

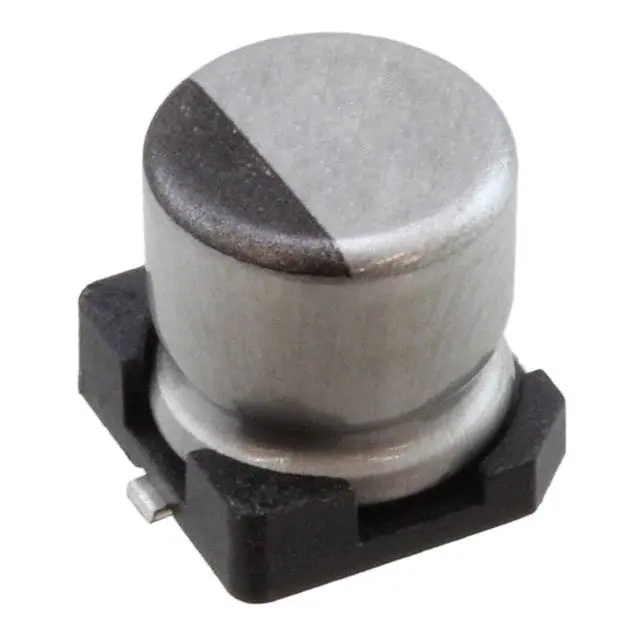

UWZ1E100MCL1GBCAP ALUM 10UF 20% 25V SMD |
14,150 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWZ | Active | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 23 mA @ 120 Hz | 34.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
MAL202137479E3CAP ALUM 47UF 20% 40V AXIAL |
9,750 | 1.98 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 021 ASM | Active | 47 µF | ±20% | 40 V | 3.8Ohm | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 143 mA @ 10 kHz | 1.5 Ohms | - | 0.236 Dia x 0.394 L (6.00mm x 10.00mm) | - | - | Through Hole |
|
|
EEV476M035S9GAACAP ALUM 47UF 20% 35V SMD |
13,307 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 47 µF | ±20% | 35 V | 520mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 168 mA @ 120 Hz | 240 mA @ 100 kHz | 520 mOhms | - | 0.248 Dia (6.30mm) | 0.222 (5.65mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ECA-2EHG100CAP ALUM 10UF 20% 250V RADIAL |
14,085 | 0.81 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 10 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 88 mA @ 120 Hz | 132 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UBT1H470MPD8CAP ALUM 47UF 20% 50V RADIAL |
10,505 | 0.81 |
RFQ |
Datasheet |
Bulk | UBT | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 220 mA @ 120 Hz | 440 mA @ 100 kHz | 350 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
UUR1H470MCL6GSCAP ALUM 47UF 20% 50V SMD |
10,269 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUR | Not For New Designs | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 105 mA @ 120 Hz | 175.35 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.335 (8.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
ECA-2AM101CAP ALUM 100UF 20% 100V RADIAL |
14,832 | 0.81 |
RFQ |
Datasheet |
Bulk | M-A | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 595 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
ECA-1CHG102CAP ALUM 1000UF 20% 16V RADIAL |
13,354 | 0.81 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 644 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
ECA-1HHG331CAP ALUM 330UF 20% 50V RADIAL |
12,275 | 0.81 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 615 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
