| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

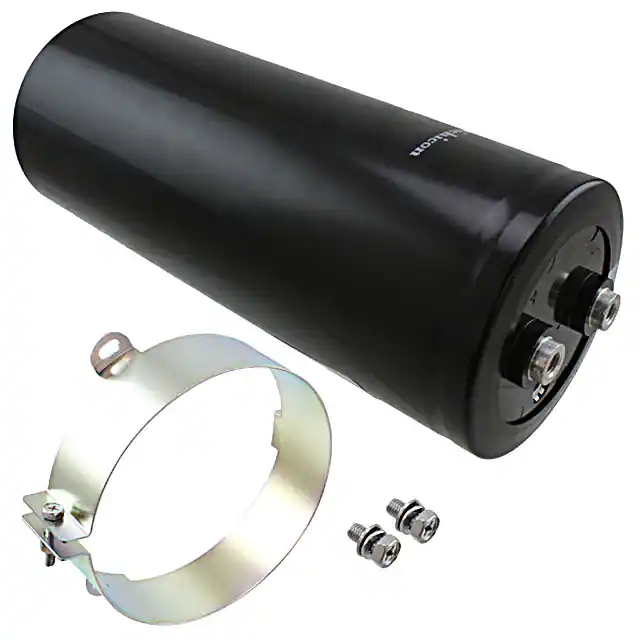

LNX2J562MSEKCAP ALUM 5600UF 20% 630V SCREW |
604 | 437.23 |
RFQ |
Datasheet |
Bulk | LNX | Active | 5600 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 120 Hz | - | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
LGU2P821MELCCAP ALUM 820UF 20% 220V SNAP |
7,306 | 5.56 |
RFQ |
Datasheet |
Bulk | LGU | Active | 820 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
LGR2G151MELZ50CAP ALUM 150UF 20% 400V SNAP |
6,848 | 5.57 |
RFQ |
Datasheet |
Bulk | LGR | Active | 150 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.1726 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
500MXH120MEFCSN25X35CAP ALUM 120UF 20% 500V SNAP |
7,322 | 5.59 |
RFQ |
Datasheet |
Bulk | MXH | Active | 120 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.428 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
B41252A0478M000CAP ALUM 4700UF 20% 80V SNAP |
6,066 | 5.67 |
RFQ |
Datasheet |
Bulk | B41252 | Active | 4700 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43504B5107M000CAP ALUM 100UF 20% 450V SNAP |
8,367 | 5.82 |
RFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 100 µF | ±20% | 450 V | 1.35Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 100 Hz | - | 1.6 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ESMQ351VSN681MR45SCAP ALUM 680UF 20% 350V SNAP |
8,637 | 6.23 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 680 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.2328 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
16MXG22000MEFCSN22X45CAP ALUM 22000UF 20% 16V SNAP |
8,082 | 6.25 |
RFQ |
Datasheet |
Bulk | MXG | Active | 22000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 3.864 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
25USG18000MEFCSN25X40CAP ALUM 18000UF 20% 25V SNAP |
9,501 | 6.25 |
RFQ |
Datasheet |
Bulk | USG | Active | 18000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.68 A @ 120 Hz | 5.382 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
16USG22000MEFCSN30X25CAP ALUM 22000UF 20% 16V SNAP |
8,259 | 6.28 |
RFQ |
Datasheet |
Bulk | USG | Active | 22000 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.52 A @ 120 Hz | 5.198 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
200MXG680MEFCSN25X30CAP ALUM 680UF 20% 200V SNAP |
7,794 | 6.37 |
RFQ |
Datasheet |
Bulk | MXG | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.775 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LGU2Z152MELCCAP ALUM 1500UF 20% 180V SNAP |
9,191 | 6.44 |
RFQ |
Datasheet |
Bulk | LGU | Active | 1500 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|

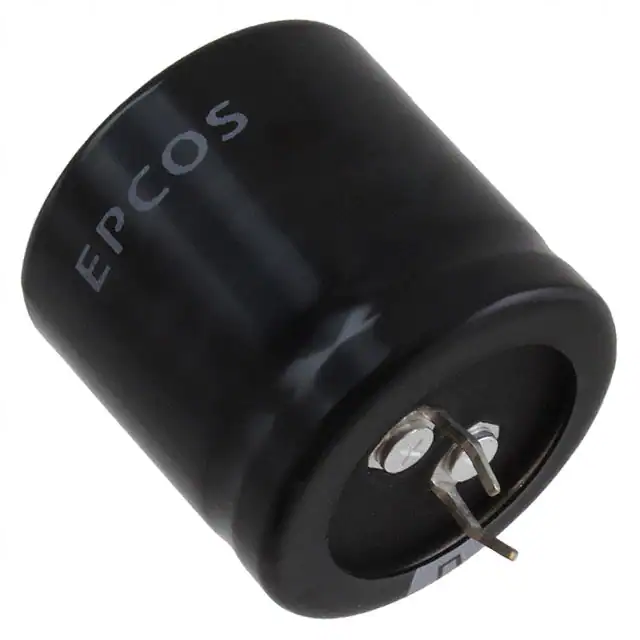

B43505C2337M000CAP ALUM 330UF 20% 250V SNAP |
7,575 | 6.51 |
RFQ |
Datasheet |
Bulk | B43505 | Not For New Designs | 330 µF | ±20% | 250 V | 390mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 100 Hz | - | 470 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

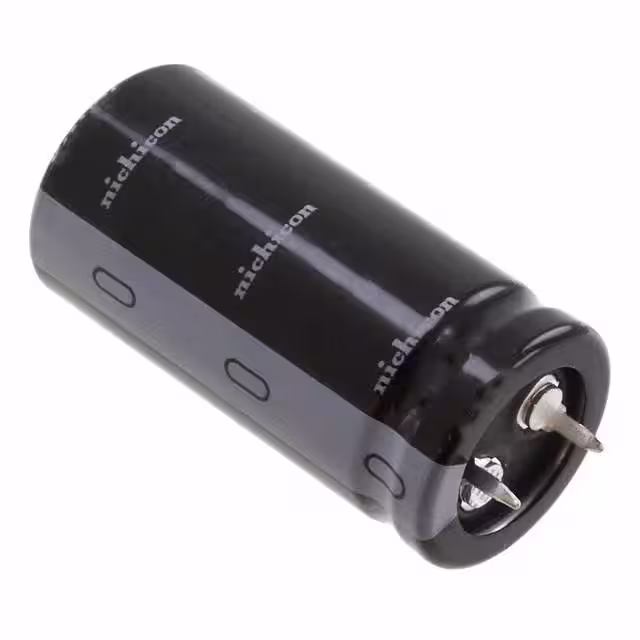

LQS2W181MELZ45CAP ALUM 180UF 20% 450V SNAP |
5,300 | 6.53 |
RFQ |
Datasheet |
Bulk | LQS | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LGU2E821MELBCAP ALUM 820UF 20% 250V SNAP |
8,778 | 6.60 |
RFQ |
Datasheet |
Bulk | LGU | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|

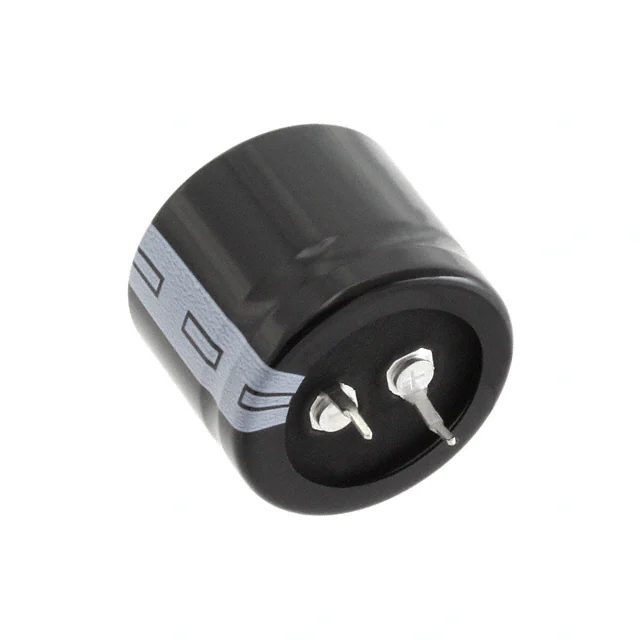

B43504F2477M000CAP ALUM 470UF 20% 200V SNAP |
7,992 | 6.74 |
RFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 470 µF | ±20% | 200 V | 270mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | 330 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
LGU2P102MELCCAP ALUM 1000UF 20% 220V SNAP |
8,624 | 6.75 |
RFQ |
Datasheet |
Bulk | LGU | Active | 1000 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.6 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|

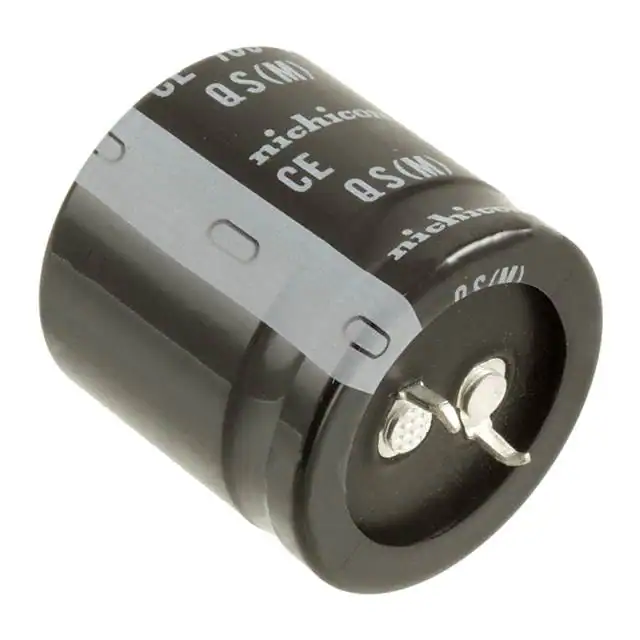

LQS2V331MELB30CAP ALUM 330UF 20% 350V SNAP |
9,144 | 6.87 |
RFQ |
Datasheet |
Bulk | LQS | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
VHT.47M100CAP ALUM 0.47UF 20% 100V RADIAL |
12,481 | 0.03 |
RFQ |
Datasheet |
Bag | VHT | Active | 0.47 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.433 (11.00mm) | - | Through Hole |
|

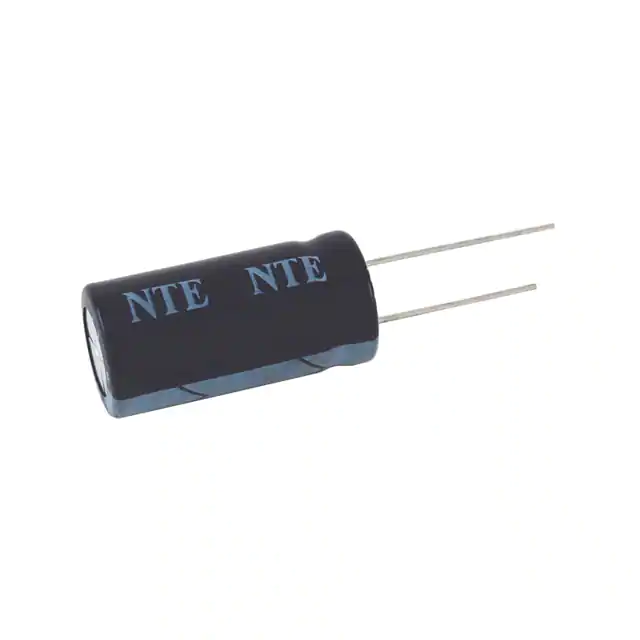

VHT68M10CAP ALUM 68UF 20% 10V RADIAL |
13,515 | 0.04 |
RFQ |
Datasheet |
Bag | VHT | Active | 68 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.433 (11.00mm) | - | Through Hole |
