| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

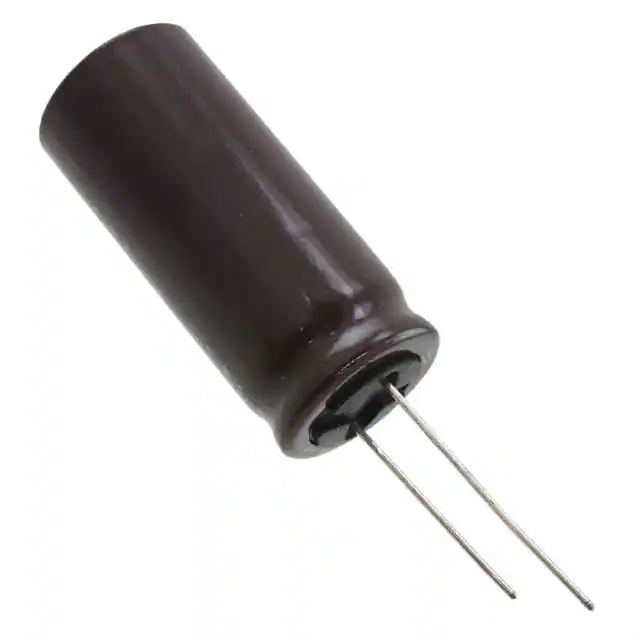

UAS2G121MHDCAP ALUM 120UF 20% 400V RADIAL |
6,816 | 4.90 |
RFQ |
Datasheet |
Bulk | UAS | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 864 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
LNT2G153MSEKCAP ALUM 15000UF 20% 400V SCREW |
753 | 319.31 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 44.5 A @ 120 Hz | - | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 8.819 (224.00mm) | - | Chassis Mount |
|
450MXH120MEFCSN25X25CAP ALUM 120UF 20% 450V SNAP |
8,531 | 4.72 |
RFQ |
Datasheet |
Bulk | MXH | Active | 120 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 960 mA @ 120 Hz | 1.344 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UVR2F221MRDCAP ALUM 220UF 20% 315V RADIAL |
7,210 | 4.94 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 220 µF | ±20% | 315 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.36 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LNK2G183MSEJCAP ALUM 18000UF 20% 400V SCREW |
907 | 322.55 |
RFQ |
Datasheet |
Bulk | LNK | Active | 18000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 41.2 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.252 (235.00mm) | - | Chassis Mount |
|

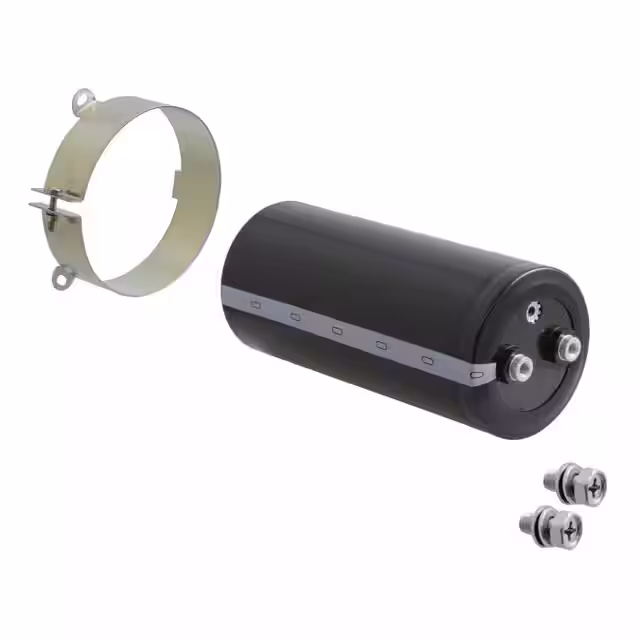

LNX2L822MSEKCAP ALUM 8200UF 20% 550V SCREW |
576 | 326.57 |
RFQ |
Datasheet |
Bulk | LNX | Active | 8200 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.6 A @ 120 Hz | - | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
ESMQ201VSN821MR25SCAP ALUM 820UF 20% 200V SNAP |
5,458 | 4.79 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 820 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.93 A @ 120 Hz | 4.395 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UCYW6121MHD6CAP ALUM 120UF 20% 420V RADIAL |
5,661 | 5.03 |
RFQ |
Datasheet |
Bulk | UCY | Active | 120 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 945 mA @ 120 Hz | 1.89 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
LAQ2P151MELZ25CAP ALUM 150UF 20% 220V SNAP |
6,931 | 4.90 |
RFQ |
Datasheet |
Bulk | LAQ | Active | 150 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 780 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESMG500ELL332MMP1SCAP ALUM 3300UF 20% 50V RADIAL |
7,674 | 5.17 |
RFQ |
Datasheet |
Bulk | SMG | Active | 3300 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.7 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LGU2C821MELCCAP ALUM 820UF 20% 160V SNAP |
7,577 | 5.02 |
RFQ |
Datasheet |
Bulk | LGU | Active | 820 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.06 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
LNK2H103MSEJCAP ALUM 10000UF 20% 500V SCREW |
561 | 360.31 |
RFQ |
Datasheet |
Bulk | LNK | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.3 A @ 120 Hz | 41.02 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.252 (235.00mm) | - | Chassis Mount |
|
LQS2V181MELA25CAP ALUM 180UF 20% 350V SNAP |
9,861 | 5.09 |
RFQ |
Datasheet |
Bulk | LQS | Active | 180 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.287 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
63MXG2700MEFCSN22X30CAP ALUM 2700UF 20% 63V SNAP |
6,578 | 5.13 |
RFQ |
Datasheet |
Bulk | MXG | Active | 2700 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 2.4265 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LNT2H103MSEJCAP ALUM 10000UF 20% 500V SCREW |
778 | 386.08 |
RFQ |
Datasheet |
Bulk | LNT | Active | 10000 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 29.9 A @ 120 Hz | 41.86 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.961 (253.00mm) | - | Chassis Mount |
|
UPW2F221MRDCAP ALUM 220UF 20% 315V RADIAL |
8,305 | 5.42 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 220 µF | ±20% | 315 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 864 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
LQS2V221MELZ35CAP ALUM 220UF 20% 350V SNAP |
6,794 | 5.20 |
RFQ |
Datasheet |
Bulk | LQS | Active | 220 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LNT2V223MSEKCAP ALUM 22000UF 20% 350V SCREW |
508 | 393.78 |
RFQ |
Datasheet |
Bulk | LNT | Active | 22000 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 48 A @ 120 Hz | - | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|

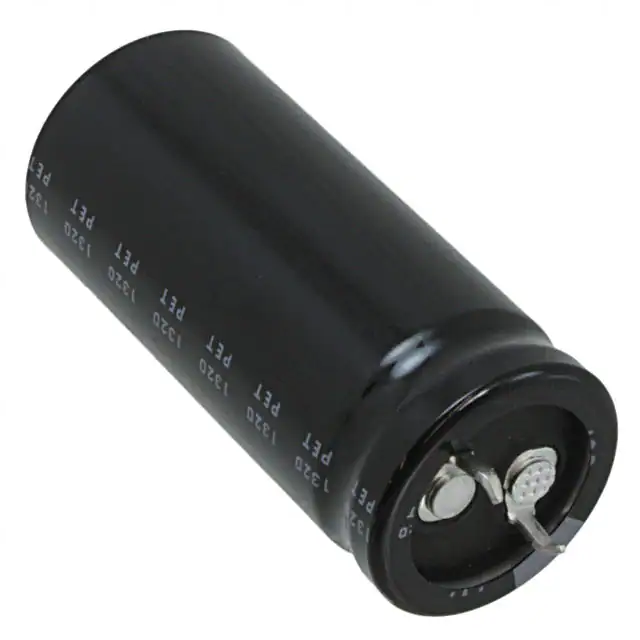

LGR2W101MELZ50CAP ALUM 100UF 20% 450V SNAP |
9,055 | 5.32 |
RFQ |
Datasheet |
Bulk | LGR | Active | 100 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 915.2 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LGU2Z102MELCCAP ALUM 1000UF 20% 180V SNAP |
9,894 | 5.32 |
RFQ |
Datasheet |
Bulk | LGU | Active | 1000 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
