| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ULD2D4R7MED1TDCAP ALUM 4.7UF 20% 200V RADIAL |
14,113 | 0.61 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ULD | Not For New Designs | 4.7 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 98 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.512 (13.00mm) | - | Through Hole |
|
UWG1C470MCL1GBCAP ALUM 47UF 20% 16V SMD |
14,780 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWG | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 70 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UCS2D820MHD1TNCAP ALUM 82UF 20% 200V RADIAL |
8,981 | 1.71 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCS | Active | 82 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.38 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UBX2D150MPL1TDCAP ALUM 15UF 20% 200V RADIAL |
6,404 | 2.01 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBX | Active | 15 µF | ±20% | 200 V | - | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | 130 mA @ 120 Hz | 234 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UPS2F3R3MPD1TDCAP ALUM 3.3UF 20% 315V RADIAL |
11,562 | 0.54 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 3.3 µF | ±20% | 315 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
Series.jpg)
|
EEE-FN1J100LCAP ALUM 10UF 20% 63V SMD |
13,471 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN, Halogen Free | Active | 10 µF | ±20% | 63 V | 1.5Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 52 mA @ 120 Hz | 80 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FN1A151LCAP ALUM 150UF 20% 10V SMD |
12,671 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN, Halogen Free | Active | 150 µF | ±20% | 10 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FN1V470LCAP ALUM 47UF 20% 35V SMD |
12,941 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN, Halogen Free | Active | 47 µF | ±20% | 35 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

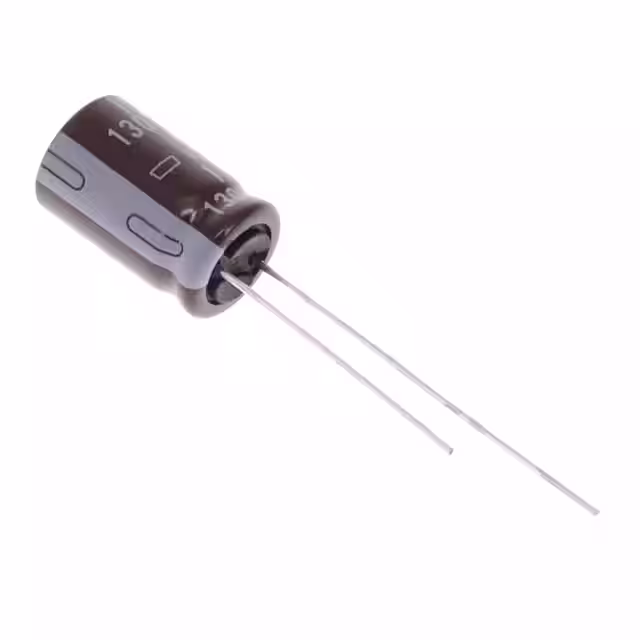

EKYC160ELL132MJ16SCAP ALUM 1300UF 20% 16V RADIAL |
11,692 | 0.90 |
RFQ |
Datasheet |
Bulk | KYC | Active | 1300 µF | ±20% | 16 V | 100mOhm @ 100kHz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 942 mA @ 120 Hz | 1.57 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
ESMG100ELL102MJC5SCAP ALUM 1000UF 20% 10V RADIAL |
14,638 | 0.92 |
RFQ |
Datasheet |
Bulk | SMG | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 975 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
ESMG630ELL101MJC5SCAP ALUM 100UF 20% 63V RADIAL |
13,115 | 0.92 |
RFQ |
Datasheet |
Bulk | SMG | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 450 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|

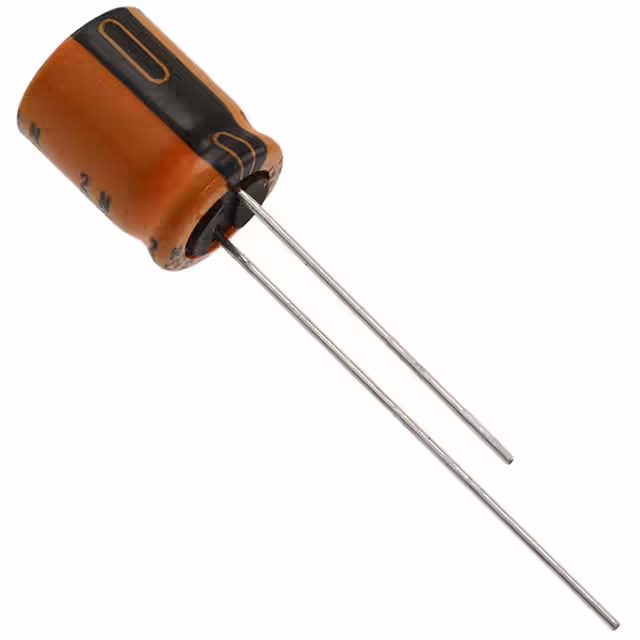

EGXL100ELL471MJC5SCAP ALUM 470UF 20% 10V RADIAL |
11,662 | 0.92 |
RFQ |
Datasheet |
Bulk | GXL | Active | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 400 mA @ 120 Hz | 800 mA @ 100 kHz | 170 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UHW1A152MPDCAP ALUM 1500UF 20% 10V RADIAL |
13,964 | 0.92 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 1500 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 2 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UCL1C680MCL1GSCAP ALUM 68UF 20% 16V SMD |
14,836 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCL | Active | 68 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPJ1V122MHD6TNCAP ALUM 1200UF 20% 35V RADIAL |
5,076 | 1.75 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 1200 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 1.98 A @ 10 kHz | 41 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UPS2E3R3MPD1TDCAP ALUM 3.3UF 20% 250V RADIAL |
12,288 | 0.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 3.3 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 42 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EEE-HP0J100RCAP ALUM 10UF 20% 6.3V SMD |
11,933 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 10 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | AEC-Q200 | Automotive | - | - | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | - | Surface Mount |
|
865060243004CAP ALUM 100UF 20% 10V SMD |
12,800 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASLL | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 156 mA @ 120 Hz | 240 mA @ 100 kHz | 440 mOhms | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UHE1V561MPDCAP ALUM 560UF 20% 35V RADIAL |
13,202 | 0.94 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 560 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.238 A @ 120 Hz | 1.65 A @ 100 kHz | 42 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
UCS2V100MPDCAP ALUM 10UF 20% 350V RADIAL |
12,612 | 0.94 |
RFQ |
Datasheet |
Bulk | UCS | Active | 10 µF | ±20% | 350 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 350 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
