| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCD1E680MCL1GSCAP ALUM 68UF 20% 25V SMD |
12,846 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 68 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-FP1C681AVCAP ALUM 680UF 20% 16V SMD |
8,485 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 680 µF | ±20% | 16 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UPJ2A181MHD6TNCAP ALUM 180UF 20% 100V RADIAL |
6,457 | 1.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 180 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 706 mA @ 120 Hz | 995 mA @ 10 kHz | 110 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPJ2A221MHD6TNCAP ALUM 220UF 20% 100V RADIAL |
6,831 | 1.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 220 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 854 mA @ 120 Hz | 1.17 A @ 10 kHz | 93 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UBX1K330MPL1TDCAP ALUM 33UF 20% 80V RADIAL |
9,785 | 1.84 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBX | Active | 33 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 210 mA @ 120 Hz | 420 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
URZ1A332MHD1TNCAP ALUM 3300UF 20% 10V RADIAL |
8,432 | 1.57 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URZ | Active | 3300 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.081 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EXV476M6R3A9DAACAP ALUM 47UF 20% 6.3V SMD |
13,257 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXV | Active | 47 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 112 mA @ 120 Hz | 160 mA @ 100 kHz | 1 Ohms | - | 0.197 Dia (5.00mm) | 0.222 (5.65mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
EEE-TP1C101AVCAP ALUM 100UF 20% 16V SMD |
7,805 | 1.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 100 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TP1E101AVCAP ALUM 100UF 20% 25V SMD |
8,730 | 1.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 100 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TP1V101AVCAP ALUM 100UF 20% 35V SMD |
5,234 | 1.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 100 µF | ±20% | 35 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UVK0J103MHD1TNCAP ALUM 10000UF 20% 6.3V RADIAL |
9,981 | 1.57 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 10000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.7025 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UWD1H150MCL1GSCAP ALUM 15UF 20% 50V SMD |
12,747 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 15 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 82.5 mA @ 120 Hz | 165 mA @ 100 kHz | 880 mOhms | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UWD1V270MCL1GSCAP ALUM 27UF 20% 35V SMD |
13,965 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 27 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 440 mOhms | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UWD1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
11,585 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 440 mOhms | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
400CFX4.7MEFC10X16CAP ALUM 4.7UF 20% 400V RADIAL |
11,031 | 0.85 |
RFQ |
Datasheet |
Bulk | CFX | Active | 4.7 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 44 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.709 (18.00mm) | - | Through Hole |
|
UWF1E330MCL1GBCAP ALUM 33UF 20% 25V SMD |
10,401 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWF | Not For New Designs | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | 1.3 Ohms | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UVR2D330MHDCAP ALUM 33UF 20% 200V RADIAL |
13,912 | 0.91 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 33 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 368 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
860080274010CAP ALUM 390UF 20% 10V RADIAL |
13,356 | 0.30 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLI | Active | 390 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 620 mA @ 100 kHz | 95 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UWZ1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
10,045 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWZ | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 66 mA @ 120 Hz | 99 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

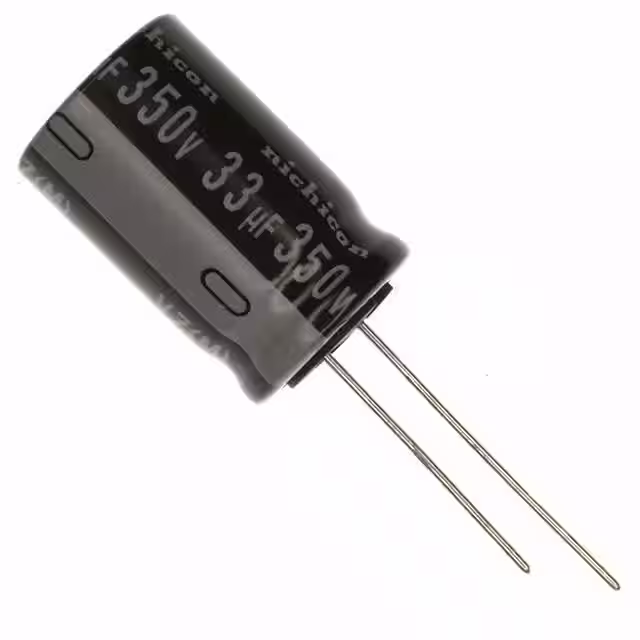

UVZ2V330MHD1TNCAP ALUM 33UF 20% 350V RADIAL |
9,204 | 1.74 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 33 µF | ±20% | 350 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 312 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
