| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

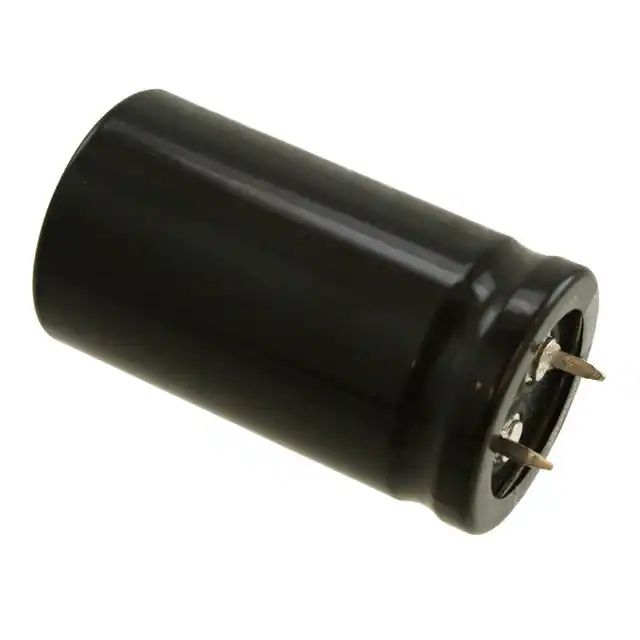

LGU1H682MELACAP ALUM 6800UF 20% 50V SNAP |
5,639 | 4.32 |
RFQ |
Datasheet |
Bulk | LGU | Active | 6800 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.37 A @ 120 Hz | 3.8755 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LGY1C223MELB35CAP ALUM 22000UF 20% 16V SNAP |
6,830 | 4.32 |
RFQ |
Datasheet |
Bulk | LGY | Active | 22000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
ELXS201VSN152MR45SCAP ALUM 1500UF 20% 200V SNAP |
1,825 | 10.09 |
RFQ |
Datasheet |
Bulk | LXS | Active | 1500 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.34 A @ 120 Hz | 5.01 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
450VXG330MEFCSN30X45CAP ALUM 330UF 20% 450V SNAP |
2,875 | 10.10 |
RFQ |
Datasheet |
Bulk | VXG | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.52 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LGX2D182MELC45CAP ALUM 1800UF 20% 200V SNAP |
3,901 | 10.11 |
RFQ |
Datasheet |
Bulk | LGX | Active | 1800 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.28 A @ 120 Hz | 4.92 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LGY1E123MELZ45CAP ALUM 12000UF 20% 25V SNAP |
7,233 | 4.34 |
RFQ |
Datasheet |
Bulk | LGY | Active | 12000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LLS1E153MELACAP ALUM 15000UF 20% 25V SNAP |
5,677 | 4.34 |
RFQ |
Datasheet |
Bulk | LLS | Active | 15000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 4.715 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

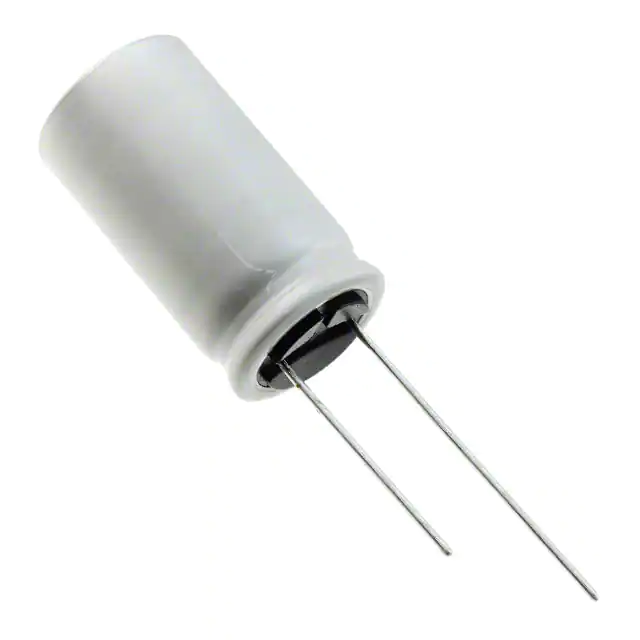

EGPD630ELL122ML30HCAP ALUM 1200UF 20% 63V RADIAL |
6,685 | 4.34 |
RFQ |
Datasheet |
Bulk | GPD | Active | 1200 µF | ±20% | 63 V | 34mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.316 A @ 120 Hz | 3.86 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
EGPD101ELL471ML30HCAP ALUM 470UF 20% 100V RADIAL |
6,396 | 4.34 |
RFQ |
Datasheet |
Bulk | GPD | Active | 470 µF | ±20% | 100 V | 41mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.72 A @ 120 Hz | 3.44 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
UBY2A511MHLCAP ALUM 510UF 20% 100V RADIAL |
6,925 | 4.34 |
RFQ |
Datasheet |
Bulk | UBY | Active | 510 µF | ±20% | 100 V | 35mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.54 A @ 120 Hz | 3.08 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UHW1K122MHDCAP ALUM 1200UF 20% 80V RADIAL |
5,438 | 4.35 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 1200 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.106 A @ 120 Hz | 3.51 A @ 100 kHz | 28 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
450BXW82MEFR16X35CAP ALUM 82UF 20% 450V RADIAL |
6,415 | 4.35 |
RFQ |
Datasheet |
Bulk | BXW | Active | 82 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.725 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
EGXF500ELL222MM30SCAP ALUM 2200UF 20% 50V RAD TH |
5,761 | 4.35 |
RFQ |
Datasheet |
Bulk | GXF | Active | 2200 µF | ±20% | 50 V | 21mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.498 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
LGJ2G470MELA15CAP ALUM 47UF 20% 400V SNAP |
9,560 | 4.36 |
RFQ |
Datasheet |
Bulk | LGJ | Active | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 350 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UHW1K122MHD6CAP ALUM 1200UF 20% 80V RADIAL |
5,517 | 4.36 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 1200 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.716 A @ 120 Hz | 2.86 A @ 100 kHz | 31 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPS2E221MRDCAP ALUM 220UF 20% 250V RADIAL |
8,908 | 4.37 |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 220 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 525 mA @ 120 Hz | 840 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

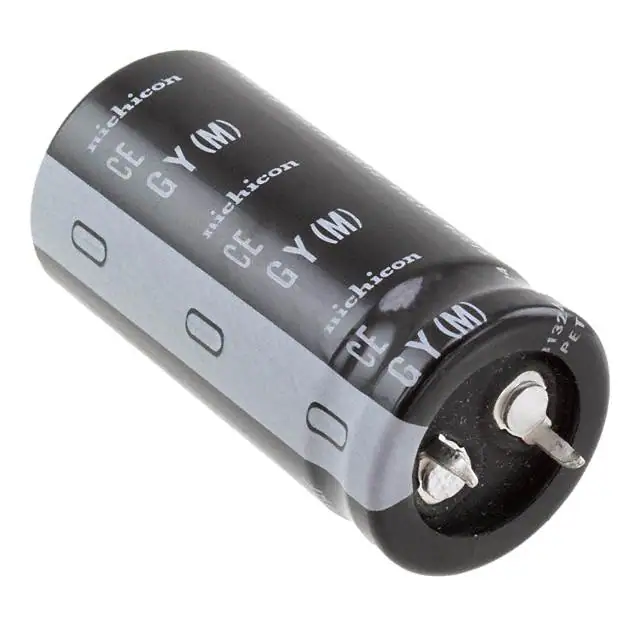

LGY1H682MELA45CAP ALUM 6800UF 20% 50V SNAP |
7,988 | 4.37 |
RFQ |
Datasheet |
Bulk | LGY | Active | 6800 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

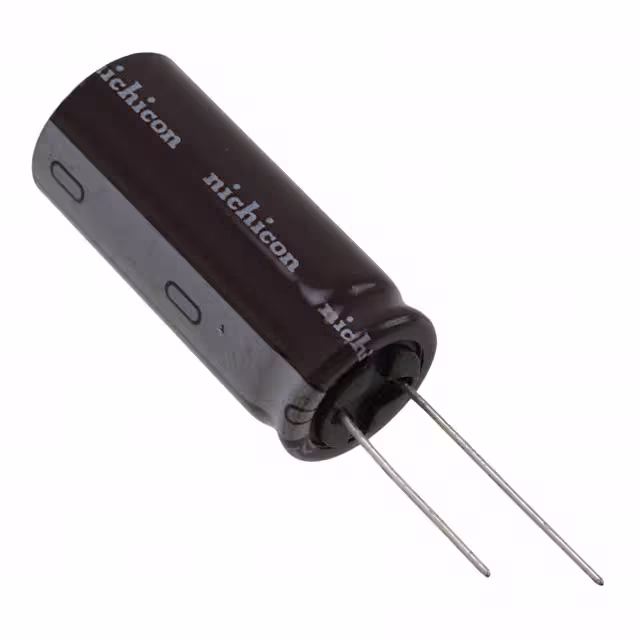

UPT2W101MHDCAP ALUM 100UF 20% 450V RADIAL |
8,217 | 4.37 |
RFQ |
Datasheet |
Bulk | UPT | Active | 100 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 650 mA @ 120 Hz | 1.04 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
UPZ2E121MND9CAP ALUM 120UF 20% 250V RADIAL |
7,121 | 4.40 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 120 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.036 A @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LGL2W331MELA45CAP ALUM 330UF 20% 450V SNAP |
1,883 | 10.25 |
RFQ |
Datasheet |
Bulk | LGL | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6016 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
