| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

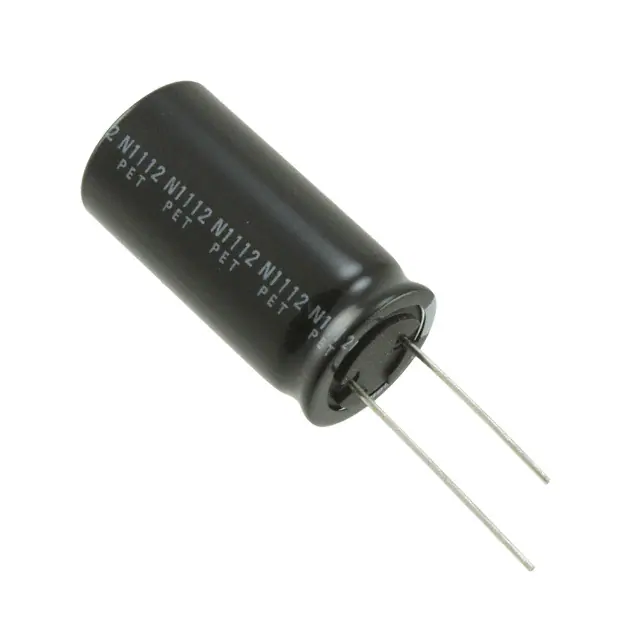

200KXW390MEFC18X35CAP ALUM 390UF 20% 200V RADIAL |
5,460 | 4.04 |
RFQ |
Datasheet |
Bulk | KXW | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.582 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
450USG560MEFCSN35X40CAP ALUM 560UF 20% 450V SNAP |
6,385 | 9.41 |
RFQ |
Datasheet |
Bulk | USG | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.82 A @ 120 Hz | 3.948 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
SLPX222M080C3P3CAP ALUM 2200UF 20% 80V SNAP |
5,548 | 4.06 |
RFQ |
Datasheet |
Bulk | SLPX | Active | 2200 µF | ±20% | 80 V | 151mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.16 A @ 20 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ESMQ201VSN272MA50SCAP ALUM 2700UF 20% 200V SNAP |
8,584 | 9.43 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 2700 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.45 A @ 120 Hz | 8.175 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
LGUW6471MELCCAP ALUM 470UF 20% 420V SNAP |
6,278 | 9.44 |
RFQ |
Datasheet |
Bulk | LGU | Active | 470 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
LGY1V682MELA35CAP ALUM 6800UF 20% 35V SNAP |
5,639 | 4.07 |
RFQ |
Datasheet |
Bulk | LGY | Active | 6800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LLS1V103MELZCAP ALUM 10000UF 20% 35V SNAP |
9,361 | 4.07 |
RFQ |
Datasheet |
Bulk | LLS | Active | 10000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.75 A @ 120 Hz | 4.3125 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

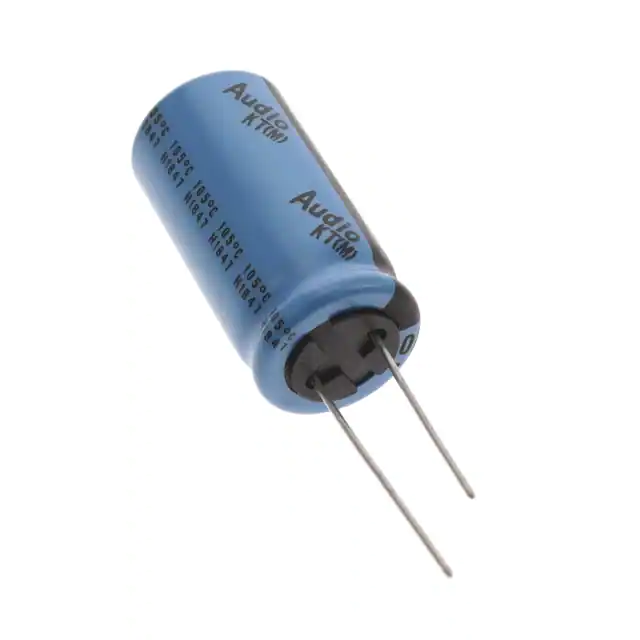

UKT1C103MHDCAP ALUM 10000UF 20% 16V RADIAL |
9,889 | 4.08 |
RFQ |
Datasheet |
Bulk | UKT | Not For New Designs | 10000 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.06 A @ 120 Hz | 2.369 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LGU1E123MELZCAP ALUM 12000UF 20% 25V SNAP |
6,363 | 4.09 |
RFQ |
Datasheet |
Bulk | LGU | Active | 12000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.0935 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LLS1J332MELBCAP ALUM 3300UF 20% 63V SNAP |
7,148 | 4.09 |
RFQ |
Datasheet |
Bulk | LLS | Active | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 3.266 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B43305E2108M000CAP ALUM 1000UF 20% 250V SNAP |
6,649 | 9.50 |
RFQ |
Datasheet |
Bulk | B43305 | Not For New Designs | 1000 µF | ±20% | 250 V | 130mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.08 A @ 100 Hz | - | 180 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
EEU-TP1E222CAP ALUM 2200UF 20% 25V RADIAL |
6,805 | 4.10 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
400BXW100MEFR12.5X50CAP ALUM 100UF 20% 400V RADIAL |
9,076 | 4.10 |
RFQ |
Datasheet |
Bulk | BXW | Active | 100 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.71 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 2.047 (52.00mm) | - | Through Hole |
|
LGN2W560MELY25CAP ALUM 56UF 20% 450V SNAP |
9,967 | 4.11 |
RFQ |
Datasheet |
Bulk | LGN | Active | 56 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
LGY1H472MELA35CAP ALUM 4700UF 20% 50V SNAP |
7,607 | 4.11 |
RFQ |
Datasheet |
Bulk | LGY | Active | 4700 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.415 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LGY1E103MELB30CAP ALUM 10000UF 20% 25V SNAP |
8,135 | 4.12 |
RFQ |
Datasheet |
Bulk | LGY | Active | 10000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 2.645 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LGX2H271MELB50CAP ALUM 270UF 20% 500V SNAP |
7,855 | 9.53 |
RFQ |
Datasheet |
Bulk | LGX | Active | 270 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43505C9157M000CAP ALUM 150UF 20% 400V SNAP |
9,870 | 9.54 |
RFQ |
Datasheet |
Bulk | B43505 | Not For New Designs | 150 µF | ±20% | 400 V | 590mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 100 Hz | - | 730 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LGN2V221MELZ35CAP ALUM 220UF 20% 350V SNAP |
5,784 | 4.13 |
RFQ |
Datasheet |
Bulk | LGN | Active | 220 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
LGNW6820MELY25CAP ALUM 82UF 20% 420V SNAP |
9,311 | 4.14 |
RFQ |
Datasheet |
Bulk | LGN | Active | 82 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 915.2 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole |
