| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63ZLH820MEFC16X25CAP ALUM 820UF 20% 63V RADIAL |
7,949 | 1.83 |
RFQ |
Datasheet |
Bulk | ZLH | Active | 820 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.638 A @ 120 Hz | - | 32 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

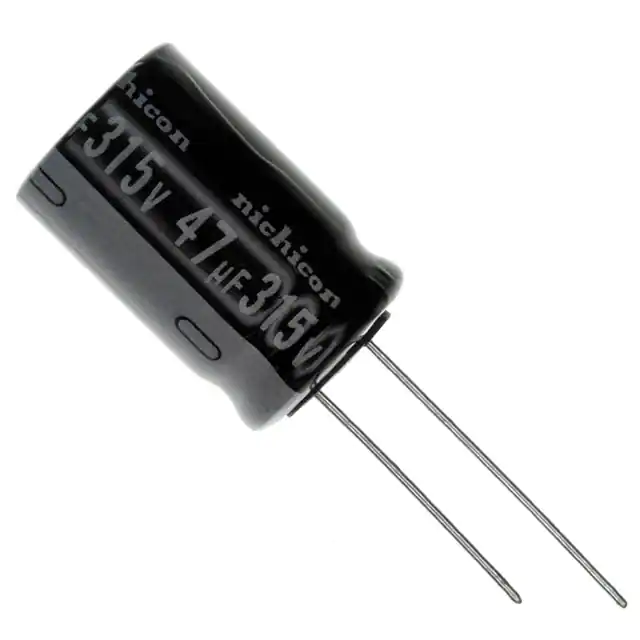

UVZ2F470MHDCAP ALUM 47UF 20% 315V RADIAL |
5,178 | 1.83 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 47 µF | ±20% | 315 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 368 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EGXE251ELL220MK20SCAP ALUM 22UF 20% 250V RADIAL |
7,043 | 1.83 |
RFQ |
Datasheet |
Bulk | GXE | Active | 22 µF | ±20% | 250 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 128 mA @ 120 Hz | 230.4 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
Series.jpg)
|

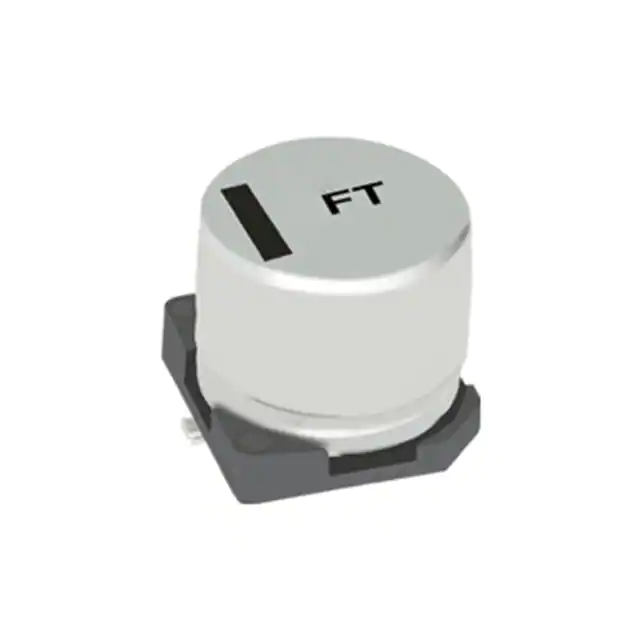

EEE-FT1E821ALCAP ALUM 820UF 20% 25V SMD |
9,681 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 820 µF | ±20% | 25 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FT1H331ALCAP ALUM 330UF 20% 50V SMD |
7,275 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 330 µF | ±20% | 50 V | 120mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 585 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FT0J222ALCAP ALUM 2200UF 20% 6.3V SMD |
7,335 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 2200 µF | ±20% | 6.3 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FT1A152ALCAP ALUM 1500UF 20% 10V SMD |
9,849 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 1500 µF | ±20% | 10 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EKMG101ELL221MK25SCAP ALUM 220UF 20% 100V RADIAL |
7,243 | 1.55 |
RFQ |
Datasheet |
Bulk | KMG | Active | 220 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 660 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
ELXZ250ELL102MK20SCAP ALUM 1000UF 20% 25V RADIAL |
6,665 | 1.55 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 1000 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 996 mA @ 120 Hz | 1.66 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
ELXZ350ELL681MK20SCAP ALUM 680UF 20% 35V RADIAL |
6,600 | 1.55 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 680 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 996 mA @ 120 Hz | 1.66 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
100ZLH270MEFC12.5X30CAP ALUM 270UF 20% 100V RADIAL |
8,005 | 1.55 |
RFQ |
Datasheet |
Bulk | ZLH | Active | 270 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 975 mA @ 120 Hz | 1.95 A @ 100 kHz | 51 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.260 (32.00mm) | - | Through Hole |
|
EEE-FN1A102VCAP ALUM 1000UF 20% 10V SMD |
5,223 | 1.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN, Anti-Vibration | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FN1J101VCAP ALUM 100UF 20% 63V SMD |
7,102 | 1.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN, Anti-Vibration | Active | 100 µF | ±20% | 63 V | 350mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UUG1E222MNQ1MSCAP ALUM 2200UF 20% 25V SMD |
9,841 | 2.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUG | Not For New Designs | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.5525 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.689 (17.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
EEU-ED2C101BCAP ALUM 100UF 20% 160V RADIAL |
7,898 | 1.63 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ED-A | Active | 100 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 526.5 mA @ 120 Hz | 1.17 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-FK1J151AVCAP ALUM 150UF 20% 63V SMD |
9,969 | 2.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 150 µF | ±20% | 63 V | 160mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.555 (14.10mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
UPV1E820MGDCAP ALUM 82UF 20% 25V RADIAL |
11,252 | 0.73 |
RFQ |
Datasheet |
Bulk | UPV | Not For New Designs | 82 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 510 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
10ZLS1800MEFC10X20CAP ALUM 1800UF 20% 10V RADIAL |
11,952 | 0.73 |
RFQ |
Datasheet |
Bulk | ZLS | Active | 1800 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.176 A @ 120 Hz | 1.96 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
400LEX2.2MEFC8X11.5CAP ALUM 2.2UF 20% 400V RADIAL |
11,005 | 0.73 |
RFQ |
Datasheet |
Bulk | LEX | Active | 2.2 µF | ±20% | 400 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 40 mA @ 120 Hz | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
250LLE12MEFC10X12.5CAP ALUM 12UF 20% 250V RADIAL |
14,169 | 0.73 |
RFQ |
Datasheet |
Bulk | LLE | Active | 12 µF | ±20% | 250 V | - | 15000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 97 mA @ 120 Hz | 184 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
