| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVR1A682MHDCAP ALUM 6800UF 20% 10V RADIAL |
7,176 | 1.51 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 2.5875 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UHE1C272MHDCAP ALUM 2700UF 20% 16V RADIAL |
7,475 | 1.51 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 2700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 2.65 A @ 100 kHz | 24 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
UKL2A220MPDCAP ALUM 22UF 20% 100V RADIAL |
10,963 | 0.71 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 22 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 136 mA @ 120 Hz | 272 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
UCQ1E221MCL1GSCAP ALUM 220UF 20% 25V SMD |
5,847 | 1.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCQ | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 250 mA @ 120 Hz | 375 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-HD1A222BCAP ALUM 2200UF 20% 10V RADIAL |
6,809 | 1.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 2200 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 874 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
EEU-HD1E102BCAP ALUM 1000UF 20% 25V RADIAL |
6,506 | 1.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 782 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
EEU-HD1H331BCAP ALUM 330UF 20% 50V RADIAL |
7,103 | 1.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 615 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UPM1E122MHD1TOCAP ALUM 1200UF 20% 25V RADIAL |
5,998 | 1.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.76 A @ 10 kHz | 32 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UUJ1E102MNQ6MSCAP ALUM 1000UF 20% 25V SMD |
8,679 | 2.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUJ | Not For New Designs | 1000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 805 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.886 (22.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UHE1A392MHD6CAP ALUM 3900UF 20% 10V RADIAL |
5,404 | 1.48 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 3900 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.024 A @ 120 Hz | 2.53 A @ 100 kHz | 27 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
UHE1E122MHDCAP ALUM 1200UF 20% 25V RADIAL |
5,983 | 1.48 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 1200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.768 A @ 120 Hz | 2.21 A @ 100 kHz | 43 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
UPW2V220MHDCAP ALUM 22UF 20% 350V RADIAL |
8,701 | 1.48 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 22 µF | ±20% | 350 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 208 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

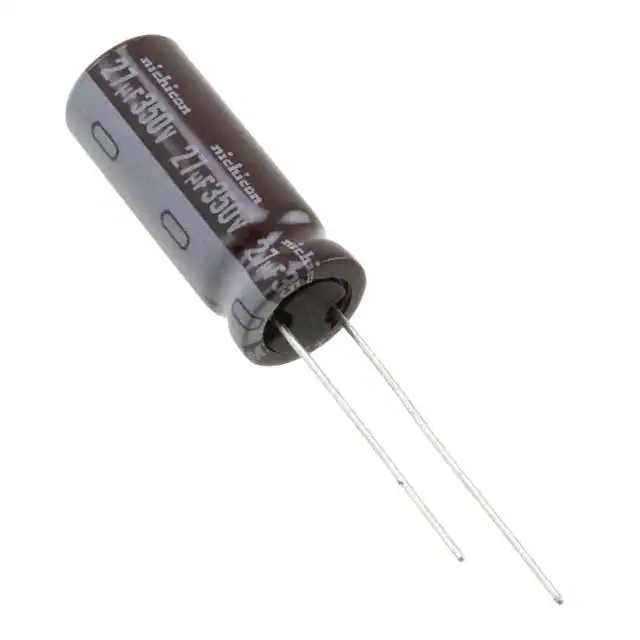

UCY2V270MPD9CAP ALUM 27UF 20% 350V RADIAL |
5,560 | 1.48 |
RFQ |
Datasheet |
Bulk | UCY | Active | 27 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 255 mA @ 120 Hz | 510 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UCY2D820MHD9CAP ALUM 82UF 20% 200V RADIAL |
6,695 | 1.48 |
RFQ |
Datasheet |
Bulk | UCY | Active | 82 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 1.29 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UCY2D680MHD3TOCAP ALUM 68UF 20% 200V RADIAL |
6,795 | 1.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 68 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
10ZL4700MEFC12.5X35CAP ALUM 4700UF 20% 10V RADIAL |
8,894 | 1.49 |
RFQ |
Datasheet |
Bulk | ZL | Active | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 3.4 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
EEU-FC1C272LCAP ALUM 2700UF 20% 16V RADIAL |
9,082 | 1.49 |
RFQ |
Datasheet |
Bulk | FC | Active | 2700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.964 A @ 120 Hz | 2.31 A @ 100 kHz | 25 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.181 (30.00mm) | - | Through Hole |
|

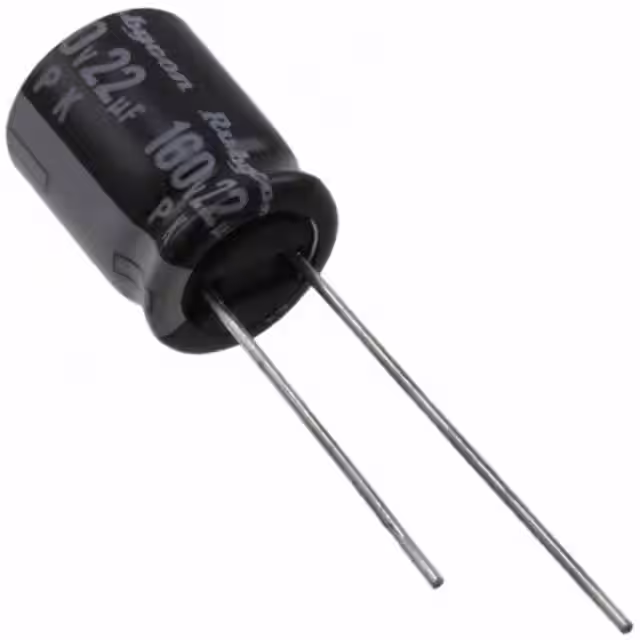

160PK22MEFC10X12.5CAP ALUM 22UF 20% 160V RADIAL |
11,461 | 0.70 |
RFQ |
Datasheet |
Bulk | PK | Active | 22 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 195 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
ECA-1AHG472CAP ALUM 4700UF 20% 10V RADIAL |
8,729 | 1.49 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.449 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECA-1CHG332CAP ALUM 3300UF 20% 16V RADIAL |
6,398 | 1.49 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 3300 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.346 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
