| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESDSLC5V0LB-TPTVS DIODE 5VWM 20VC DFN1006 |
14,935 | 0.28 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 4A (8/20µs) | 80W | No | General Purpose | 0.26pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
DF2S6M4CT,L3FTVS DIODE 5.5VWM 15VC CST2 |
14,104 | 0.30 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5.5V (Max) | 5.6V | 15V | 2A (8/20µs) | 30W | No | - | 0.35pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
ESD239B1W0201E6327XTSA1TVS DIODE 22VWM 26.5VC WLL-2-3 |
10,716 | 0.30 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 22V | - | 26.5V | 3A (8/20µs) | 80W | No | General Purpose | 3.2pF @ 1GHz | -55°C ~ 125°C | Surface Mount |
|
DF2B7AFU,H3FTVS DIODE 5.5VWM 20VC USC |
11,267 | 0.22 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5.5V (Max) | 5.8V | 20V | 4A (8/20µs) | 80W | No | General Purpose | 8.5pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
ESD5Z5.0T5GTVS DIODE 5VWM 18.6VC SOD523 |
14,190 | 0.26 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6.2V | 18.6V | 9.4A (8/20µs) | 174W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
MMBZ27VCLT1GTVS DIODE 22VWM 38VC SOT23-3 |
12,147 | 0.25 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 2 | 1 | 22V | 25.65V | 38V | 1A | 40W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MMBZ33VALT1GTVS DIODE 26VWM 46VC SOT23-3 |
13,166 | 0.25 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 2 | 1 | 26V | 31.35V | 46V | 870mA | 40W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESD9X12ST5GTVS DIODE 12VWM 23.7VC SOD923 |
14,392 | 0.30 |
RFQ |
Datasheet |

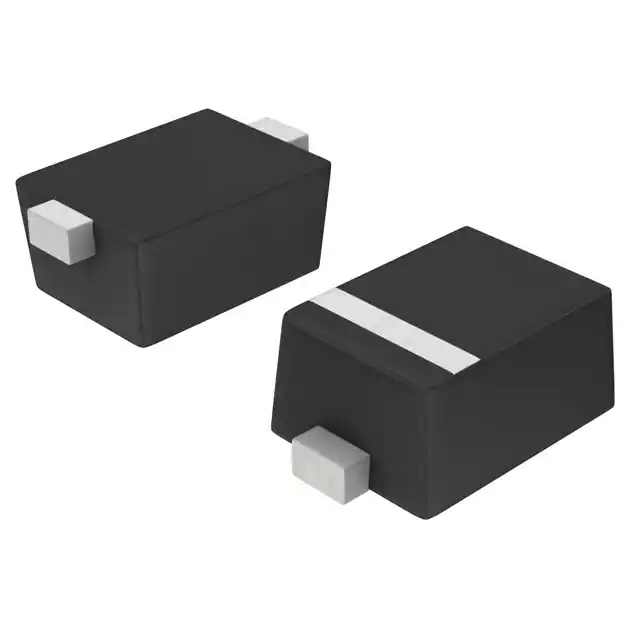

SOD-923 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 1 | - | 12V (Max) | 13.5V | 23.7V | 5.9A (8/20µs) | 140W | No | General Purpose | 30pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
MMBZ9V1ALT1GTVS DIODE 6VWM 14VC SOT23-3 |
12,459 | 0.27 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 2 | 1 | 6V | 8.65V | 14V | 1.7A | 24W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
PESD5V0V1BL,315TVS DIODE 5VWM 12.5VC DFN1006-2 |
14,121 | 0.37 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 5V (Max) | 5.8V | 12.5V | 4.8A (8/20µs) | 45W | No | Automotive | 11pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
DF3D6.8MS,LFTVS DIODE 5VWM 11VC SSM |
13,229 | 0.28 |
RFQ |
Datasheet |

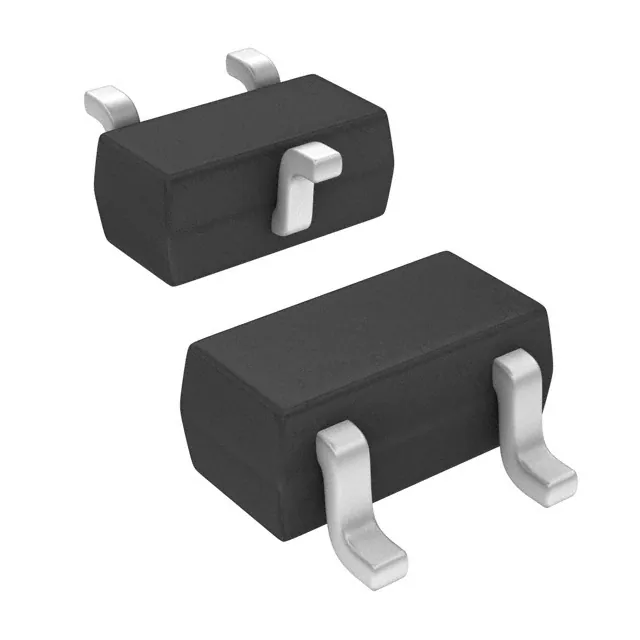

SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 11V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | 0.5pF @ 1MHz | - | Surface Mount |
|
CEZ12V,L3FTVS DIODE 12VWM 26VC ESC |
13,784 | 0.32 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | CEZ | Active | Zener | 1 | - | 12V | 11.4V | 26V (Typ) | 7A (8/20µs) | 200W | No | General Purpose | 44pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
|
ESD5Z6.0T1GTVS DIODE 6VWM 20.5VC SOD523 |
14,233 | 0.28 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 1 | - | 6V (Max) | 6.8V | 20.5V | 8.8A (8/20µs) | 181W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD5Z12T1GTVS DIODE 12VWM 25VC SOD523 |
14,812 | 0.28 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 1 | - | 12V (Max) | 14.1V | 25V | 9.6A (8/20µs) | 240W | No | General Purpose | 55pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
PESD5Z6.0,115TVS DIODE 6VWM 18VC SOD523 |
11,364 | 0.31 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 1 | - | 6V (Max) | 6.8V | 18V | 10A (8/20µs) | 180W | No | Ethernet | 78pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5Z7.0,115TVS DIODE 7VWM 19VC SOD523 |
12,384 | 0.31 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 7V (Max) | 7.5V | 19V | 10A (8/20µs) | 180W | No | Ethernet | 69pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5Z5.0,115TVS DIODE 5VWM 18VC SOD523 |
12,827 | 0.31 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6.2V | 18V | 10A (8/20µs) | 180W | No | Ethernet | 89pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5Z12,115TVS DIODE 12VWM 35VC SOD523 |
11,985 | 0.31 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 12V (Max) | 14.1V | 35V | 6A (8/20µs) | 200W | No | Ethernet | 35pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
PJSD05W_R1_00001SOD-323, TVS/ESD |
11,446 | 0.35 |
RFQ |
Datasheet |
SC-90, SOD-323F | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6V | 9.8V | 1A (8/20µs) | 350W | No | General Purpose | 300pF @ 1MHz | -50°C ~ 150°C (TJ) | Surface Mount |
|
DF3A6.8FU,LFTVS DIODE USM |
11,273 | 0.31 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | - | 6.4V | - | - | - | No | General Purpose | 45pF @ 1MHz | 125°C (TJ) | Surface Mount |
.jpg)
