| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | CapacitanceRange | AdjustmentType | Voltage-Rated | DielectricMaterial | Q@Freq | Size/Dimension | Height-Seated(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GQL1R800CAP TRIMMER 0.6-1.8PF 750V TH |
2,818 | 71.27 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.6 ~ 1.8pF | Side | 750 V | Quartz | 1500 @ 20MHz | 0.312 Dia (7.92mm) | 0.656 (16.66mm) | -55°C ~ 150°C | Through Hole |
|

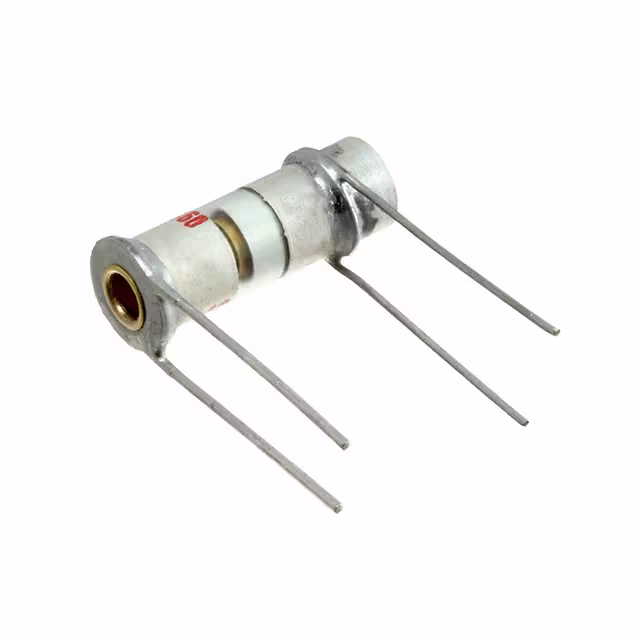

PC51H160CAP TRIMMER QPL PISTONCAP |
3,037 | 79.85 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | - | - | - | Glass | 800 @ 20MHz | - | - | -55°C ~ 125°C | - |
|
PC50J5R5CAP TRIMMER QPL PISTONCAP |
2,665 | 79.85 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | - | - | - | Glass | 1000 @ 20MHz | - | - | -55°C ~ 125°C | - |
|
|

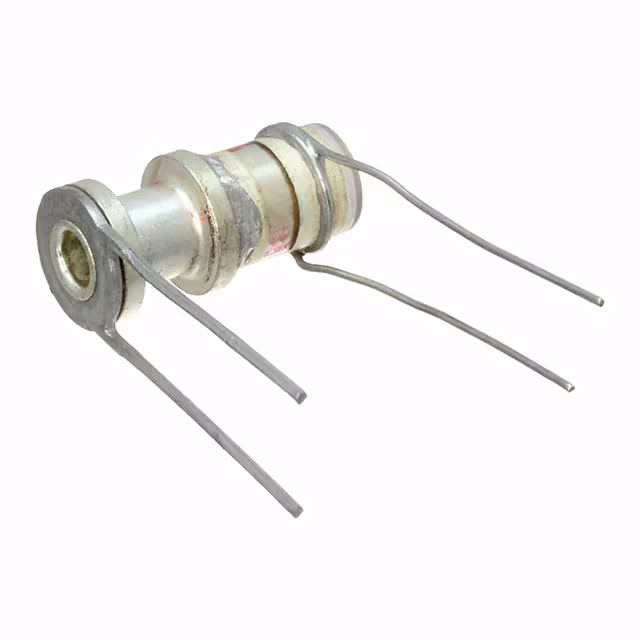

PC52J5R5CAP TRIMMER 0.8-5.5PF 750V TH |
2,559 | 79.85 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 5.5pF | Side | 750 V | Glass | 1000 @ 20MHz | 0.312 Dia (7.92mm) | 0.656 (16.66mm) | -55°C ~ 125°C | Through Hole |
|
PC52H230CAP TRIMMER QPL PISTONCAP |
2,845 | 79.85 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | - | - | - | Glass | 700 @ 20MHz | - | - | -55°C ~ 125°C | - |
|

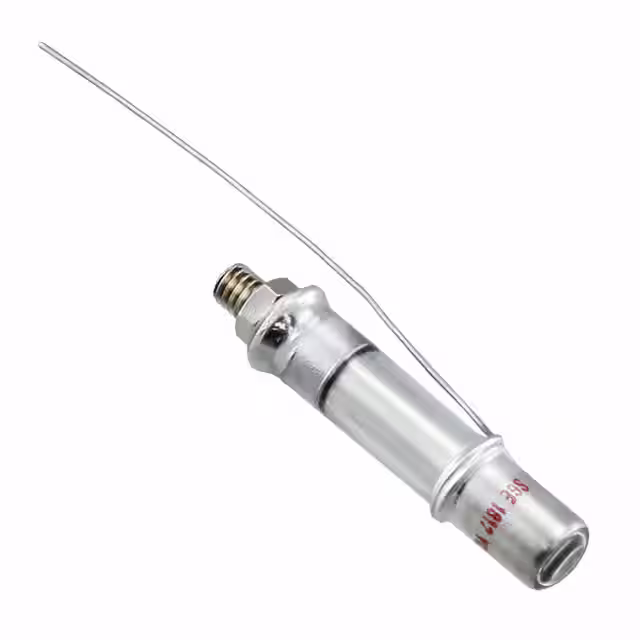

JFD-VCJ1616MCAP TRIM 0.5-5PF 2500V PNL MNT |
3,667 | 89.74 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.5 ~ 5pF | - | 2500 V | - | 2000 @ 1MHz | 0.375 Dia (9.52mm) | 0.656 (16.66mm) | -55°C ~ 200°C | Panel Mount |
|

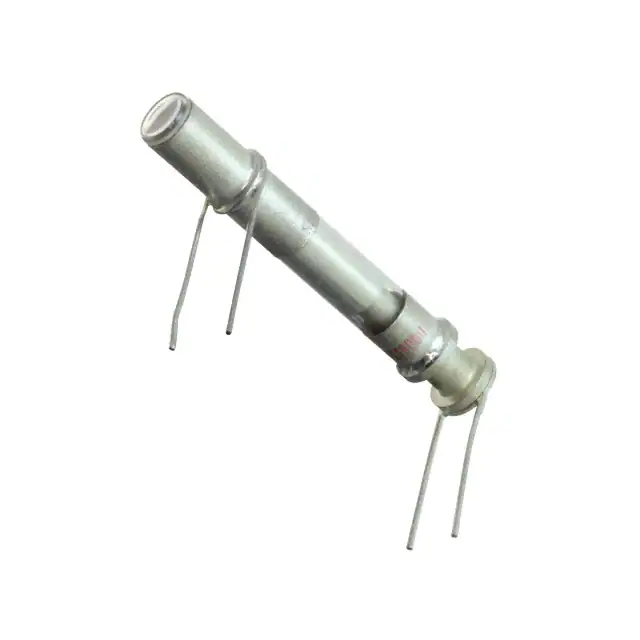

GQL16000CAP TRIMMER 0.8-16PF 1250V TH |
3,772 | 93.32 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 16pF | Side | 1250 V | Quartz | 1500 @ 20MHz | 0.312 Dia (7.92mm) | 1.953 (49.61mm) | -55°C ~ 150°C | Through Hole |
|
SGNMNC1103CAP TRIM 1-10PF 3000V CHAS MNT |
2,621 | 121.10 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1 ~ 10pF | - | 3000 V | Ceramic | 1700 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
SGNMNC1103ECAP TRIM 1-10PF 3000V CHAS MNT |
2,006 | 133.20 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1 ~ 10pF | - | 3000 V | Ceramic | 1700 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1152CAP TRIM 1-15PF 2000V CHAS MNT |
2,473 | 139.86 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1 ~ 15pF | - | 2000 V | Ceramic | 1500 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1054CAP TRIM 0.5-5PF 4000V CHAS MNT |
3,369 | 146.23 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 0.5 ~ 5pF | - | 4000 V | Ceramic | 2000 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1156CAP TRIM 1.5-15PF 6000V CHAS MNT |
2,628 | 146.86 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1.5 ~ 15pF | - | 6000 V | Ceramic | 1500 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1056CAP TRIM 0.5-5PF 6000V CHAS MNT |
2,322 | 153.54 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 0.5 ~ 5pF | - | 6000 V | Ceramic | 2000 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1054ECAP TRIM 0.5-5PF 4000V CHAS MNT |
2,020 | 160.85 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 0.5 ~ 5pF | - | 4000 V | Ceramic | 2000 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1059CAP TRIM 0.5-5PF 8750V CHAS MNT |
3,796 | 161.21 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 0.5 ~ 5pF | - | 8750 V | Ceramic | 2000 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1156ECAP TRIM 1.5-15PF 6000V CHAS MNT |
2,859 | 161.54 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1.5 ~ 15pF | - | 6000 V | Ceramic | 1500 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1056ECAP TRIM 0.5-5PF 6000V CHAS MNT |
2,167 | 168.89 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 0.5 ~ 5pF | - | 6000 V | Ceramic | 2000 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1059ECAP TRIM 0.5-5PF 8750V CHAS MNT |
2,389 | 177.34 |
RFQ |
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 0.5 ~ 5pF | - | 8750 V | Ceramic | 2000 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
SGNMNC2106KCAP TRIM 1-10PF 6000V CHAS MNT |
3,499 | 307.30 |
RFQ |
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 1 ~ 10pF | - | 6000 V | Ceramic | 3000 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
SGNMNC2106EKCAP TRIM 1-10PF 6000V CHAS MNT |
3,661 | 307.30 |
RFQ |
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 1 ~ 10pF | - | 6000 V | Ceramic | 3000 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
