| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

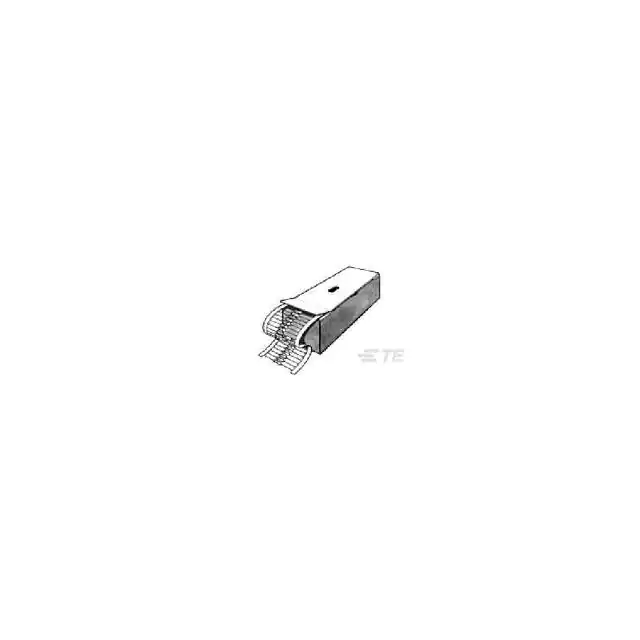

1-2176085-1RES 470 OHM 5% 9W AXIAL |
9,756 | 1.30 |
RFQ |
Datasheet |
Axial | Box | EP, Neohm | Active | 470 Ohms | ±5% | 9W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±300ppm/°C | -55°C ~ 155°C | Axial | 0.335 Dia x 1.575 L (8.50mm x 40.00mm) | - |
|
43F56RERES 56 OHM 1% 3W AXIAL |
7,599 | 1.31 |
RFQ |
Datasheet |
Axial | Bulk | Ohmicone® 40 | Active | 56 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220 Dia x 0.594 L (5.60mm x 15.10mm) | - |
|
|
43F18RERES 18 OHM 1% 3W AXIAL |
8,727 | 1.31 |
RFQ |
Datasheet |
Axial | Bulk | Ohmicone® 40 | Active | 18 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220 Dia x 0.594 L (5.60mm x 15.10mm) | - |
|
1-1879642-8RES 200K OHM 0.1% 1/4W AXIAL |
5,841 | 1.36 |
RFQ |
Datasheet |
Axial | Box | Holco, Holsworthy | Active | 200 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | Pulse Withstanding | ±10ppm/°C | -55°C ~ 155°C | Axial | 0.098 Dia x 0.283 L (2.50mm x 7.20mm) | - |
|

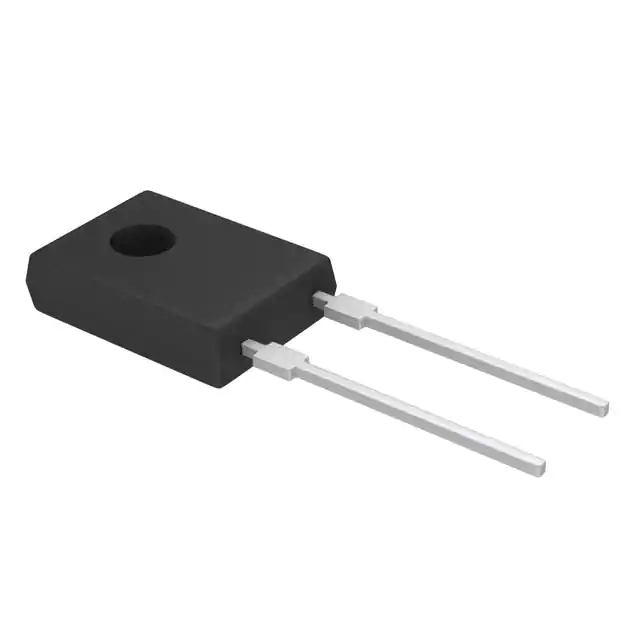

TNP10SA5R00FERES 5 OHM 1% 10W TO126 |
880 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 5 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
TNP10SC560RFERES 560 OHM 1% 10W TO126 |
540 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 560 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
TNP10SC200RFERES 200 OHM 1% 10W TO126 |
460 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 200 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
TNP10SA7R50FERES 7.5 OHM 1% 10W TO126 |
420 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 7.5 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
TNP10SC47R0FERES 47 OHM 1% 10W TO126 |
420 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 47 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
TNP10SHR150JERES 0.15 OHM 5% 10W TO126 |
420 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 150 mOhms | ±5% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±250ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
TNP10SHR250JERES 0.25 OHM 5% 10W TO126 |
420 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 250 mOhms | ±5% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±250ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
TNP10SC27R0FERES 27 OHM 1% 10W TO126 |
360 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 27 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
TNP10SA3R00FERES 3 OHM 1% 10W TO126 |
300 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 3 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
TNP10SC25R0FERES 25 OHM 1% 10W TO126 |
300 | 1.38 |
RFQ |
Datasheet |
TO-126-2 | Tube | TNP10 | Obsolete | 25 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335 L x 0.122 W (8.50mm x 3.10mm) | 0.598 (15.19mm) |
|
|
45F3R6RES 3.6 OHM 1% 5W AXIAL |
8,023 | 1.40 |
RFQ |
Datasheet |
Axial | Bulk | 40 | Active | 3.6 Ohms | ±1% | 5W | Wirewound | - | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.343 Dia x 0.937 L (8.70mm x 23.80mm) | - |
|
|
TA305PA47K0JERES 47K OHM 5% 5W POWERCHIP |
7,594 | 1.40 |
RFQ |
Datasheet |
Radial | Bulk | TA | Active | 47 kOhms | ±5% | 5W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500 L x 0.100 W (12.70mm x 2.54mm) | 1.067 (27.10mm) |
|
|
TA305PA82K0JERES 82K OHM 5% 5W POWERCHIP |
8,903 | 1.41 |
RFQ |
Datasheet |
Radial | Bulk | TA | Active | 82 kOhms | ±5% | 5W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500 L x 0.100 W (12.70mm x 2.54mm) | 1.067 (27.10mm) |
|
|
TA305PA33K0JERES 33K OHM 5% 5W POWERCHIP |
6,730 | 1.41 |
RFQ |
Datasheet |
Radial | Bulk | TA | Active | 33 kOhms | ±5% | 5W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500 L x 0.100 W (12.70mm x 2.54mm) | 1.067 (27.10mm) |
|
|
SM102033903FERES 390K OHM 1% 1W RADIAL |
6,944 | 1.47 |
RFQ |
Datasheet |
Radial | Bulk | Slim-Mox | Active | 390 kOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.580 L x 0.100 W (14.73mm x 2.54mm) | 0.340 (8.64mm) |
|
|
SM103022505JERES 25M OHM 10% 2W RADIAL |
9,528 | 1.49 |
RFQ |
Datasheet |
Radial | Bulk | Slim-Mox | Active | 25 MOhms | ±10% | 2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 180°C | Radial | 0.750 L x 0.070 W (19.05mm x 1.78mm) | 0.250 (6.35mm) |
