| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD275JERES 2.7M OHM 5% 1/4W AXIAL |
2,300 | 0.10 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OD | Obsolete | 2.7 MOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098 Dia x 0.276 L (2.50mm x 7.00mm) | - |
|
|
OF754JERES 750K OHM 5% 1/2W AXIAL |
14,211 | 0.10 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OF | Active | 750 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
|
|
OD364JERES 360K OHM 5% 1/4W AXIAL |
14,579 | 0.10 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OD | Active | 360 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098 Dia x 0.276 L (2.50mm x 7.00mm) | - |
|
|
OF913JERES 913 OHM 5% 1/2W AXIAL |
10,265 | 0.10 |
RFQ |
Datasheet |
Axial | Bulk | Little Demon® OF | Active | 913 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
|

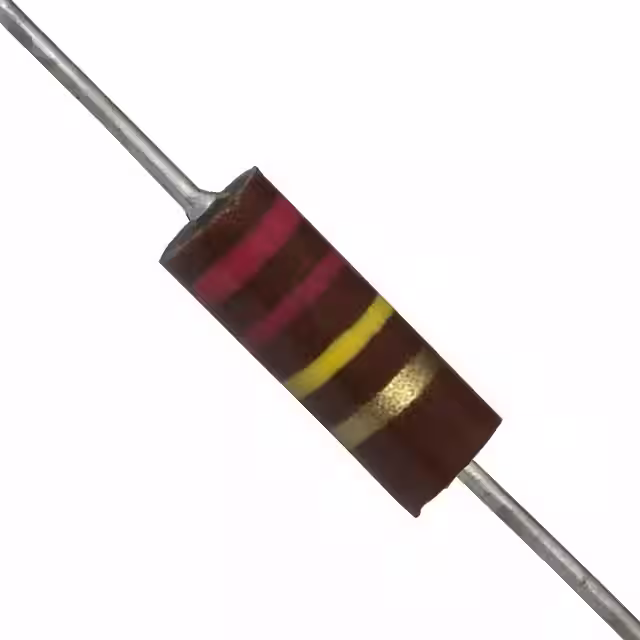

OF224JERES 220K OHM 5% 1/2W AXIAL |
1,400 | 0.10 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OF | Obsolete | 220 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
|

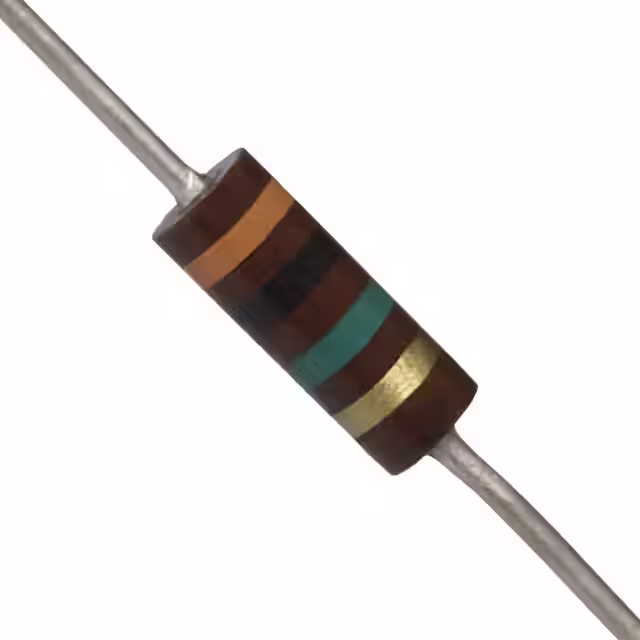

OD305JERES 3M OHM 5% 1/4W AXIAL |
12,589 | 0.10 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OD | Active | 3 MOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098 Dia x 0.276 L (2.50mm x 7.00mm) | - |
|

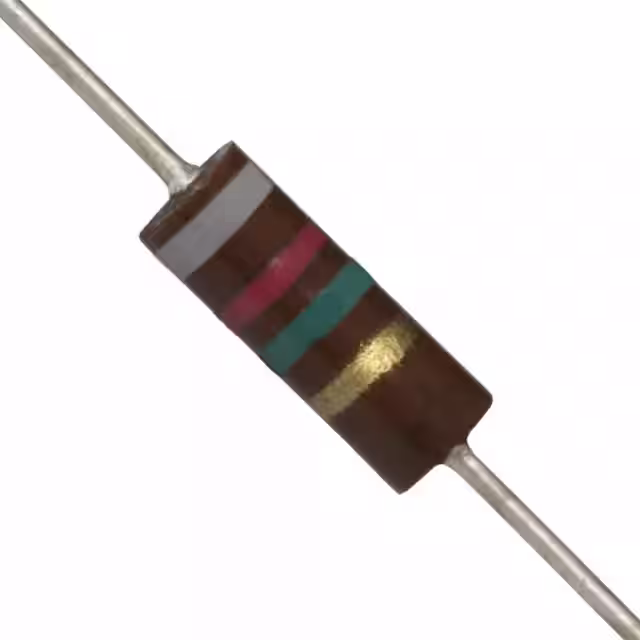

OF825JERES 8.2M OHM 5% 1/2W AXIAL |
2,700 | 0.11 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OF | Obsolete | 8.2 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
|
TUW5J82RERES 82 OHM 5% 5W AXIAL |
12,149 | 0.11 |
RFQ |
Datasheet |
Axial | Bulk | TUW | Active | 82 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±350ppm/°C | 275°C | Axial | 0.866 L x 0.394 W (22.00mm x 10.00mm) | 0.394 (10.00mm) |
|
|
OF335JERES 3.3M OHM 5% 1/2W AXIAL |
1,500 | 0.11 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OF | Obsolete | 3.3 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
|

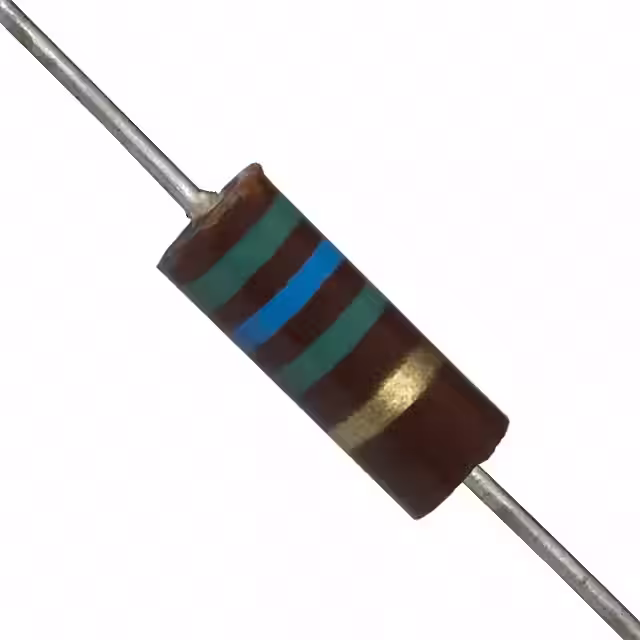

OF565JERES 5.6M OHM 5% 1/2W AXIAL |
1,300 | 0.11 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OF | Obsolete | 5.6 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
|
|
OF245JERES 2.4M OHM 5% 1/2W AXIAL |
12,978 | 0.11 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OF | Active | 2.4 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
|
1-1624235-5RES 0.05 OHM 5% 3W AXIAL |
13,443 | 0.12 |
RFQ |
Datasheet |
Axial | Box | ES, CGS | Active | 50 mOhms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.217 Dia x 0.512 L (5.50mm x 13.00mm) | - |
|
QW4D7RES 4.7 OHM 5% 1/4W AXIAL |
13,282 | 0.15 |
RFQ |
Datasheet |
Axial | Bag | - | Active | 4.7 Ohms | ±5% | 0.25W, 1/4W | Metal Oxide Film | Flame Proof, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.091 Dia x 0.250 L (2.30mm x 6.35mm) | - |
|

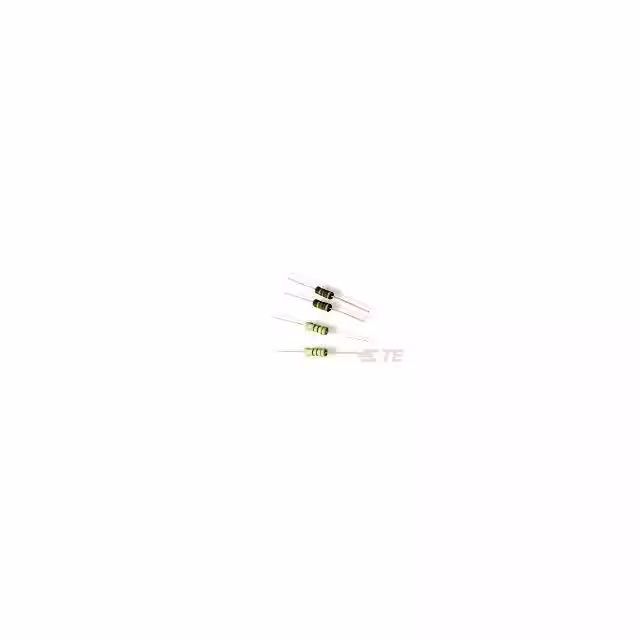

1-1625875-6RES 1 OHM 5% 1/4W AXIAL |
11,081 | 0.15 |
RFQ |
Datasheet |
Axial | Box | CBT, Neohm | Active | 1 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094 Dia x 0.248 L (2.40mm x 6.30mm) | - |
|
|
1-1625875-0RES 15K OHM 5% 1/4W AXIAL |
10,559 | 0.17 |
RFQ |
Datasheet |
Axial | Box | CBT, Neohm | Active | 15 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094 Dia x 0.248 L (2.40mm x 6.30mm) | - |
|
TWW5J390ERES 390 OHM 5% 5W RADIAL |
14,555 | 0.18 |
RFQ |
Datasheet |
Radial | Bulk | TWW | Active | 390 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial Lead | 0.492 L x 0.354 W (12.50mm x 9.00mm) | 1.024 (26.00mm) |
|
|
TUW15J6R8ERES 6.8 OHM 5% 15W AXIAL |
11,096 | 0.22 |
RFQ |
Datasheet |
Axial | Bulk | TUW | Active | 6.8 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | 275°C | Axial | 1.929 L x 0.492 W (49.00mm x 12.50mm) | 0.492 (12.50mm) |
|
|
TUM15J5K6ERES 5.6K OHM 5% 15W AXIAL |
11,817 | 0.22 |
RFQ |
Datasheet |
Axial | Bulk | TUM | Active | 5.6 kOhms | ±5% | 15W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | - | Axial | 1.929 L x 0.492 W (49.00mm x 12.50mm) | 0.492 (12.50mm) |
|

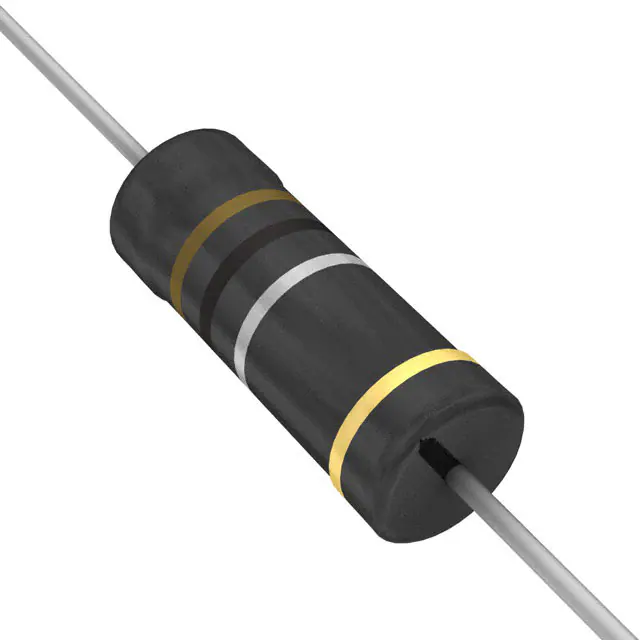

53JR10ERES 0.1 OHM 5% 3W AXIAL |
10,796 | 0.25 |
RFQ |
Datasheet |
Axial | Bulk | 50 | Active | 100 mOhms | ±5% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220 Dia x 0.551 L (5.60mm x 14.00mm) | - |
|

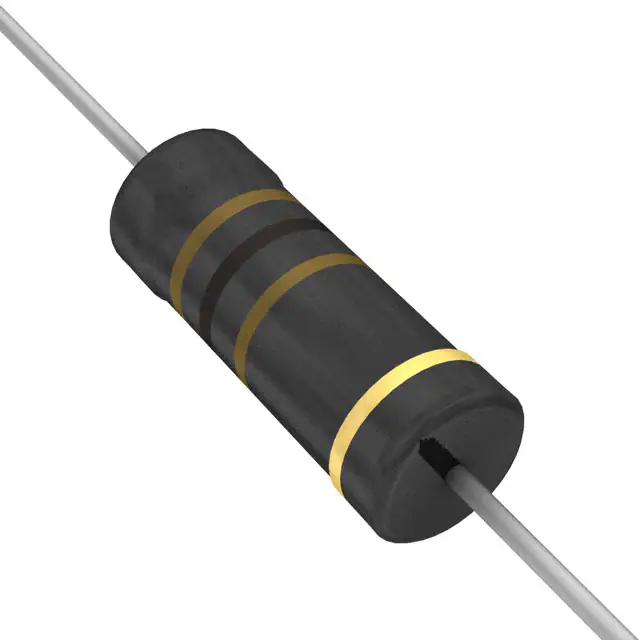

53J100ERES 100 OHM 5% 3W AXIAL |
13,531 | 0.25 |
RFQ |
Datasheet |
Axial | Bulk | 50 | Active | 100 Ohms | ±5% | 3W | Wirewound | - | ±30ppm/°C | - | Axial | 0.220 Dia x 0.551 L (5.60mm x 14.00mm) | - |
