| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAR72410-HRRELAY REED SPST-NO 3A 24V |
2,231 | 50.83 |
RFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
3351-4275-126RELAY REED HV SPST-NC 50W 3A 12V |
1,560 | 51.51 |
RFQ |
Datasheet |
Bulk | 3350 | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C |
|
HE12-1A83-02RELAY REED SPST 3A 12V |
4,107 | 52.52 |
RFQ |
Datasheet |
Bulk | HE | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|

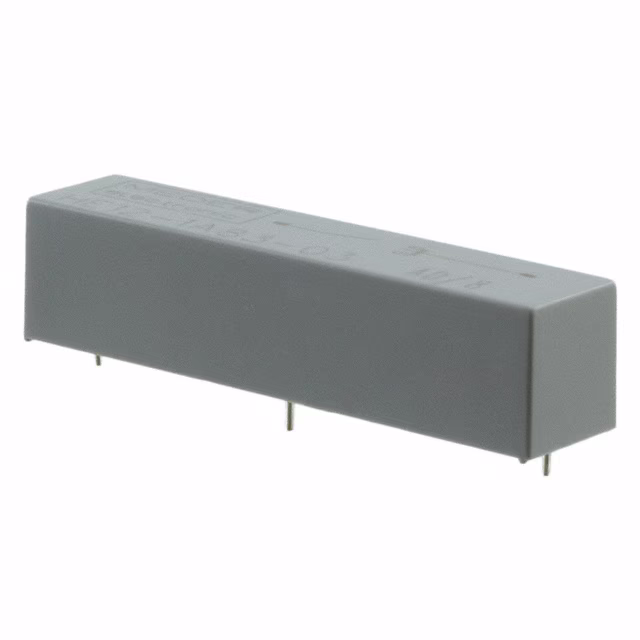

HE12-1A83-03RELAY REED SPST 3A 12V |
2,859 | 52.52 |
RFQ |
Datasheet |
Tube | HE | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|
TAR212SMRELAY REED SPST-NO 500MA 12V |
4,972 | 53.32 |
RFQ |
Datasheet |
Bulk | 2 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 300VAC, 300VDC - Max | 60 mA | Non Latching | - | PC Pin | - | 8 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 100°C |
|

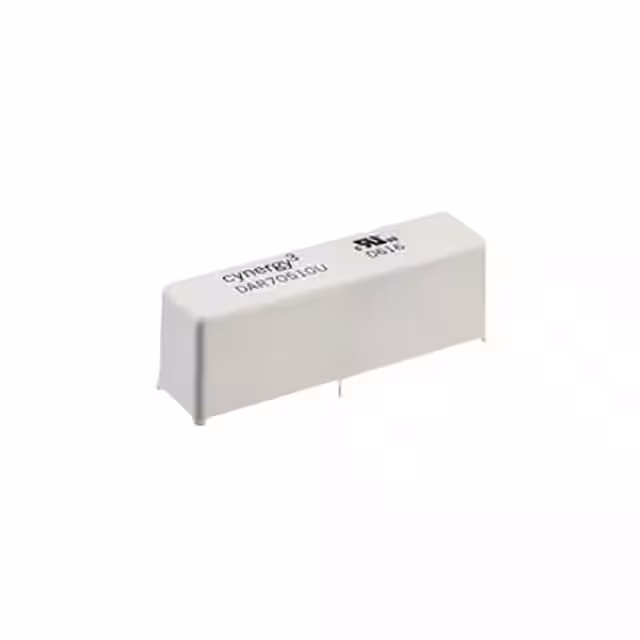

DAR72410URELAY REED SPST-NO 3A 24V |
3,282 | 53.37 |
RFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DBR70505F-HRRELAY REED 5KV 5V SPST-NC |
4,496 | 53.45 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR72405F-HRRELAY REED 5KV 24V SPST-NC |
3,635 | 53.45 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR71205F-HRRELAY REED 5KV 12V SPST-NC |
3,687 | 53.45 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR70505SURELAY REED SPST-NC 5KV 5V |
2,529 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR72405PURELAY REED N/C 5KV 24V |
4,585 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR72405TURELAY REED N/C 5KV 24V |
2,339 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR72405FURELAY REED N/C 5KV 24V |
4,940 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR70505PURELAY REED SPST-NC 5KV 5V |
4,685 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR71205FURELAY REED SPST-NC 5KV 12V |
3,605 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR72405SURELAY REED N/C 5KV 24V |
2,970 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR71205SURELAY REED SPST-NC 5KV 12V |
3,035 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR70505TURELAY REED SPST-NC 5KV 5V |
1,266 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR71205PURELAY REED SPST-NC 5KV 12V |
4,227 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DBR70505FURELAY REED SPST-NC 5KV 5V |
4,338 | 53.52 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
