| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3570-1210-054RELAY REED DIP SPST .5A 5V W/DIO |
5,546 | 2.17 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 10 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.6 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
3570-1419-052RELAY REED SIP SPST 1A 5V W/EMI |
7,743 | 3.70 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|
DIP05-1A72-13LRELAY REED SPST 1A 5V |
7,076 | 4.05 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
DIP12-1A72-12LRELAY REED SPST 1A 12V |
7,152 | 4.19 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
8L02-24-01RELAY REED DPST 500MA 24V |
9,535 | 5.64 |
RFQ |
Datasheet |
Tube | 8L | Not For New Designs | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
3563-1231-051RELAY REED DIP SPDT .4A 5V |
6,216 | 6.02 |
RFQ |
Datasheet |
Tube | 3563 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
|
3563-1231-124RELAY REED DIP SPDT .4A 12V W/DI |
7,475 | 6.84 |
RFQ |
Datasheet |
Tube | 3563 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
|
DIP12-1C90-51LRELAY REED SPDT 500MA 12V |
8,728 | 8.87 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
DIP24-1C90-51LRELAY REED SPDT 500MA 24V |
6,217 | 9.62 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
BFH-1C-12EREED RELAY SPDT .5A 12V |
2,462 | 12.59 |
RFQ |
Datasheet |
Tube | BFH | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
S2-05PRELAY REED SPST 700MA 5V |
4,327 | 14.13 |
RFQ |
Datasheet |
Bulk | S2 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
DIP05-1C90-51DRELAY REED SPDT 250MA 5V |
1,249 | 14.34 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
|
S2-05ERELAY REED SPST 1A 5V |
4,266 | 19.20 |
RFQ |
Datasheet |
Bulk | S2 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
7101-12-1011RELAY REED SPST 500MA 12V |
4,585 | 21.27 |
RFQ |
Datasheet |
Bulk | 7000 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C |
|

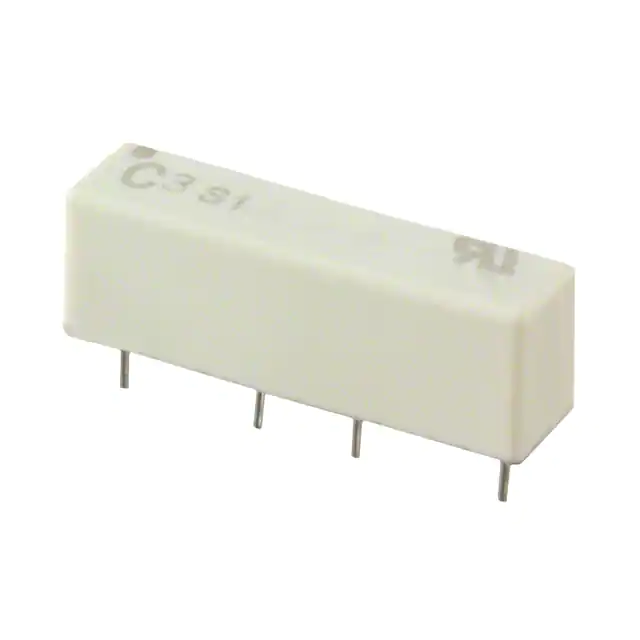

S1-0504RELAY REED 4KV SPST 5V SIP |
1,124 | 21.37 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | - | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
S1-1204MRELAY REED 4KV SPST 12V SIP SCRE |
2,869 | 22.25 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-2404MRELAY REED 4KV SPST 24V SIP SCRE |
1,971 | 22.25 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-2404DRELAY REED 4KV SPST 24V SIP W/DI |
4,248 | 22.25 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-24-2ADRELAY REED TWIN N/O 1.5KV 24V |
2,326 | 23.33 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C |
|
|
S1-24-2ADMRELAY REED TWIN N/O 1.5KV 24V |
1,889 | 24.48 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C |
