Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
G502 TRANSFORMER 0.50MH 1:1:1 PULSE Tamura	7,404	6.60	- + RFQ	Datasheet	Tube	G5	Active	Isolation and Data Interface (Encapsulated)	500µH	8.5VµS	1:1:1 Ter	Through Hole	0.350 L x 0.500 W (8.90mm x 12.70mm)	0.250 (6.35mm)
G504 TRANSFORMER 0.05MH 1:1:1 PULSE Tamura	8,471	6.60	- + RFQ	Datasheet	Tube	G5	Active	Isolation and Data Interface (Encapsulated)	50µH	5.2VµS	1:1:1 Ter	Through Hole	0.350 L x 0.500 W (8.90mm x 12.70mm)	0.250 (6.35mm)
G513 TRANSFORMER 1.2MH 1:1:1 PULSE Tamura	5,142	6.60	- + RFQ	Datasheet	Tube	G5	Active	Isolation and Data Interface (Encapsulated)	1.2mH	10VµS	1:1:1 Ter	Through Hole	0.350 L x 0.500 W (8.90mm x 12.70mm)	0.250 (6.35mm)
G507 TRANSFORMER 0.50MH 2:1:1 PULSE Tamura	5,297	6.60	- + RFQ	Datasheet	Tube	G5	Active	Isolation and Data Interface (Encapsulated)	500µH	8.5VµS	2:1:1 Ter	Through Hole	0.350 L x 0.500 W (8.90mm x 12.70mm)	0.250 (6.35mm)
H7018FNL MODULE 10GBASE-T 1.5KVRMS SMD Pulse Electronics Network	6,062	6.61	- + RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	120µH	-	1:1	Surface Mount	0.539 L x 0.591 W (13.70mm x 15.00mm)	0.230 (5.85mm)
HDX8004NLT MDL SIN HDBT 1:1 POEP SM TR Pulse Electronics Network	9,418	6.62	- + RFQ		Tape & Reel (TR)	-	Active	HDBase-T	120µH	-	1:1	Surface Mount	0.540 L x 0.480 W (13.72mm x 12.20mm)	0.225 (5.72mm)
HD8006FNLT MDL SIN HDBT 1:1 POEPP SMT TR Pulse Electronics Network	8,903	6.62	- + RFQ		Tape & Reel (TR)	-	Active	HDBase-T	120µH	-	1:1	Surface Mount	0.698 L x 0.625 W (17.73mm x 15.88mm)	0.310 (7.87mm)
760301104 XFRMR GATE DRIVE 2:1:1 SMD Würth Elektronik	6,262	6.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-GDT	Active	Gate Drive	330µH	28.6VµS	2:1:1	Surface Mount	0.276 L x 0.335 W (7.00mm x 8.50mm)	0.236 (6.00mm)

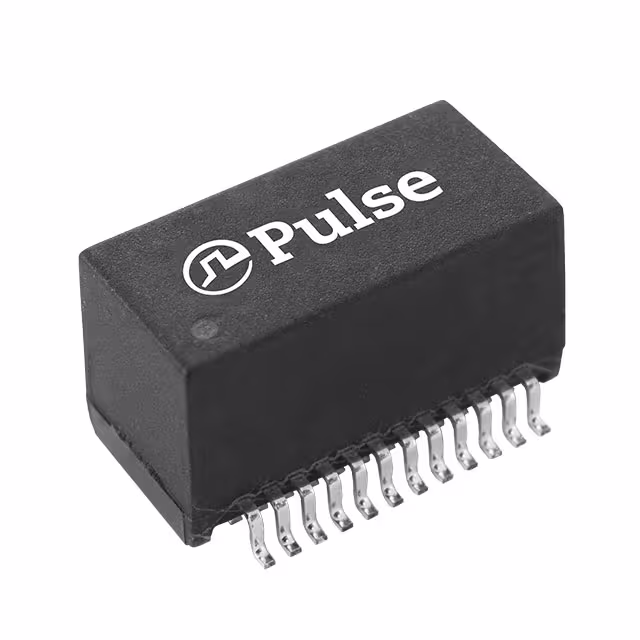

HU4108NL MODULE MAGNETIC SNGL 2.5GB SMT Pulse Electronics Network	9,602	6.66	- + RFQ	Datasheet	Tube	-	Active	-	-	-	-	Surface Mount	0.600 L x 0.300 W (15.24mm x 7.62mm)	0.340 (8.63mm)

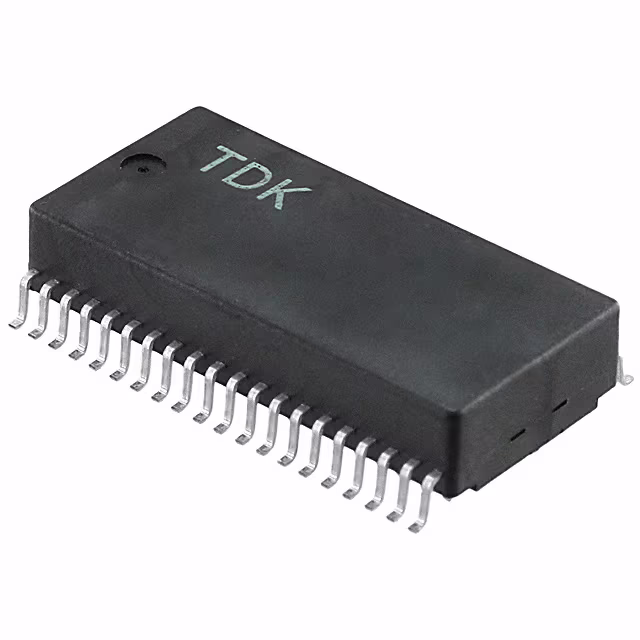

TLA-6T406-T TRANSFORMER LAN 10/100 TX TDK Corporation	2,527	6.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TLA	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.020 L x 0.480 W (25.90mm x 12.20mm)	0.228 (5.80mm)
GH5608RSY LF MDL 1G DIP QUAD PORTS POE+ 30W Pulse Electronics Network	9,223	6.71	- + RFQ		Tube	-	Active	-	-	-	-	-	-	-

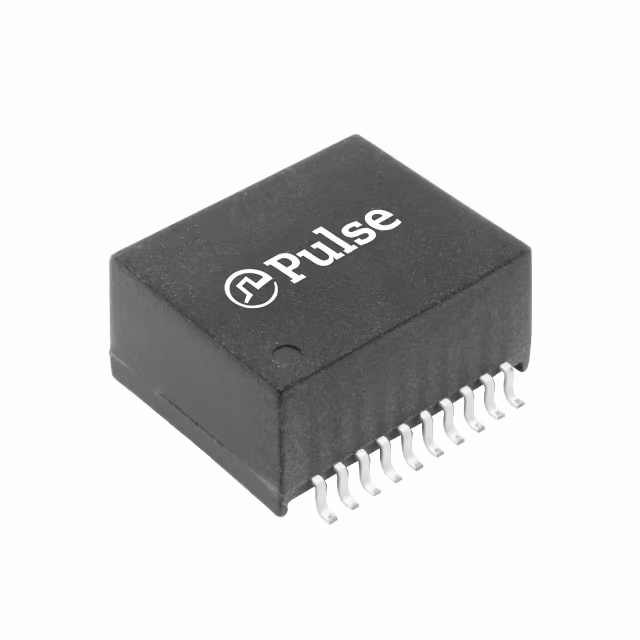

HM1331NLT MDL,SIN,100D,1:1,SMT Pulse Electronics Network	7,310	6.92	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.600 W (12.70mm x 15.24mm)	0.300 (7.62mm)
HDX8005NLT MDL SIN HDBT 1:1 POEP SM TR Pulse Electronics Network	8,881	6.94	- + RFQ		Tape & Reel (TR)	-	Active	HDBase-T	120µH	-	1:1	Surface Mount	0.540 L x 0.480 W (13.72mm x 12.20mm)	0.225 (5.72mm)
ALAN110001-4J41KT 10/100/1000BASE-T LAN XFMR POE Abracon LLC	7,476	7.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
ALAN110001-4J11KT 10/100/1000BASE-T LAN XFMR POE Abracon LLC	5,737	7.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
ALAN110001-4J61KT 10/100/1000BASE-T LAN XFMR POE Abracon LLC	6,259	7.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
77201C PULSE XFMR 1:1 1MH Murata Power Solutions Inc.	2,959	9.66	- + RFQ	Datasheet	Tube	-	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	120VµS	1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)
HXU4009NL MDL SIN 2.5GPP 1:1 SMT TU Pulse Electronics Network	9,083	6.97	- + RFQ		Tube	-	Active	-	-	-	-	-	-	-

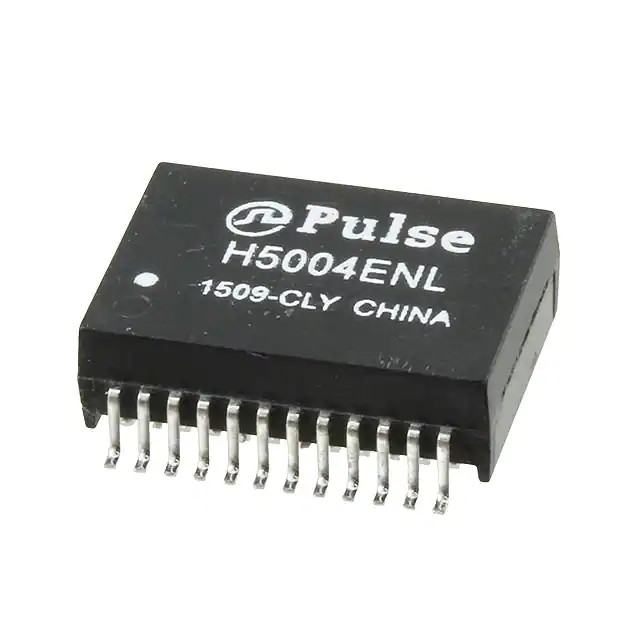

H5004ENLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	6,637	6.97	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689 L x 0.480 W (17.50mm x 12.20mm)	0.225 (5.72mm)
HX6188NL MDL SIN 1GPP 1:1 4PUPOE TU Pulse Electronics Network	5,940	7.02	- + RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	0.715 L x 0.511 W (18.16mm x 12.98mm)	0.400 (10.16mm)
