Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ISRF-0249-D101 ISRF PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	9,373	4.75	- + RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	1.2mH	250VµS	1:1:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)

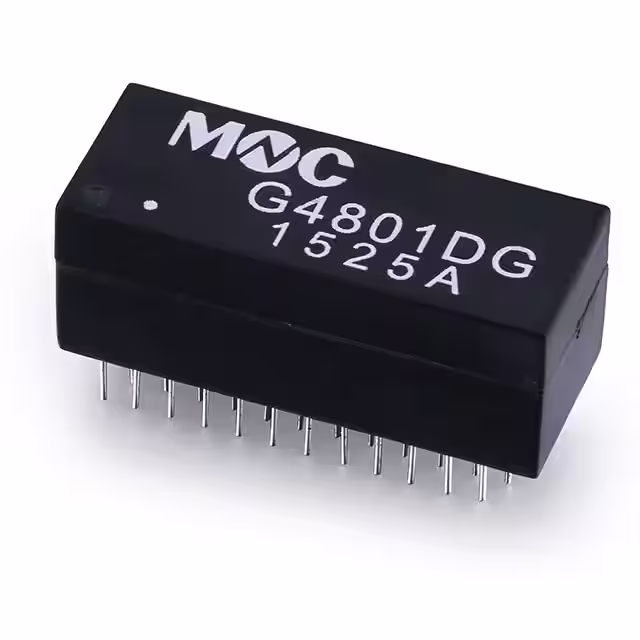

G4801DG DUAL LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	13,780	0.00	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	1.122 L x 0.472 W (28.59mm x 12.00mm)	0.472 (12.00mm)
XFBMC25-2SR-A XFMR BATT MGMT AEC-Q200 XFMRS	10,959	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.620 L x 0.475 W (15.70mm x 12.06mm)	0.360 (9.15mm)
XFBMC2101-2S-B XFMR BATT MGMT AEC-Q200 XFMRS	13,455	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.390 L x 0.330 W (9.90mm x 8.38mm)	0.266 (6.75mm)
XFBMC29B-BA09-A XFMR BATT MGMT AEC-Q200 XFMRS	14,398	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.197 (5.00mm)
XFBMC29NC-BA09-A XFMR BATT MGMT AEC-Q200 XFMRS	11,628	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.197 (5.00mm)
XFBMC29A-BA09-A XFMR BATT MGMT AEC-Q200 XFMRS	14,948	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:2CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.197 (5.00mm)
XFBMC25NC-2SR-A XFMR BATT MGMT AEC-Q200 XFMRS	14,853	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.502 L x 0.354 W (12.70mm x 9.00mm)	0.250 (6.35mm)
XFBMC29-DIP027-B XFMR BATT MGMT AEC-Q200 XFMRS	14,421	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)
XFBMC45NC-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	12,547	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)
XFBMC45-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	14,473	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)
XFBMC60-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	14,726	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)
XFBMC60NC-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	10,210	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670 L x 0.492 W (17.02mm x 12.50mm)	0.425 (10.80mm)
XFBMC29DNC-BA09-A XFMR BATT MGMT AEC-Q200 XFMRS	11,872	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.236 (6.00mm)
XFBMC29D-BA09-B XFMR BATT MGMT AEC-Q200 XFMRS	13,730	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768 L x 0.392 W (19.50mm x 9.96mm)	0.236 (6.00mm)
760301304 XFRMR GATE DRIVE SMD Würth Elektronik	5,738	7.85	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-GDT	Active	Gate Drive	1.08mH	120VµS	2.5:1:1	Surface Mount	0.413 L x 0.413 W (10.50mm x 10.50mm)	0.433 (11.00mm)
760301103 XFRMR GATE DRIVE 2.5:1:1 SMD Würth Elektronik	5,573	8.14	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-GDT	Active	Gate Drive	350µH	29.4VµS	2.5:1:1	Surface Mount	0.276 L x 0.335 W (7.00mm x 8.50mm)	0.236 (6.00mm)
T1212NLT XFRMR 1CT:1CT/1CT:2CT 1.20MH SMD Pulse Electronics Network	2,051	11.26	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	T1/E1 (Quad)	1.2mH	-	1CT:1CT, 1CT:2CT	Surface Mount	0.675 L x 0.456 W (17.15mm x 11.58mm)	0.340 (8.64mm)
749053012 TRANSFORMER LAN Würth Elektronik	1,636	11.28	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN	200µH	-	1:1	Surface Mount	0.550 L x 0.532 W (13.97mm x 13.50mm)	0.260 (6.60mm)

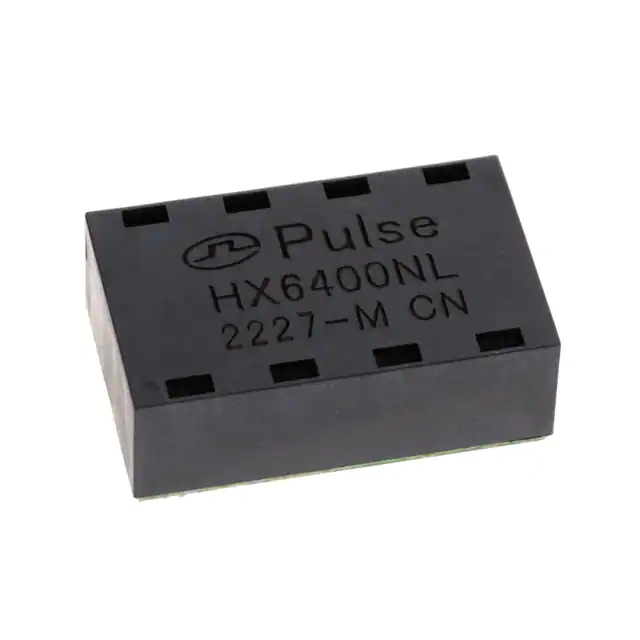

HX6400NL MODULE QUAD 1GPP 1:1 SMT TU Pulse Electronics Network	1,029	31.11	- + RFQ	Datasheet	Tray	HX6400NL	Active	LAN 1000 Base-T	150µH	-	1:1	Surface Mount	1.120 L x 0.680 W (28.45mm x 17.27mm)	0.440 (11.18mm)
