Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
LP-88-130 PWR XFMR SEMI-TORO 12VA TH Signal Transformer	2,488	13.40	- + RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 44V, Series 88V	Parallel 260mA, Series 130mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms
LP-120-100 PWR XFMR SEMI-TORO 12VA TH Signal Transformer	4,280	13.40	- + RFQ	Datasheet	Box	LP	Active	Semi-Toroidal	115V, 230V	Parallel 60V, Series 120V	Parallel 200mA, Series 100mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms
56-45-LPI PWR XFMR SEMI-TORO 2.5VA TH Signal Transformer	4,935	13.41	- + RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	18.30mm	4000Vrms

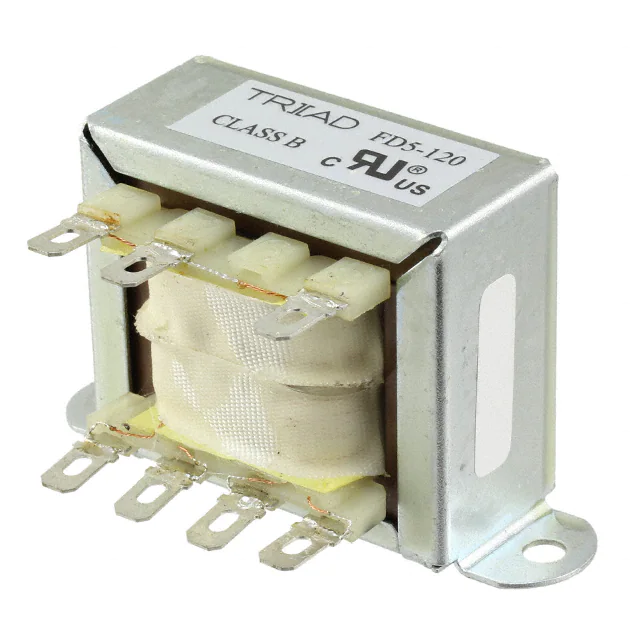

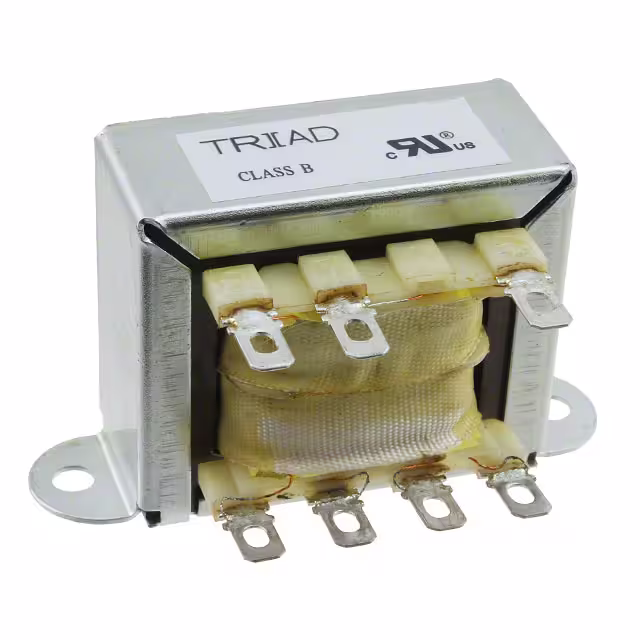

FD5-120 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,837	13.42	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	120V	100mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
FD5-10 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,381	13.42	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	10V	1.2A	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

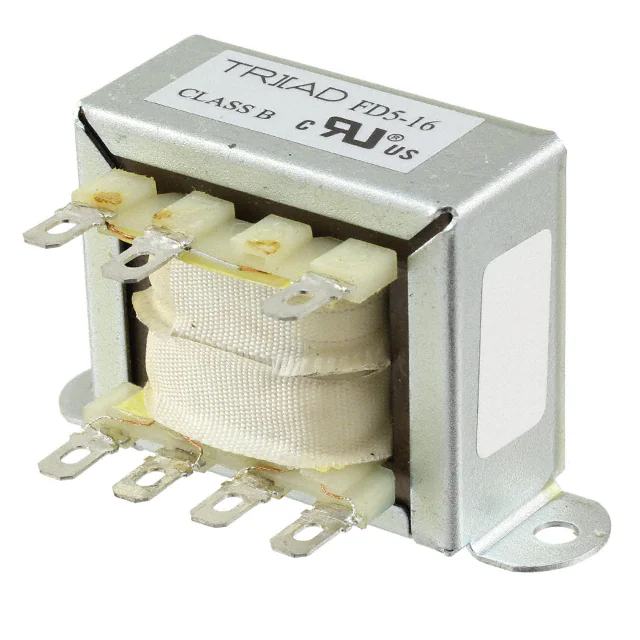

FD5-16 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,394	13.42	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	16V	800mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

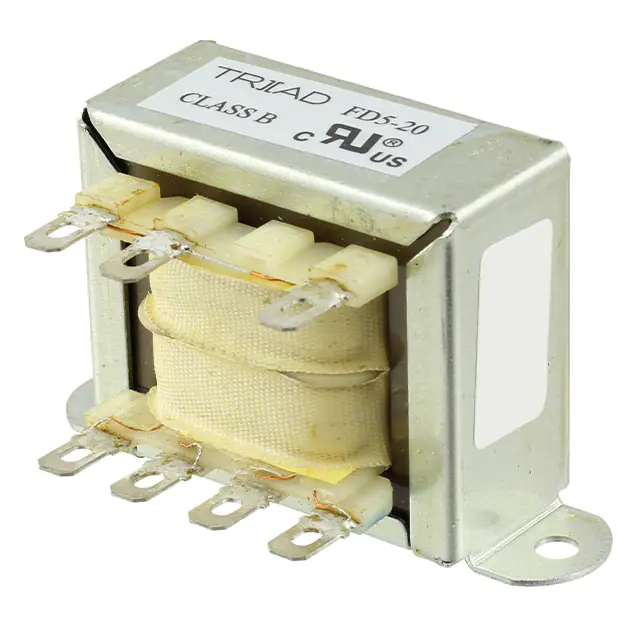

FD5-20 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,826	13.42	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	20V	600mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

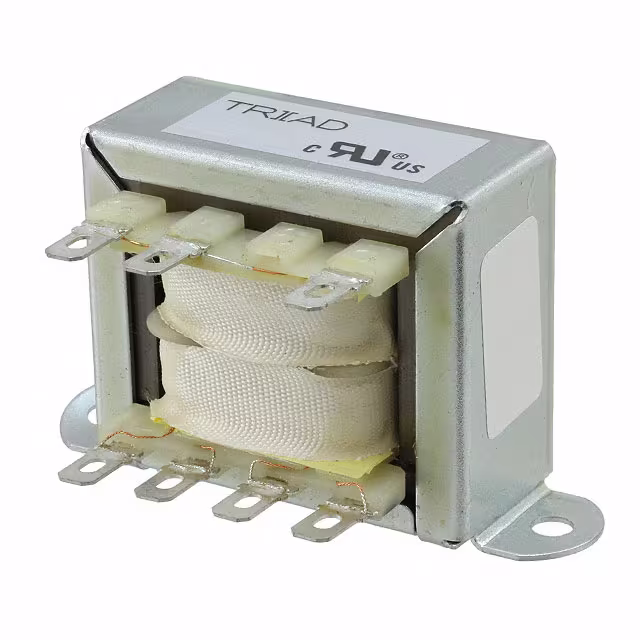

FD5-28 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,951	13.42	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	28V	420mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
FD5-36 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,274	13.42	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	36V	350mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
FD5-48 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	1,521	13.42	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	48V	250mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
FD5-56 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,783	13.42	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	56V	220mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
DPC-56-420 PWR XFMR LAMINATED 24VA TH Signal Transformer	1,350	13.43	- + RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 840mA, Series 420mA	Dual	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
ST-7-16 PWR XFMR LAMINATED 36VA TH Signal Transformer	2,404	13.45	- + RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 4.5A, Series 2.25A	Single	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
ST-7-120 PWR XFMR LAMINATED 36VA TH Signal Transformer	2,972	13.45	- + RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 600mA, Series 300mA	Single	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
ST-7-48 PWR XFMR LAMINATED 36VA TH Signal Transformer	2,646	13.45	- + RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 1.5A, Series 750mA	Single	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
ST-7-56 PWR XFMR LAMINATED 36VA TH Signal Transformer	3,317	13.45	- + RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 1.3A, Series 650mA	Single	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
20-125-LPI PWR XFMR SEMI-TORO 2.5VA TH Signal Transformer	3,644	13.48	- + RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 250mA, Series 125mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	18.30mm	4000Vrms
30-85-LPI PWR XFMR SEMI-TORO 2.5VA TH Signal Transformer	3,273	13.48	- + RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 170mA, Series 85mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	18.30mm	4000Vrms
34-75-LPI PWR XFMR SEMI-TORO 2.5VA TH Signal Transformer	4,432	13.48	- + RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 150mA, Series 75mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	18.30mm	4000Vrms
24-100-LPI PWR XFMR SEMI-TORO 2.5VA TH Signal Transformer	3,340	13.48	- + RFQ	Datasheet	Bulk	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	18.30mm	4000Vrms
