| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4N37300OPTOELECTRONIC DEVICE |
2,907 | 0.09 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5300Vrms | 100% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 100 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
CNY17F23SDTRANSISTOR OUTPUT OPTOCOUPLER |
2,387 | 0.10 |
RFQ |
Bulk | - | Obsolete | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 2µs, 3µs | 1µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 100 mA | 300mV | -55°C ~ 100°C | Surface Mount | |
|
TLP185(GB-TPR,SEX36 PB PHOTOCOUPLER SO6 ROHS TAP |
13,557 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
H11A817TRANSISTOR OUTPUT OPTOCOUPLER |
2,916 | 0.12 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 2.4µs, 2.4µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Through Hole |
.jpg)
|

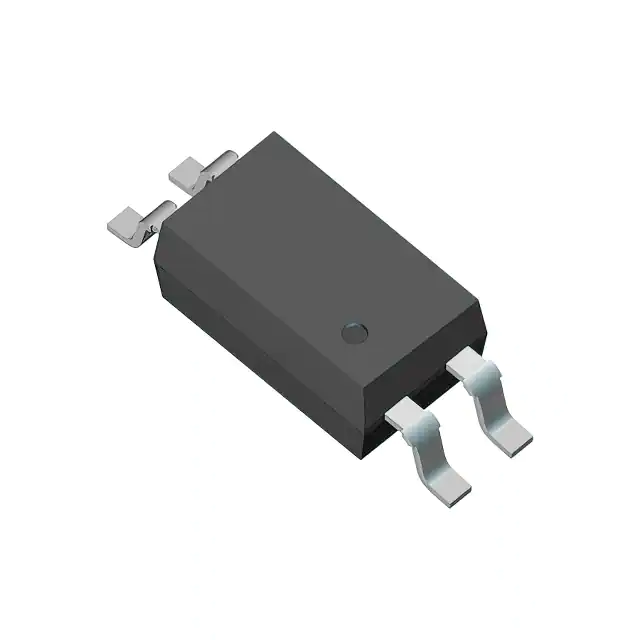

LTV-356T-AOPTOISOLATOR 3.75KV TRANS 4SOP |
14,946 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | LTV-356T | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
140817143100WL-OCPT OPTOCOUPLER PHOTOTRANSIS |
14,059 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WL-OCPT | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 4µs | DC | Transistor | 35V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
TLP385(D4GL-TL,ETRANSISTOR OPTOCOUPLER; 4-PIN SO |
10,457 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP385(D4BLLTL,ETRANSISTOR OPTOCOUPLER; 4-PIN SO |
10,108 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP385(GB-TPL,ETRANSISTOR OPTOCOUPLER; 4-PIN SO |
14,169 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP385(D4GR-TL,ETRANSISTOR OPTOCOUPLER; 4-PIN SO |
10,524 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
VOS615A-1X001TOPTOCOUPLER, PHOTOTRANSISTOR OUT |
10,111 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | VOS615A | Active | 1 | 3750Vrms | 40% @ 10mA | 80% @ 10mA | 5µs, 5µs | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
MOC8113300TRANSISTOR OUTPUT OPTOCOUPLER |
2,740 | 0.18 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5300Vrms | 100% @ 10mA | - | 4.2µs, 23µs | 3µs, 14µs | DC | Transistor | 70V | - | 1.15V | 90 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP2301(TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
13,983 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 1mA | 600% @ 1mA | - | - | DC | Transistor | 40V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
HCPL-181-00BEOPTOISO 3.75KV TRANS 4MINIFLAT |
14,584 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
VOL618ATOPTOCOUPLER, PHOTOTRANSISTOR OUT |
10,969 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | VOL618A | Active | 1 | 5000Vrms | 50% @ 1mA | 600% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
ACPL-217-50CEOPTOISOLATOR 3.75KV TRANS 4SOIC |
11,095 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
4N37SR2VMOPTOISO 4.17KV TRANS W/BASE 6SMD |
12,569 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 100% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 300mV | -40°C ~ 100°C | Surface Mount |
|
CNY172SR2VMTRANSISTOR OUTPUT OPTOCOUPLER, 1 |
14,558 | 0.24 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 4170Vrms | 63% @ 10mA | 125% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
FODM1009R2VLSOP4 TR T&R |
10,086 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 5.7µs, 8.5µs | DC | Transistor | 70V | 50mA | 1.4V | 50 mA | 300mV | -40°C ~ 110°C | Surface Mount |
|
|
CNY174SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
11,754 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 160% @ 10mA | 320% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
