| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C274ACF4800WA0JCAP FILM 8UF 5% 470VAC RADIAL |
6,391 | 9.42 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378 Dia (35.00mm) | 2.382 (60.50mm) | Wire Leads | - | Motor Run; Motor Start | - |
|
R75IR51004040JCAP FILM 10UF 5% 250VDC RADIAL |
9,116 | 9.80 |
RFQ |
Datasheet |
Radial | Tray | R75 | Active | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.461 (37.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
226MWR100KCAP FILM 22UF 10% 100VDC AXIAL |
6,408 | 9.85 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.866 Dia x 1.811 L (22.00mm x 46.00mm) | - | PC Pins | - | General Purpose | - |
|
R76MW468050H3JCAP FILM 6.8UF 5% 400VDC RADIAL |
1,702 | 10.13 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 6.8 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 0.6 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 1.776 (45.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
C4ATGBW5150A3LJCAP FILM 15UF 5% 450VDC RADIAL |
1,401 | 10.15 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 15 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
940C16P47K-FCAP FILM 0.47UF 1.6KVDC AXIAL |
4,903 | 10.20 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.47 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.083 Dia x 1.811 L (27.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
C274ACF5150WA0JCAP FILM 15UF 5% 470VAC RADIAL |
3,313 | 10.21 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575 Dia (40.00mm) | 2.894 (73.50mm) | Wire Leads | - | Motor Run; Motor Start | - |
|

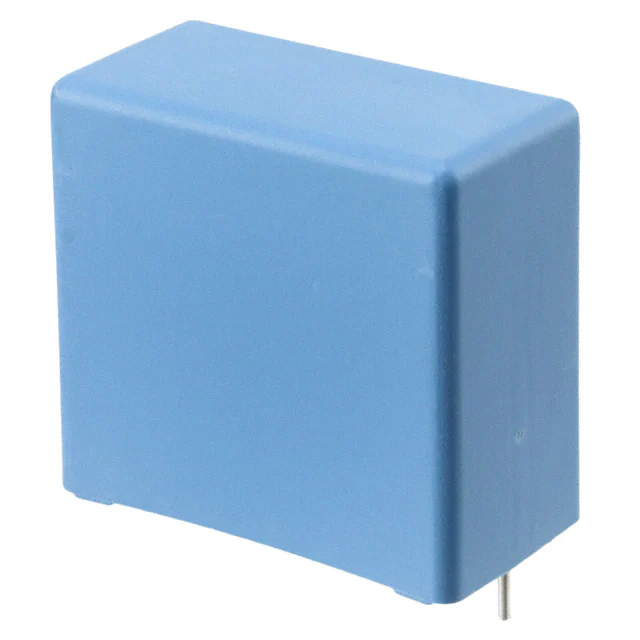

PHE450MR7270JR06L2CAP FILM 2.7UF 5% 630VDC RADIAL |
4,855 | 10.25 |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 2.7 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614 L x 0.827 W (41.00mm x 21.00mm) | 1.496 (38.00mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching | - |
|
SMR15335J50B06L16.5CBULKCAP FILM 3.3UF 5% 50VDC RADIAL |
1,335 | 10.28 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 3.3 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
C4ATHBW4900A3LJCAP FILM 9UF 5% 600VDC RADIAL |
3,114 | 10.30 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 9 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|

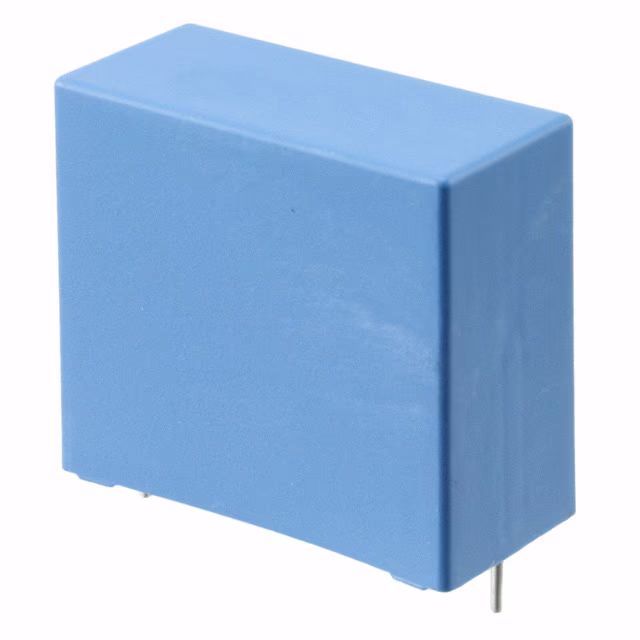

PHE450MR7220JR06L2CAP FILM 2.2UF 5% 630VDC RADIAL |
2,563 | 10.32 |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 2.2 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614 L x 0.748 W (41.00mm x 19.00mm) | 1.417 (36.00mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching | - |
|
FFB24D0476K--CAP FILM 47UF 10% 75VDC RADIAL |
2,474 | 10.54 |
RFQ |
Datasheet |
Radial | Bulk | FFB | Active | 47 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224 L x 0.575 W (31.10mm x 14.60mm) | 1.012 (25.70mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|

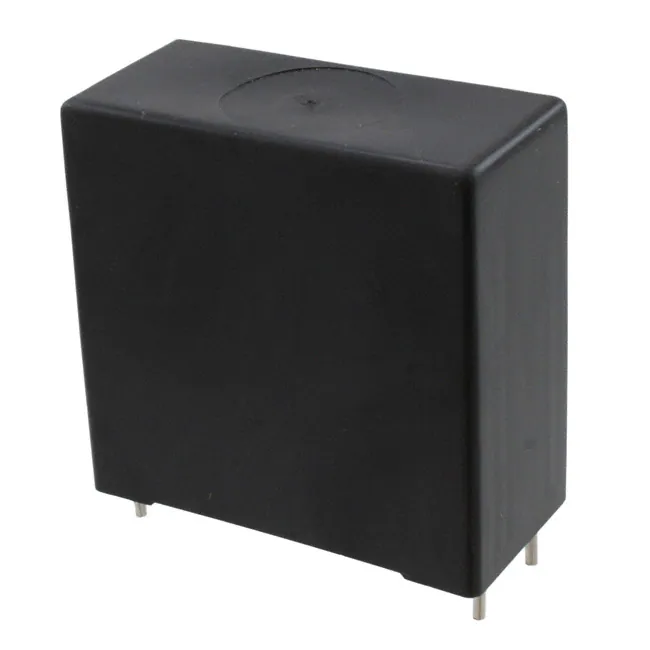

BLC080J112B4ACAP FILM 8UF 5% 1.1KVDC RADIAL |
3,683 | 10.67 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | BLC | Active | 8 µF | ±5% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -45°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
MPX256K305RCAP FILM 25UF 10% 305VAC RAD |
1,992 | 10.74 |
RFQ |
Datasheet |
Radial | Tray | MPX | Active | 25 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.791 (45.50mm) | PC Pins | 2.067 (52.50mm) | EMI, RFI Suppression | X2 |
|

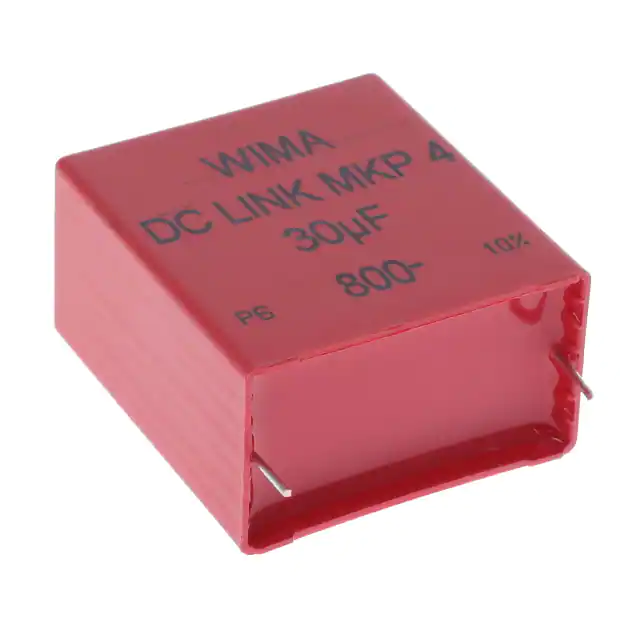

DCP4L053007HD2KSSDCAP FILM 30UF 10% 800VDC RAD |
1,911 | 10.78 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 4.1 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.791 (45.50mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
106PHC600KCAP FILM 10UF 10% 600VDC AXIAL |
2,582 | 10.79 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 10 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 1.378 Dia x 2.165 L (35.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4GADUD5300AA3JCAP FILM 30UF 5% 250VDC AXIAL |
2,177 | 10.92 |
RFQ |
Datasheet |
Axial | Bulk | C4G | Active | 30 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.142 Dia x 2.283 L (29.00mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
C4ASPBW3470A3GJCAP FILM 0.47UF 5% 1.2KVDC RAD |
2,139 | 11.00 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.457 (37.00mm) | PC Pins | 1.083 (27.50mm) | Snubber | - |
|

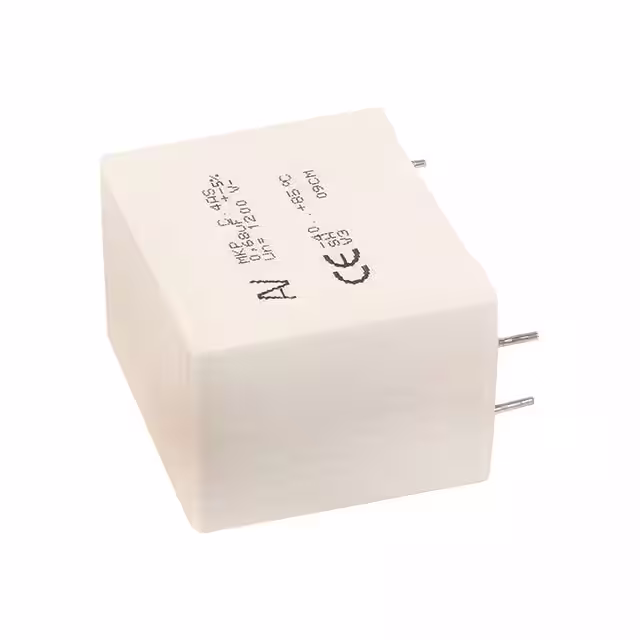

C4ASPBW4100A3FJCAP FILM 1UF 5% 1.2KVDC RADIAL |
3,164 | 11.12 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | PC Pins | 1.476 (37.50mm) | Snubber | - |
|

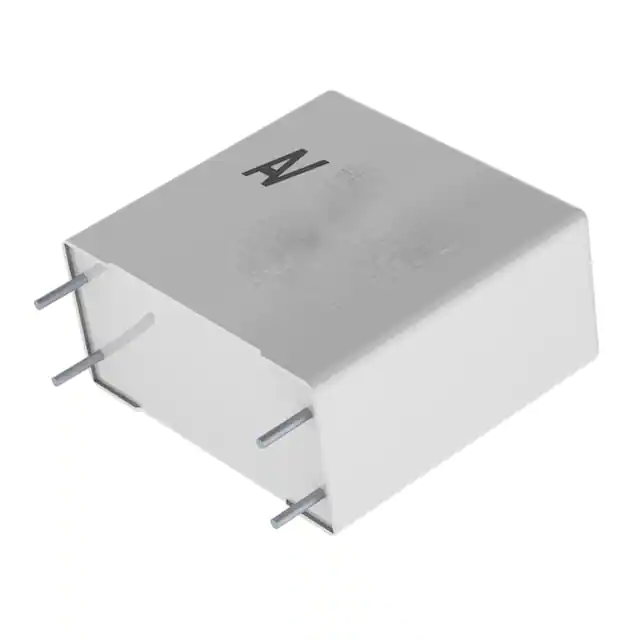

C4AEQBW5100A3JJCAP FILM 10UF 5% 1.1KVDC RADIAL |
4,403 | 11.12 |
RFQ |
Datasheet |
Radial | Box | C4AE | Active | 10 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.465 (37.20mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
